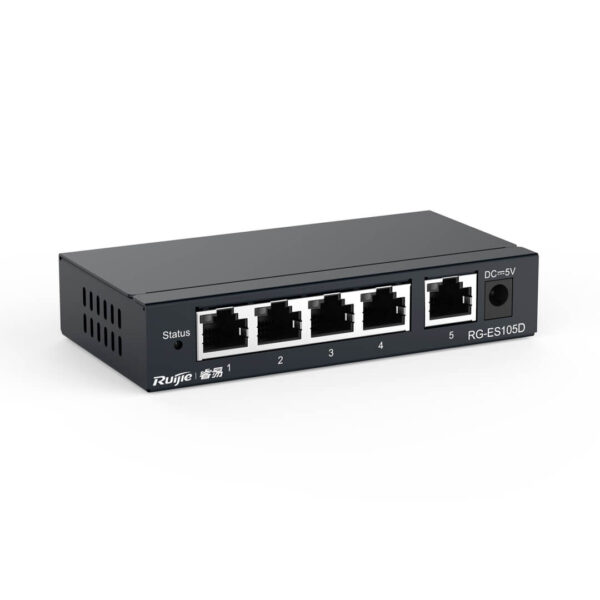

Reyee RG-ES105D
Ruijie Reyee RG-ES105D
5-Port 10/100Mbps Unmanaged Switch
- 5×10/100Mbps RJ45 ports with Auto Negotiation
- Plug & Play installation with no configuration required
- Visible on Ruijie Cloud for network monitoring
- 1Gbps switching capacity with 0.74Mpps forwarding rate
- Fanless, energy-efficient design for silent operation
- Ideal for homes, offices, retail shops and CCTV networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES105D
| Features | Description |
|---|---|
| Device Type | 5-Port 10/100Mbps Unmanaged Desktop Switch |
| Ports | 5 × 10/100BASE-T RJ45 Ports |
| Switching Capacity | 1Gbps |
| Forwarding Rate | 0.74Mpps |
| MAC Address Table | 1K Entries |
| Management | Unmanaged (Plug & Play) |
| Surge Protection | 6kV Port Surge Protection |
| Cooling | Fanless Design |
| Power Supply | 5V DC / 1A Power Adapter |
| Application | Home, Office, Retail Shop and CCTV Network |
| Switch Type | Layer 2 Unmanaged Switch |
|---|---|
| Network Ports | 5 × 10/100Mbps RJ45 |
| Transmission Mode | Store-and-Forward |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Mounting | Desktop Installation |
| Housing | Metal Enclosure |
| SMART FEATURES | |
|---|---|
| Plug & Play | No Configuration Required for Quick Installation |
| Cloud Visibility | Visible on Ruijie Cloud App for Device Monitoring |
| Large Buffer | Smooth Data Transmission and Reduced Packet Loss |
| Energy Saving | Low Power Consumption with Fanless Silent Design |
| Network Protection | 6kV Port Surge Protection for Improved Reliability |
| GENERAL | |
|---|---|
| Power Consumption | Max. 5W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions | 119 × 75 × 24mm |
| Warranty | 3 Years |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Ruijie Reyee RG-ES105D is a 5-port 10/100Mbps unmanaged desktop switch featuring plug-and-play installation, metal housing, fanless operation, 6kV surge protection, and cloud visibility through the Ruijie Cloud App. It is ideal for home, office, retail, and small CCTV network deployments.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
