Product Specification

Overview

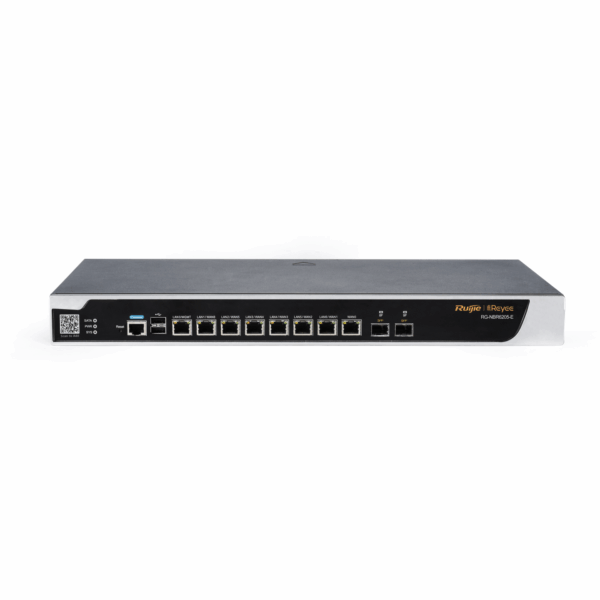

Reyee RG-NBR6205-E High-performance Security Router รองรับ Loadbalance 6 WAN,  IPSec VPN/ L2TP with IPSecs/ PPTP, รองรับ Internet Throughput 1.2Gbps, รองรับ Users 500 Concurrent

รองรับ Harddisk ขนาด 1TB (Not Include)

รองรับการทำ Captive Portal ผ่าน Ruijie Cloud

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

WAN Port

1 x 10/100/1000 Base-T port

LAN Port

1 x 10/100/1000 Base-T port

LAN/WAN Switchable Port

6 x 10/100/1000 Base-T ports
2 x 1GBase-X SFP ports

Throughput

1.5 Gbps

Client (Recommended)

500

CPU RG-NBR6205-E

2 Cores, 1.2 GHz

SDRAM/RAM

2 GB

Flash Memory

8 MB

Hard Disk Drive

1 TB (Not delivered with the router, can be added)

LED

1 x System Status LED
1 x Power Status LED
1 x SATA LED

Button

1 x Power button

Dimensions (W x D x H)

440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87 in., without rubber pads)

Mounting Method

Rack-mounted

Rack Size

1U 19-inch Rack-mounted

Fan

2

Operating Temperature

0ºC to 45ºC (32°F to 113°F)

Operating Humidity

10% to 90% RH (non-condensing)

Max Managed Access Points

32 Access points or 64 wall-mounted access points

PPPoE Server Accounts

64

Internet Access Mode

PPPoE Client
DHCP Client
Static IP

Access Mode Auto-Identification

Support

WAN Address Collision Avoidance

Support

VLAN

Support

IPv6

Support

SNMP

Support

Port Isolation

Support

Port Mirroring

Support

LAN Port Link Aggregation

Support

AC Mode

Support

Application Identification

Support

Application Priority

Support

Behavior Management

App Block (Time/IP-based Policy)
Website Filtering
Blacklist/Whitelist

Flow Control

User Flow Control Policies
IP-based Automatic Bandwidth Assignment
VPN Flow Control

Local Authentication

Portal Authentication
Password Authentication
Voucher Authentication

L2TP VPN

Support

PPTP VPN

Support

IPsec VPN

Support

L2TP/PPTP Tunnels

400

L2TP/IPsec VPN Performance

400 Mbps

Static Routing

Support

RIP/RIPng

Support

OSPFv2

Support

OSPFv3

Support

Equal-Cost Multi-Path Routing

Support

Policy-Based Routing

Support

Active/Standby Switchover of Ports

Support

WAN Load Balancing

Support

PPPoE Client

Support

PPPoE Server

Support

DHCP Server

Support

DHCP Snooping

Support

DNS Client

Support

DNS Server

Support

DNS Proxy

Support

FTP Client

Support

FTP Server

Support

TFTP Client

Support

NTP Client

Support

DDNS

Cloud DNS

NAT

Support

SNMP

Support

Ruijie Cloud

Support

ACL

Support

Time-based Extended ACL

Support

SYN Flood Attack Guard

Support

UDP Flood Attack Guard

Support

ICMP Flood Attack Guard

Support

ICMP Redirection Attack Guard

Support

ICMP Unreachable Packet Attack Guard

Support

Fraggle Attack Guard

Support

Overlength ICMP Packet Attack Prevention

Support

Winnuke Attack Guard

Support

IP-based Security Domain Division

Support

Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port

Support

Cloud Management

Support

App Management

Support

App Upgrade

Support

App Restart

Support

ประกัน RG-NBR6205-E

3 ปี
