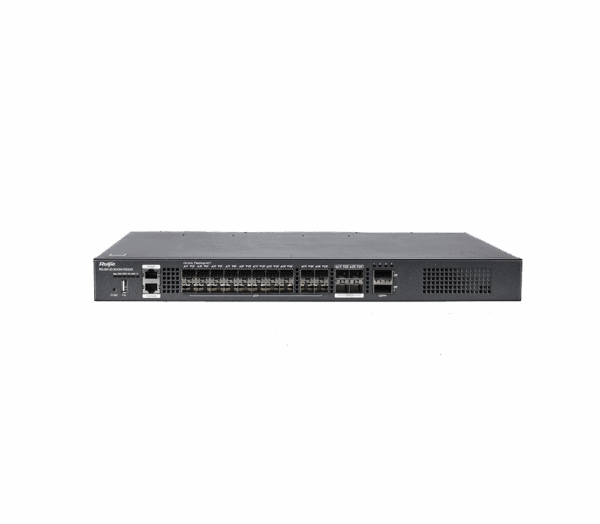

Specifications Ruijie RG-S6120-20XS4VS2QXS
| Features | Specifications |
|---|---|
Port Specifications |
|
| 10G SFP+ Ports | 20 × 1GE/2.5GE/10GE SFP+ ports |
| 25G SFP28 Ports | 4 × 10GE/25GE SFP28 ports |
| 40G QSFP+ Ports | 2 × 40GE QSFP+ ports |
| Maximum 10G Ports | Up to 32 × 10GE ports |
| Management Ports | 1 × RJ45 MGMT port and 1 × RJ45 console port |
| USB | 1 × USB 2.0 port |
Performance |
|
| Switching Capacity | 912 Gbps |
| Packet Forwarding Rate | 678 Mpps |
| Switch Buffer | 4 MB |
| MAC Address Table | Up to 32,768 entries |
| IPv4 Unicast Routes | Up to 16,000 entries |
| IPv6 Unicast Routes | Up to 8,000 entries |
| ARP Entries | Up to 160,000 entries |
Layer 3 Features |
|
| Layer 3 Routing | Supported |
| VLAN | Up to 4,096 VLANs; IEEE 802.1Q, Port-based VLAN, Private VLAN, GVRP and Super VLAN |
| QinQ | Basic QinQ |
| Link Aggregation | LACP (IEEE 802.3ad) |
| Spanning Tree | STP, RSTP and MSTP |
| MST Instances | Up to 64 |
| DHCP | DHCP Server, DHCP Client, DHCP Snooping and DHCP Relay |
| ACL | Up to 2,500 ACEs |
| Port Mirroring | Flow-based, many-to-one, one-to-many and RSPAN mirroring |
Virtualization and Reliability |
|
| VSU Virtualization | Supported |
| Maximum VSU Members | Up to 4 switches |
| VSU Bandwidth | Up to 200 Gbps |
| Power Module | 2 × Pluggable power module slots with 1+1 redundancy |
| Power Module Hot Swap | Supported |
| Fan Module | 2 × Intelligent fan modules |
| Boot Redundancy | 1+1 hardware-level boot redundancy |
Security and Monitoring |
|
| CPU Protection | CPP and NFPP |
| Power Monitoring | Power supply status monitoring and failure alarm |
| Fan Monitoring | Automatic fan speed adjustment and fan failure alarm |
| Temperature Monitoring | Temperature monitoring and over-temperature alarm |
Hardware |
|
| CPU | Single-core CPU, 1.25 GHz |
| Memory | 1 GB |
| Flash Memory | 1 GB |
| BootROM | 16 MB |
| Cooling | Fan cooling with front-to-rear airflow |
| Maximum Power Consumption | 85 W |
Power and Environmental |
|
| Power Supply | 2 × Pluggable power modules; 1+1 redundancy |
| AC Power Module | RG-PA150IB-F, 100–240V AC, 50/60Hz, 150W |
| DC Power Module | RG-PD150IB-F, -48V to -60V DC, 150W |
| Power Module Hot Swap | Supported |
| Surge Protection | MGMT port: 4 kV; service ports: 6 kV |
Note: The Ruijie RG-S6120-20XS4VS2QXS is a Layer 3 all-optical core and aggregation switch designed for high-performance enterprise networks. It provides 20 × 1GE/2.5GE/10GE SFP+ ports, 4 × 10GE/25GE SFP28 ports and 2 × 40GE QSFP+ ports, with support for up to 32 × 10GE ports. The switch delivers high switching and forwarding performance and supports Layer 3 routing, VLAN, QinQ, LACP, STP/RSTP/MSTP, DHCP, ACL, port mirroring and VSU virtualization. It also features redundant hot-swappable power modules, intelligent fan modules, hardware-level boot redundancy and network security mechanisms for reliable core and aggregation network deployments.
