RG-ANT13-360

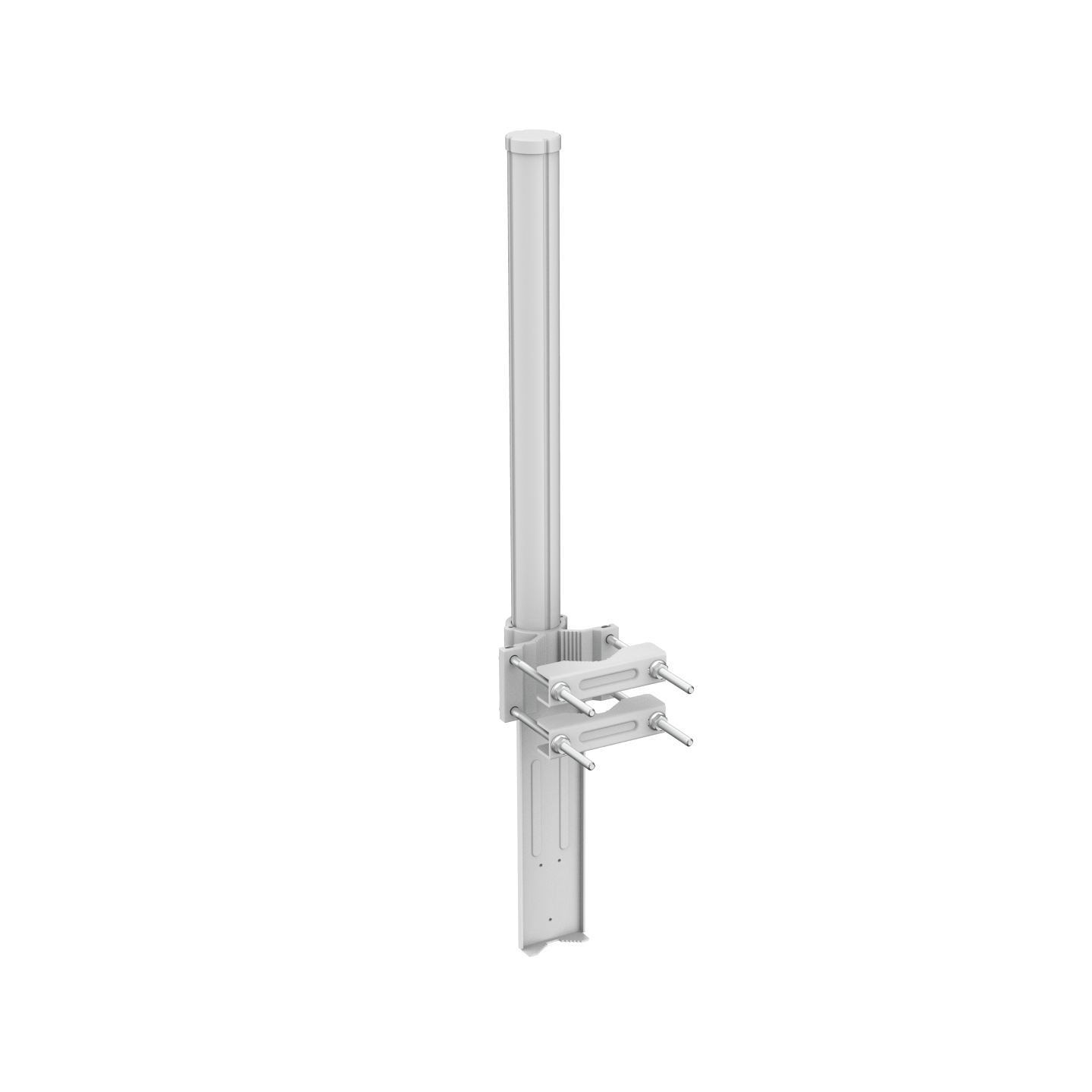

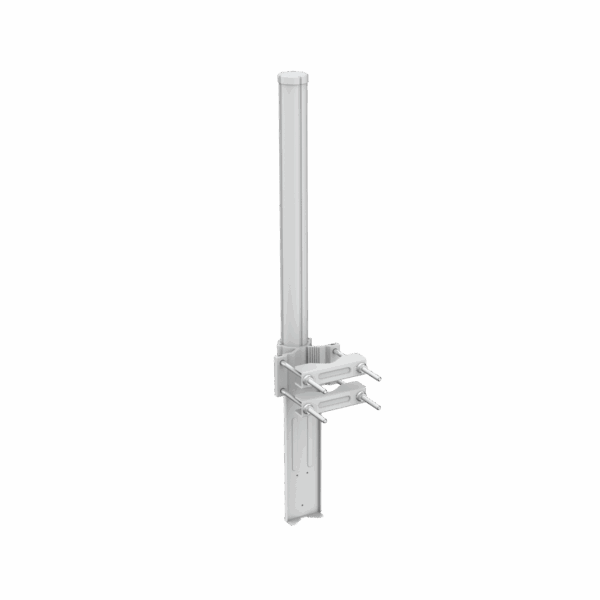

Ruijie Reyee RG-ANT13-360

5GHz 13dBi Omnidirectional Antenna

5GHz 13dBi external omnidirectional antenna for RG-AirMetro series
360° horizontal coverage with 7° vertical beamwidth
Supports RG-AirMetro550G-B for PTMP wireless bridge deployment
Provides up to 2km coverage for outdoor wireless networks
IP55 weatherproof design with -40°C to 80°C operating temperature
Ideal for WISP, CCTV, factory and outdoor network applications

หมวดหมู่: Ruijie, Wireless Controller ป้ายกำกับ: Reyee

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications Ruijie Reyee RG-ANT13-360

Features	Description
Device Type	5GHz 360° Omnidirectional Antenna for RG-AirMetro Series Wireless Bridge
Antenna Type	External Omnidirectional Antenna
Frequency Range	5.15GHz – 5.85GHz
Antenna Gain	13dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	7°
Polarization	Dual Polarization (Horizontal and Vertical)
Application Distance	Up to 2km PTMP Wireless Coverage
Compatible Devices	Ruijie Reyee RG-AirMetro550G-B Wireless Bridge Base Station
Protection Rating	IP55 Weatherproof

Antenna Application	Point-to-Multipoint (PTMP) Wireless Bridge Deployment
Connector Type	External Antenna Interface
Wind Resistance	Up to 220.32 km/h (137 mph)
Installation	Pole Mount
Operating Temperature	-40°C to +80°C
Operating Humidity	5% to 95% RH (Non-Condensing)

SMART FEATURES
Omnidirectional Coverage	Provides 360° Horizontal Coverage for Multi-Client Wireless Bridge Connections
PTMP Support	Designed for RG-AirMetro550G-B Base Station Supporting Multiple CPE Connections
Long Distance Wireless	Supports Outdoor Wireless Coverage up to 2km When Paired with Compatible CPE Devices
Outdoor Design	IP55 Protection for Stable Operation in Outdoor Environments

GENERAL
Dimensions	120 × 82 × 769mm (Without Mounting Bracket)
Weight	Approximately 2.35kg
MTBF	400,000 Hours
Mounting	Pole Mount
Warranty	3 Years

Note: The RG-ANT13-360 is a 5GHz 13dBi omnidirectional antenna designed for the Ruijie Reyee RG-AirMetro series wireless bridge. It provides 360° horizontal coverage, 7° vertical beamwidth, and supports PTMP deployments with coverage up to 2km. It is suitable for WISP, CCTV, factories, towns, and outdoor wireless network applications.

Important: The Ruijie Reyee RG-ANT13-360 is a 5GHz external omnidirectional antenna featuring 13dBi gain, 360° horizontal coverage, 7° vertical beamwidth, IP55 weatherproof protection, support for RG-AirMetro550G-B base station, and PTMP wireless coverage up to 2km. It is ideal for WISP, CCTV, factory, city road, and outdoor wireless bridge deployments.
