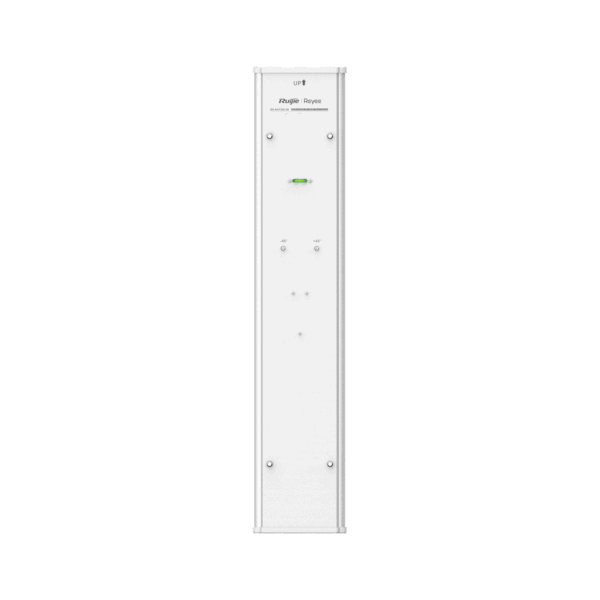

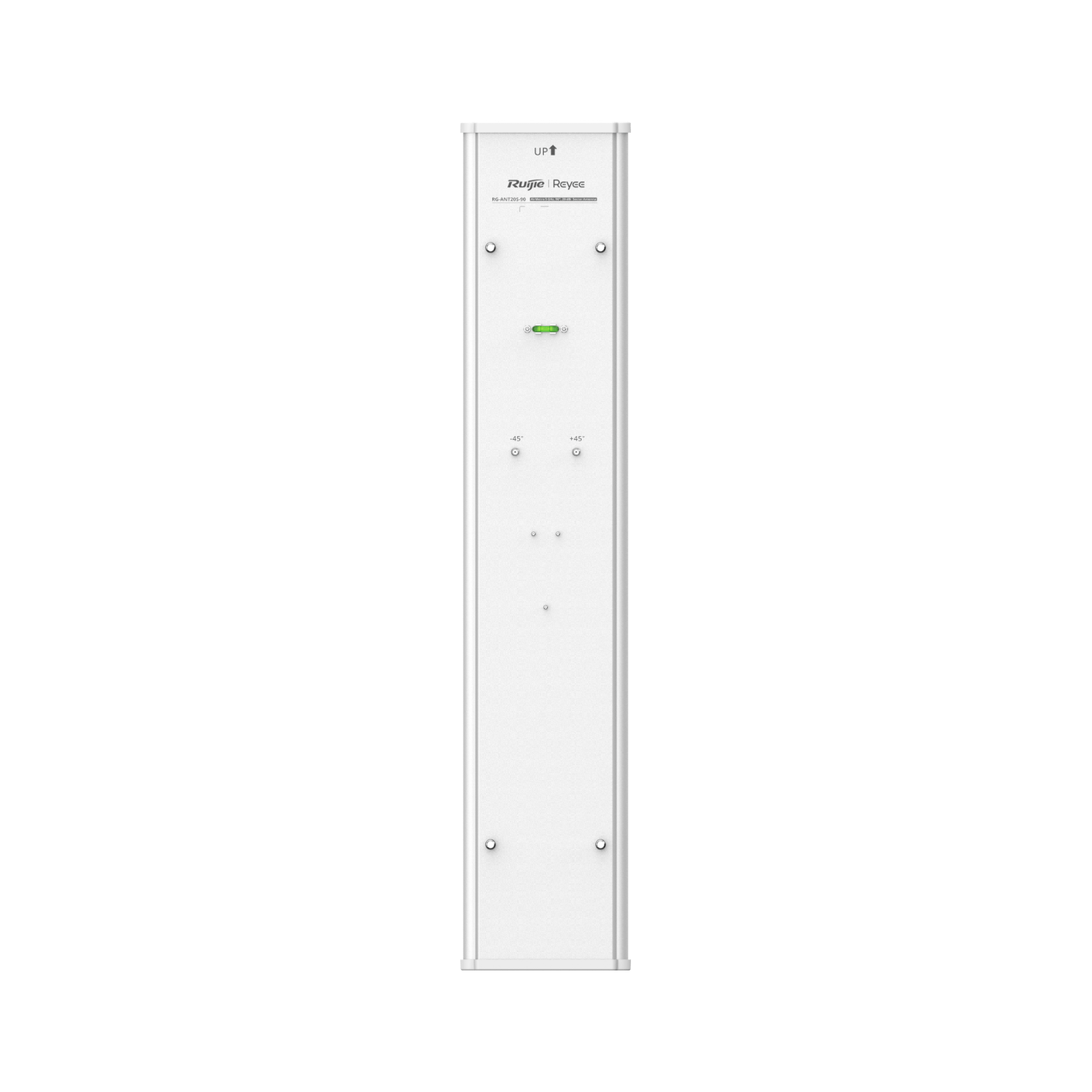

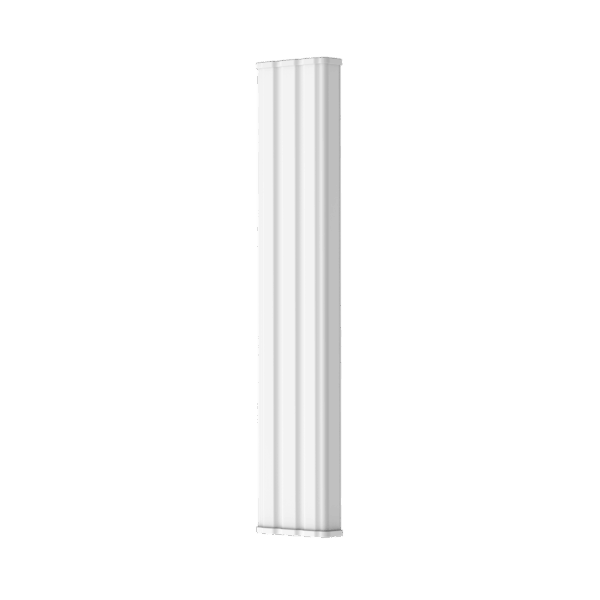

RG-ANT20S-90

Ruijie Reyee RG-ANT20S-90

5GHz 20dBi 90° Sector Antenna

5GHz 20dBi sector antenna for RG-AirMetro wireless bridge series
90° horizontal and 7° vertical beamwidth coverage
Supports RG-AirMetro550G-B for PTMP wireless network deployment
Provides up to 10km wireless transmission distance
IP55 weatherproof design with 6kV surge protection
Ideal for WISP, CCTV, factories, towns and outdoor wireless networks

หมวดหมู่: Ruijie, Wireless Controller, อุปกรณ์เน็ตเวิร์ค (Network) ป้ายกำกับ: Reyee

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications Ruijie Reyee RG-ANT20S-90

Features	Description
Device Type	5GHz 90° Sector Antenna for RG-AirMetro Series Wireless Bridge
Antenna Type	External Sector Directional Antenna
Frequency Range	5GHz Band
Antenna Gain	20dBi
Horizontal Beamwidth	90°
Vertical Beamwidth	7°
Polarization	Dual Polarization
Maximum Distance	Up to 10km Wireless Coverage
Compatible Devices	Ruijie Reyee RG-AirMetro550G-B PTMP Base Station
Protection Rating	IP55 Weatherproof

Antenna Application	Point-to-Multipoint (PTMP) Outdoor Wireless Bridge Deployment
Beam Direction	Sector Coverage 90°
Connector Type	External Antenna Interface
Wind Resistance	Up to 220.32 km/h (137 mph)
Installation	Pole Mount
Operating Temperature	-40°C to +80°C

SMART FEATURES
Sector Coverage	Provides 90° Directional Coverage for High-Capacity PTMP Wireless Networks
PTMP Support	Designed for RG-AirMetro550G-B Base Station Supporting Multiple CPE Connections
Long Distance Wireless	Supports Outdoor Wireless Coverage Up to 10km with Compatible CPE Devices
High Gain Antenna	20dBi High Gain Improves Signal Strength and Long-Distance Transmission Performance
Outdoor Design	IP55 Protection for Reliable Operation in Harsh Outdoor Environments

GENERAL
Dimensions	139.9 × 48.9 × 694mm (Without Mounting Bracket)
Weight	Approximately 2.5kg
MTBF	400,000 Hours
Mounting	Pole Mount
Warranty	3 Years

Note: The RG-ANT20S-90 is a 5GHz 20dBi sector antenna designed for the Ruijie Reyee RG-AirMetro series wireless bridge. It provides 90° horizontal coverage, 7° vertical beamwidth, and supports PTMP wireless deployments with transmission distances up to 10km. It is suitable for WISP, CCTV, factories, city roads, and outdoor wireless network applications.

Important: The Ruijie Reyee RG-ANT20S-90 is a 5GHz external sector antenna featuring 20dBi gain, 90° horizontal coverage, 7° vertical beamwidth, IP55 weatherproof protection, wind resistance up to 220.32 km/h, and compatibility with the RG-AirMetro550G-B PTMP base station. It is ideal for long-distance WISP, CCTV, factory, campus, and outdoor wireless bridge deployments requiring high-gain sector coverage up to 10km.
