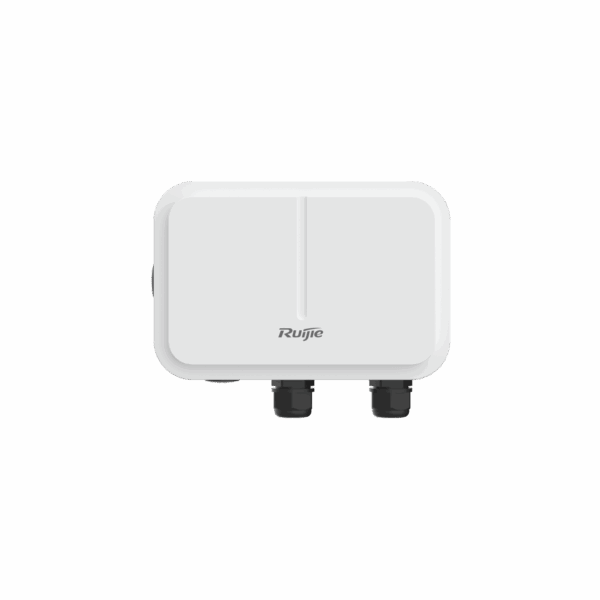

Specifications Ruijie RG-AP680-L
| Features | Specifications |
|---|---|
Wireless |
|
| Product Type | Wi-Fi 6 Dual-Radio Outdoor Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Design | Dual-Radio, 4 Spatial Streams |
| 2.4GHz Data Rate | Up to 574Mbps |
| 5GHz Data Rate | Up to 2.402Gbps |
| Combined Data Rate | Up to 2.976Gbps |
| MIMO | 2×2 MU-MIMO on 2.4GHz and 5GHz |
| Wireless Technologies | OFDMA, MU-MIMO, 1024-QAM, WPA3 |
Antenna |
|
| Antenna Type | Built-in Omnidirectional Antennas |
| Antenna Coverage | 360° Omnidirectional Coverage |
| Maximum Transmit Power | 28dBm |
| Maximum Antenna Gain | 2.4GHz: 2.9dBi; 5GHz: 4.9dBi |
| Coverage Range | Up to 300m radius under field-test conditions |
Network Interfaces |
|
| Ethernet Port | 1 × 10/100/1000BASE-T |
| SFP Port | 1 × 1GE SFP |
| Console Port | 1 × RJ45 Console Port |
| Bluetooth | Bluetooth 5.0 iBeacon |
Capacity and Management |
|
| Maximum Concurrent Clients | Up to 1024 |
| Recommended Concurrent Clients | Up to 120 |
| Maximum SSIDs | 32 SSIDs, up to 16 per radio |
| Management | Ruijie Cloud, Fat AP, Fit AP and Cloud Management |
| Wireless Management | Remote Monitoring, Wi-Fi Management and Intelligent Optimization |
Power |
|
| Power Supply | 48V DC / 0.35A or PoE/PoE+ IEEE 802.3af/at |
| Maximum Power Consumption | 12.95W |
Protection and Environmental |
|
| Protection Rating | IP68 |
| Lightning Protection | 6kV Surge Protection |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 0% to 100% RH, non-condensing |
| Corrosion Protection | Designed for outdoor environments with salt spray and humid conditions |
Physical |
|
| Mounting | Ceiling / Pole Mount |
| Dimensions | 251 × 168 × 64mm |
| Weight | Main Unit: 1.12kg; Mounting Bracket: 0.9kg |
| LED Indicators | 1 × Multi-color System Status LED, 3 × RSSI LEDs |
| Reset Button | Supported |
Note: The Ruijie RG-AP680-L is a Wi-Fi 6 dual-radio outdoor access point with a combined wireless data rate of up to 2.976Gbps. It features built-in omnidirectional antennas, 360° coverage, 2×2 MU-MIMO, OFDMA, WPA3, 1 Gigabit Ethernet port, 1 Gigabit SFP port, Bluetooth 5.0, Ruijie Cloud management, IP68 protection, 6kV lightning protection, and a wide operating temperature range of -40°C to +65°C. It supports PoE/PoE+ or 48V DC power.
