| Features |
Description |
| Product Type |
Outdoor Wi-Fi 6 Dual-Radio Access Point |
| Wi-Fi Standard |
IEEE 802.11a/b/g/n/ac/ax |
| Radio Design |
Dual-Radio, 8 Spatial Streams |
| Maximum Data Rate |
5.951 Gbps |
| Antenna Type |
Built-in Omnidirectional Antennas |
| Operating Mode |
Fat / Fit / Cloud Mode |
| IP Rating |
IP68 |
| WIRELESS |
| Radio 1 |
2.4 GHz, 4×4 MU-MIMO |
| Radio 2 |
5 GHz, 4×4 MU-MIMO |
| 2.4 GHz Data Rate |
Up to 1.147 Gbps |
| 5 GHz Data Rate |
Up to 4.804 Gbps |
| Combined Data Rate |
Up to 5.951 Gbps |
| Channel Bandwidth |
Up to 160 MHz |
| Wireless Technology |
OFDMA, MU-MIMO, Beamforming, 1024-QAM |
| ANTENNA |
| Antenna Type |
Built-in Omnidirectional Antennas |
| 2.4 GHz Gain |
5 dBi |
| 5 GHz Gain |
5.5 dBi |
| 2.4 GHz Maximum Transmit Power |
30 dBm |
| 5 GHz Maximum Transmit Power |
29 dBm |
| NETWORK & PORTS |
| 10G Optical Port |
1 × 10GE SFP+ Port, Compatible with 1GE and 2.5GE Modules |
| Multi-Gigabit Port |
1 × 100/1000/2.5G/5GBASE-T |
| IoT Port |
1 × 100/1000BASE-T with 48V / 12.95W Power Output |
| Console Port |
1 × RJ45 Console Port |
| Management |
Ruijie Cloud / Web / CLI |
| Maximum Associated Clients |
Up to 1,024 |
| Recommended Active Devices |
Up to 200 per AP |
| BLUETOOTH & GPS |
| Bluetooth |
Bluetooth 5.1 |
| Bluetooth Antenna |
Integrated Omnidirectional Antenna |
| Bluetooth Antenna Gain |
2 dBi |
| Bluetooth Transmit Power |
10 dBm |
| GPS Antenna |
Integrated GPS Antenna |
| POWER |
| PoE Input |
IEEE 802.3af / 802.3at / 802.3bt |
| PoE Type |
PoE / PoE+ / PoE++ |
| Maximum Power Consumption |
40W |
| Power Consumption with 802.3af |
12.95W |
| Power Consumption with 802.3at |
25W |
| Power Consumption with 802.3bt |
40W |
| PoE Passthrough |
48V / 12.95W to IoT Device when Powered by 802.3bt |
| SECURITY & MANAGEMENT |
| Authentication |
PSK, Web, 802.1X, RADIUS, WPA, WPA2 and WPA3 |
| Encryption |
WEP, WPA-Personal, WPA-Enterprise, WPA2 and WPA3 |
| SSID |
Up to 32 BSSIDs |
| Wireless Roaming |
Layer 2 and Layer 3 Roaming |
| Cloud Management |
Ruijie Cloud |
| Management Protocols |
Console, Telnet, SSH, SNMP and TFTP |
| ENVIRONMENT & PROTECTION |
| Operating Temperature |
-40°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
0% to 100% RH, Non-Condensing |
| IP Rating |
IP68 |
| Surge Protection |
6 kV |
| Anti-Corrosion |
EN300 0019 Class C |
| MTBF |
200,000 Hours |
| PHYSICAL |
| Dimensions (W × D × H) |
300 × 300 × 94 mm |
| Weight |
3.3 kg |
| Mounting |
Wall / Pole Mount |
| Mounting Bracket |
Included |

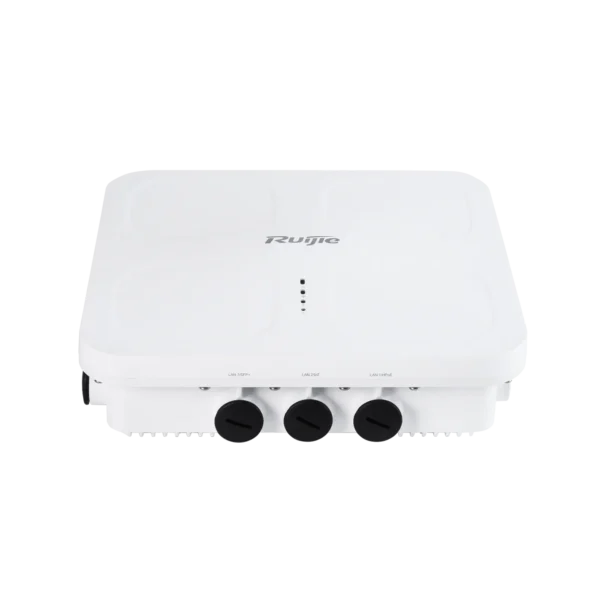

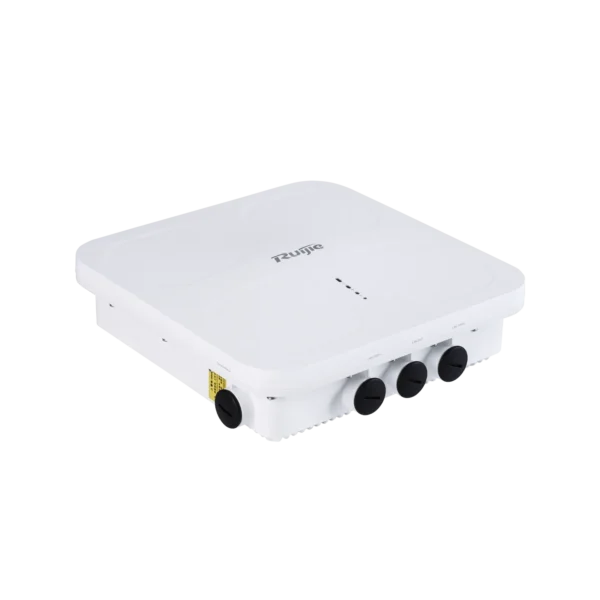

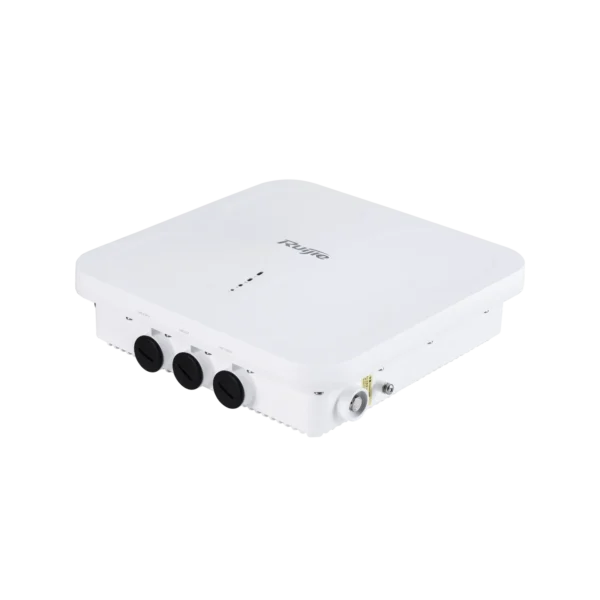

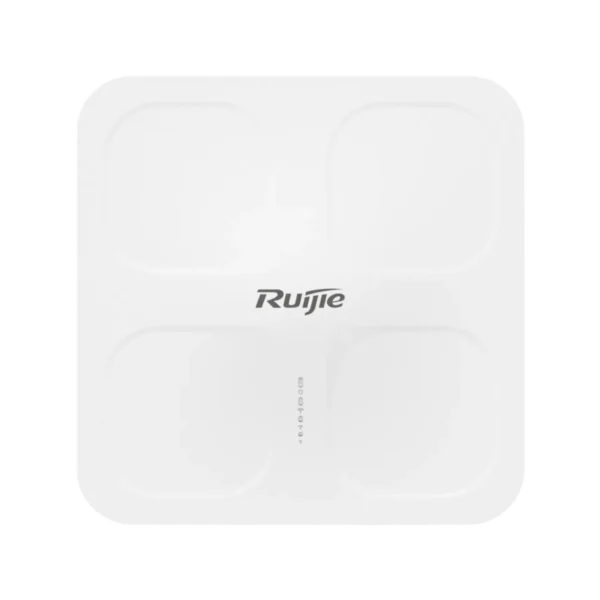

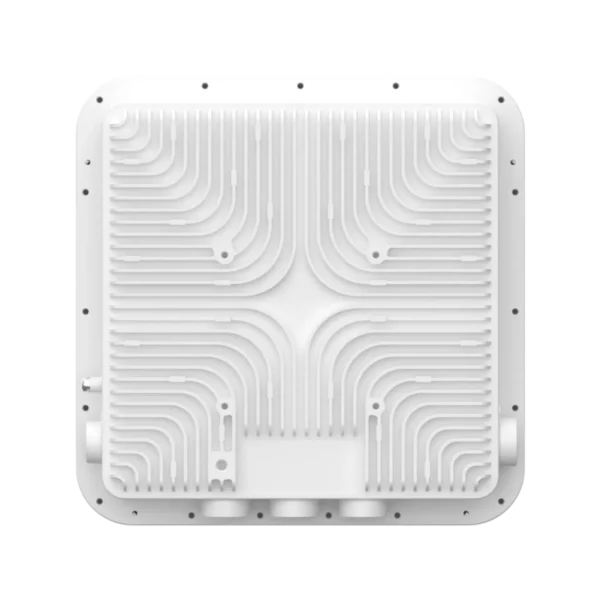

Note: The RG-AP680P-L is a high-performance outdoor Wi-Fi 6 access point with 4×4 MU-MIMO on both 2.4 GHz and 5 GHz radios, 10G optical connectivity and multi-gigabit Ethernet.
Important: Maximum wireless performance depends on client capability, channel width, RF environment and local regulatory limits. 802.3bt PoE++ is recommended for full performance and PoE passthrough functionality.
