| Features |
Description |
| Product Type |
Wi-Fi 6E Indoor Tri-Radio Access Point |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax |
| Radio Design |
Tri-Radio: 2.4GHz + 5GHz + 6GHz |
| Maximum Data Rate |
7.780Gbps |
| Spatial Streams |
Up to 8 Spatial Streams |
| Antennas |
Built-in Omnidirectional Antennas |
| Management |
Ruijie Cloud / Web / Local Management |
| PoE |
IEEE 802.3af/at/bt |
| Bluetooth |
Bluetooth 5.1 |
| Maximum Power Consumption |
40W |
| WIRELESS |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax |
| Radio Design |
Tri-Radio |
| 2.4GHz Radio |
2 × 2:2 MU-MIMO, Up to 574Mbps |
| 5GHz Radio |
2 × 2:2 MU-MIMO, Up to 2.402Gbps |
| 6GHz Radio |
4 × 4:4 MU-MIMO, Up to 4.804Gbps |
| Combined Data Rate |
Up to 7.780Gbps |
| Spatial Streams |
Up to 8 Spatial Streams |
| Channel Width |
Up to 160MHz |
| OFDMA |
Supported |
| MU-MIMO |
Supported |
| BSS Coloring |
Supported |
| ANTENNA |
| Antenna Type |
Built-in Omnidirectional Antennas |
| 2.4GHz Antennas |
2 × Internal Antennas |
| 5GHz Antennas |
2 × Internal Antennas |
| 6GHz Antennas |
4 × Internal Antennas |
| Maximum Gain |
5.9dBi @ 2.4GHz / 6.2dBi @ 5GHz |

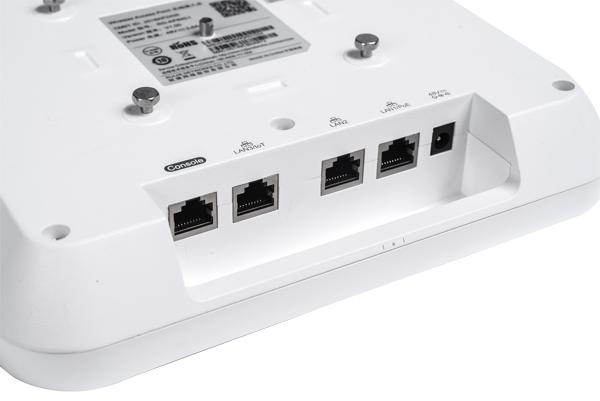

| NETWORK INTERFACE |
| Main Ethernet Port |
1 × 100/1000/2500/5000BASE-T RJ45 |
| Optical / Ethernet Combo Port |
1 × 5GE SFP/RJ45 Combo Port |
| Management Port |
1 × 10/100/1000BASE-T RJ45 |
| Console Port |
1 × RJ45 Console Port |
| USB |
1 × USB 3.0 Type-A |
| PERFORMANCE |
| Maximum Wireless Data Rate |
7.780Gbps |
| Maximum Concurrent Clients |
Up to 1,536 STAs |
| Clients per Radio |
Up to 512 STAs per Radio |
| Maximum BSSIDs |
45 |
| BSSIDs per Radio |
Up to 15 per Radio |
| Wireless Roaming |
Layer 2 / Layer 3 Roaming |
| Load Balancing |
Supported |
| WIRELESS FEATURES |
| OFDMA |
Supported |
| MU-MIMO |
Supported |
| BSS Coloring |
Supported |
| Target Wake Time |
Supported |
| 802.11k/v/r |
Supported |
| Intelligent Roaming |
Supported |
| Bandwidth Limiting |
STA / SSID / AP Based |
| SSID Hiding |
Supported |
| SECURITY |
| Security Standards |
WPA2 / WPA3 |
| Enhanced Open |
Supported |
| 802.1X |
Supported |
| UPSK |
Supported |
| WLAN Security |
Encryption / Authentication / Access Control |
| BLUETOOTH & IoT |
| Bluetooth |
Bluetooth 5.1 |
| IoT Support |
Supported |
| Wireless Location |
Supported |
| PoE Output |
Supported |
| IoT Power Output |
48V / 12.95W |
| MANAGEMENT |
| Cloud Management |
Ruijie Cloud |
| Web Management |
Supported |
| Local Management |
Supported |
| Management Modes |
Fat / Fit / Cloud |
| Management Protocols |
Console / Telnet / SSH / SNMP / TFTP |
| Wireless Controller |
Supported |
| POWER |
| Power Supply |
54VDC / 1.1A or PoE |
| PoE Standard |
IEEE 802.3af / 802.3at / 802.3bt |
| Maximum Power Consumption |
40W |
| Power Saving |
IEEE 802.3az / Target Wake Time |
| PHYSICAL & GENERAL |
| Installation |
Wall / Ceiling Mount |
| Dimensions |
230 × 230 × 51mm |
| Net Weight |
Approx. 1.0kg |
| Operating Temperature |
-10°C to +50°C |
| Operating Humidity |
5%–95% RH, Non-Condensing |

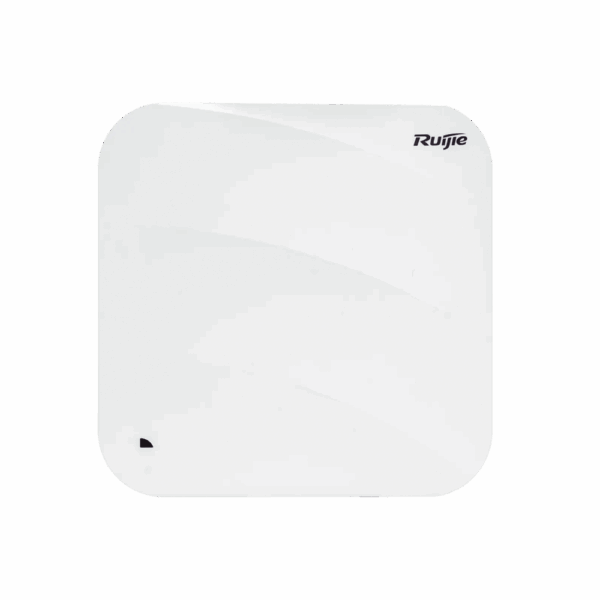

Note: The Ruijie RG-AP880-L is a Wi-Fi 6E indoor tri-radio access point featuring 2.4GHz 2×2, 5GHz 2×2 and 6GHz 4×4 MU-MIMO radios with up to 8 spatial streams and a combined peak data rate of 7.780Gbps. It supports OFDMA, MU-MIMO, BSS Coloring, 802.11k/v/r roaming, WPA3, Bluetooth 5.1 and Ruijie Cloud management.
Important: The Ruijie RG-AP880-L is a Wi-Fi 6E Tri-Radio Indoor Access Point supporting 2.4GHz + 5GHz + 6GHz, with a combined wireless rate of up to 7.780Gbps. It provides 8 spatial streams, 5GbE Ethernet connectivity, IEEE 802.3af/at/bt PoE, WPA3 security, Bluetooth 5.1 and Ruijie Cloud management.
