| Features |
Description |
| Device Type |
48-Port Layer 3 Managed Gigabit PoE+ Switch |
| Network Ports |
48 × 10/100/1000BASE-T RJ45 Ports with PoE/PoE+ |
| Uplink Ports |
4 × 1Gbps/10Gbps SFP+ Ports |
| Switching Capacity |
176 Gbps |
| Packet Forwarding Rate |
132 Mpps |
| MAC Address Table |
32K |
| PoE Standard |
IEEE 802.3af/at PoE/PoE+ |
| Maximum PoE Output |
1,480W |
| VSU |
Supported, Up to 4 Members |
| Power Supply |
2 × Modular Power Supply Slots |
| Management |
Ruijie Cloud, CLI, Web, Telnet and SNMP |
| Design |
1U Rack-Mountable |
| INTERFACE |
| Network Ports |
48 × 10/100/1000BASE-T RJ45 Ports, Supporting PoE/PoE+ |
| SFP+ Uplink Ports |
4 × 1GE/10GE SFP+ Ports |
| Console Port |
1 × RJ45 Console Port |
| Management Port |
1 × RJ45 MGMT Port |
| USB |
1 × USB Port |
| Power Module Slots |
2 × Modular Power Supply Slots |
| SWITCHING PERFORMANCE |
| Switching Capacity |
176 Gbps |
| Packet Forwarding Rate |
132 Mpps |
| MAC Address Table |
32,000 |
| ARP Table |
4,000 |
| IPv4 Unicast Routes |
8,000 |
| IPv4 Multicast Routes |
2,500 |
| IPv6 Unicast Routes |
4,000 |
| IPv6 Multicast Routes |
1,200 |
| ACL Entries |
Ingress: 3,500 / Egress: 1,500 |
| Switch Buffer |
3MB |
| VSU Members |
Up to 4 |
| VLAN Translation |
4,094 |
| POE |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Ports 1–48 |
| Maximum PoE Output per Port |
30W |
| IEEE 802.3af Output |
Up to 15.4W per Port |
| IEEE 802.3at Output |
Up to 30W per Port |
| Maximum PoE Output |
Up to 1,480W, Depending on Installed Power Modules |
| SMART FEATURES |
| Ruijie Cloud |
Cloud-Based Network Management, Monitoring and Configuration |
| VSU |
Virtual Switching Unit, Supports Up to 4 Members |
| Zero Touch Provisioning |
Supported |
| VLAN Management |
Cloud-Based VLAN Configuration and Visualization |
| Network Monitoring |
Real-Time Device Health, Traffic and Connectivity Monitoring |
| CPU Protect Policy |
Controls Packet Types and Traffic Volume Sent to the CPU |
| Network Foundation Protection Policy |
Protects the Network from Abnormal or Malicious Traffic |
| Hot-Swappable Power |
Supported |
| LAYER 3 FEATURES |
| Static Routing |
Supported |
| RIP |
Supported |
| OSPF |
Supported |
| BGP |
Supported |
| IPv4 / IPv6 |
Supported |
| Policy-Based Routing |
Supported |
| Multicast Routing |
IGMP / PIM |
| ACL |
Supported |
| SWITCHING FEATURES |
| VLAN |
IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN |
Supported |
| Private VLAN |
Supported |
| MAC VLAN |
Supported |
| Protocol VLAN |
Supported |
| QinQ |
Basic QinQ / Selective QinQ |
| STP |
STP / RSTP / MSTP |
| ERPS |
IEEE G.8032 |
| Link Aggregation |
LACP (IEEE 802.3ad) |
| LLDP |
LLDP / LLDP-MED |
| Jumbo Frame |
Up to 9216 Bytes |
| NETWORK MANAGEMENT |
| Management Methods |
Ruijie Cloud, Web, CLI, Telnet and SNMP |
| SNMP |
SNMP v1 / v2c / v3 |
| RMON |
Supported |
| Syslog |
Supported |
| DHCP |
DHCP Client / Server / Relay / Snooping |
| IPv6 |
DHCPv6 Client / Relay / Snooping |
| Configuration Backup |
Supported via USB |
| HARDWARE |
| CPU |
Dual-Core CPU, 1.2GHz per Core |
| Memory |
1GB |
| Flash Memory |
2GB |
| BootROM |
16MB |
| Switch Buffer |
3MB |
| Rack Height |
1U |
| POWER |
| Power Supply Slots |
2 × Modular Power Supply Slots |
| Supported Power Modules |
RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy |
Supported |
| Power Module Hot Swap |
Supported |
| Maximum PoE Output |
Up to 1,480W |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
442 × 420 × 43.6 mm |
| Weight |
4.6kg, Excluding Power Modules |
| Rack Installation |
19-inch Rack Mount, 1U |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |

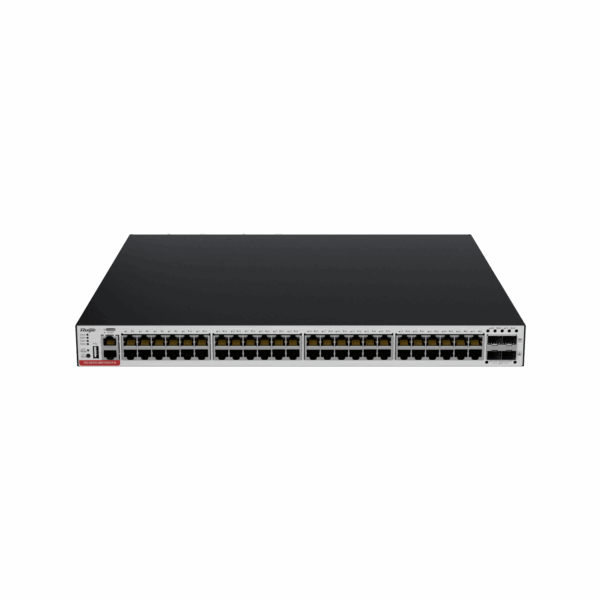

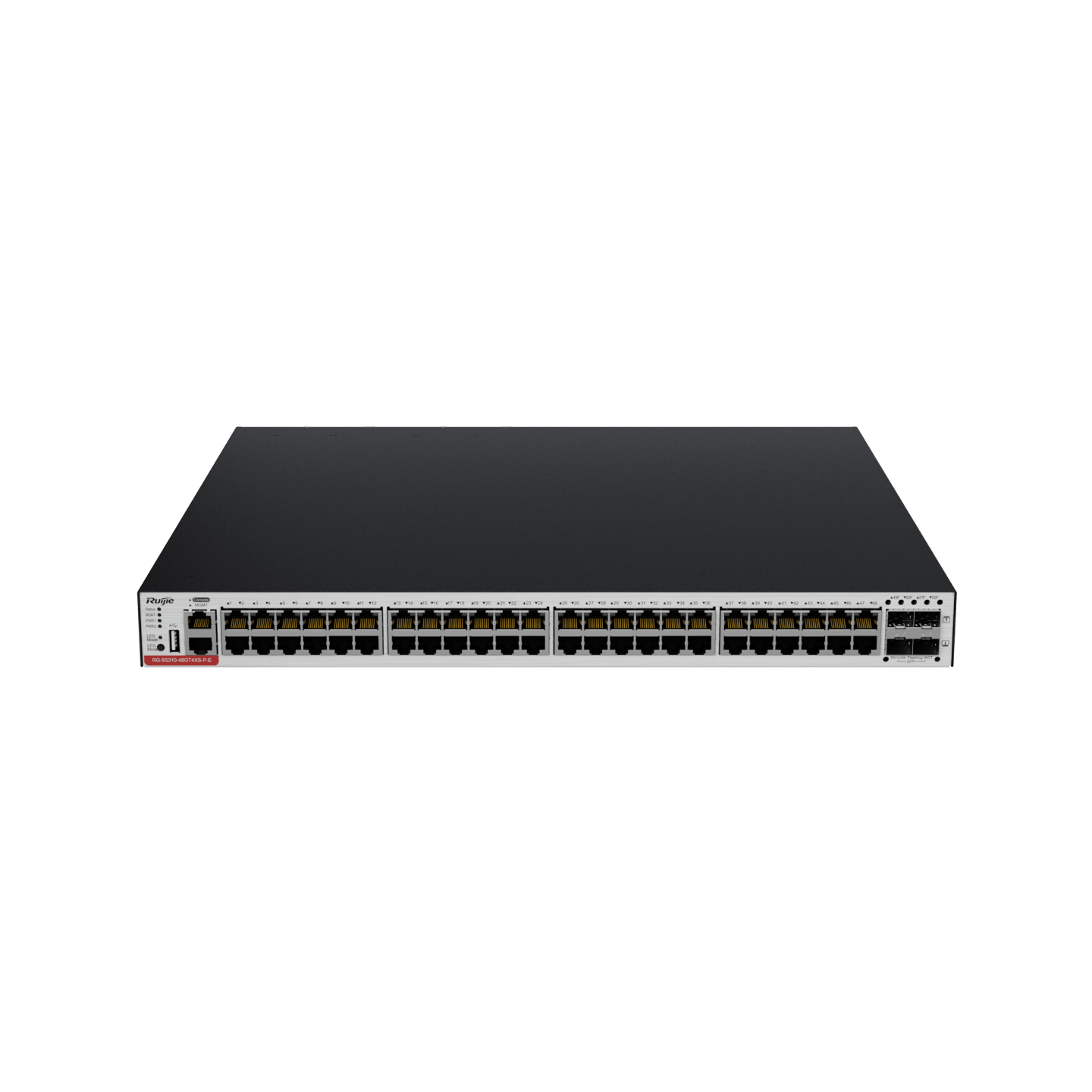

Note: The Ruijie RG-CS83-48GT4XS-PD is a 48-port Layer 3 managed Gigabit PoE+ switch designed for large-sized enterprise and campus networks. It provides 48 × 10/100/1000BASE-T RJ45 ports with PoE/PoE+ support and 4 × 1GE/10GE SFP+ uplink ports. The switch offers 176Gbps switching capacity, 132Mpps packet forwarding performance, a 32K MAC address table and up to 1,480W maximum PoE output depending on the installed power modules. It also supports VSU virtualization with up to four members, Layer 3 routing, VLAN, ACL, LACP, STP/RSTP/MSTP, ERPS and Ruijie Cloud management.
Important: The RG-CS83-48GT4XS-PD is a Layer 3 Managed PoE+ Switch, not an unmanaged switch. All 48 RJ45 ports support 10/100/1000Mbps and IEEE 802.3af/at PoE/PoE+, while the 4 SFP+ ports support 1Gbps/10Gbps uplinks. The switch uses modular power supplies and requires at least one compatible RG-PA600I-P-F or RG-PA1000I-P-F power module. The maximum PoE output is 1,480W.
