| Features |
Description |
| Device Type |
48-Port Layer 3 Managed Gigabit PoE+ Core/Aggregation Switch |
| Network Ports |
48 × 10/100/1000BASE-T RJ45 Ports with PoE/PoE+ |
| Uplink Ports |
4 × 1Gbps/10Gbps SFP+ Ports |
| Switching Capacity |
656 Gbps |
| Packet Forwarding Rate |
488 Mpps |
| MAC Address Table |
64K |
| PoE Standard |
IEEE 802.3af/at PoE/PoE+ |
| Maximum PoE Output |
Up to 1,440W |
| VSU |
Supported, Up to 4 Members |
| Management |
Ruijie Cloud, CLI, Web, Telnet, SNMP, RMON and Syslog |
| Power Supply |
2 × Hot-Swappable Modular Power Supply Slots |
| Design |
1U Rack-Mountable with 2 × Modular Fan Modules |
| INTERFACE |
| Network Ports |
48 × 10/100/1000BASE-T RJ45 Ports |
| SFP+ Uplink Ports |
4 × 1GE/10GE SFP+ Ports |
| Management Port |
1 × RJ45 MGMT Port |
| Console Port |
1 × RJ45 Console Port |
| USB |
1 × USB 3.0 Port |
| Expansion Slot |
1 × Expansion Module Slot |
| Power Module Slots |
2 × Modular Power Supply Slots |
| Fan Module Slots |
2 × Modular Fan Slots |
| SWITCHING PERFORMANCE |
| Switching Capacity |
656 Gbps |
| Packet Forwarding Rate |
488 Mpps |
| MAC Address Table |
64,000 |
| ARP Table |
24,000 |
| IPv4 Unicast Routes |
24,000 |
| IPv4 Multicast Routes |
4,000 |
| IPv6 Unicast Routes |
14,000 |
| IPv6 Multicast Routes |
2,000 |
| ACL Entries |
Ingress: 7,000 / Egress: 1,500 |
| Switch Buffer |
4 MB |
| VSU Members |
Up to 4 |
| POE |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Ports 1–48 |
| Maximum PoE Output per Port |
30W |
| IEEE 802.3af Output |
Up to 15.4W per Port |
| IEEE 802.3at Output |
Up to 30W per Port |
| PoE Power Pairs |
Mode A (1-2, 3-6 Pairs) |
| Maximum PoE Output |
Up to 1,440W, Depending on Installed Power Modules |
| PoE Budget with 1 × RG-PA600I-P-F |
370W |
| PoE Budget with 2 × RG-PA600I-P-F |
740W |
| PoE Budget with 1 × RG-PA1000I-P-F |
740W |
| PoE Budget with 2 × RG-PA1000I-P-F |
1,480W Power Supply Capacity, Limited to 1,440W Maximum PoE Output |
| SMART FEATURES |
| Ruijie Cloud |
Cloud-Based Network Management, Monitoring and Configuration |
| VSU |
Virtual Switching Unit, Supports Up to 4 Members |
| Zero Touch Provisioning |
Supported |
| Hardware Boot Redundancy |
Dual Flash Chips Provide 1+1 Boot Program Redundancy |
| Hot-Swappable Power |
Supported |
| Hot-Swappable Fan |
Supported |
| CPP |
CPU Protection Policy Helps Protect the CPU Against Excessive Traffic |
| NFPP |
Network Foundation Protection Policy Helps Protect the Network from Abnormal or Malicious Traffic |
| Network Monitoring |
Real-Time Device and Network Monitoring |
| Configuration Backup |
Supported via USB |
| LAYER 3 FEATURES |
| Static Routing |
Supported |
| RIP |
RIP / RIPng |
| OSPF |
OSPFv2 / OSPFv3 |
| IS-IS |
IS-ISv4 / IS-ISv6 |
| BGP |
BGP4 / BGP4+ |
| IPv4 / IPv6 |
Dual-Stack Supported |
| VRF |
IPv4 / IPv6 VRF |
| Policy-Based Routing |
IPv4 / IPv6 PBR |
| Multicast Routing |
IGMP / PIM |
| SWITCHING FEATURES |
| VLAN |
IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN |
Supported |
| Super VLAN |
Supported |
| Private VLAN |
Supported |
| MAC VLAN |
Supported |
| Port-Based VLAN |
Supported |
| Protocol-Based VLAN |
Supported |
| IP-Subnet VLAN |
Supported |
| GVRP |
Supported |
| QinQ |
Basic QinQ / Flexible QinQ |
| STP |
STP / RSTP / MSTP |
| ERPS |
IEEE G.8032 |
| Link Aggregation |
LACP (IEEE 802.3ad) |
| LLDP |
LLDP / LLDP-MED |
| Jumbo Frame |
Up to 9,216 Bytes |
| NETWORK MANAGEMENT |
| Management Methods |
Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP |
SNMP v1 / v2c / v3 |
| DHCP |
DHCP Client / Server / Relay / Snooping |
| IPv6 DHCP |
DHCPv6 Client / Relay / Snooping |
| DNS |
Supported |
| Configuration Backup |
Supported via USB |
| HARDWARE |
| CPU |
Dual-Core CPU, 1.2GHz per Core |
| Memory |
2GB |
| Flash Memory |
4GB |
| BootROM |
16MB, 2 Flash Chips for 1+1 Boot Redundancy |
| Switch Buffer |
4MB |
| Expansion Slot |
1 × Expansion Module Slot |
| Rack Height |
1U |
| EXPANSION |
| Expansion Module |
CM85-4XS2CQ |
| Expansion Interfaces |
4 × 1GE/10GE SFP+ Ports + 2 × 40GE/100GE QSFP28 Ports |
| POWER |
| Power Supply |
2 × Pluggable Modular Power Supply Slots |
| Supported Power Modules |
RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy |
1+1 Redundancy |
| Power Module Hot Swap |
Supported |
| Maximum Power Consumption |
120W Without PoE / 1,600W at Full PoE Load |
| Maximum Power Output per Module |
600W with RG-PA600I-P-F / Up to 1,000W with RG-PA1000I-P-F |
| ENVIRONMENT & RELIABILITY |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |
| Operating Altitude |
0m to 5,000m |
| Fan |
2 × Modular Fan Modules, Pre-Installed |
| PHYSICAL |
| Dimensions |
442 × 420 × 43.6 mm |
| Weight |
5.7kg, Excluding Power Modules |
| Installation |
19-inch Rack Mount, 1U |

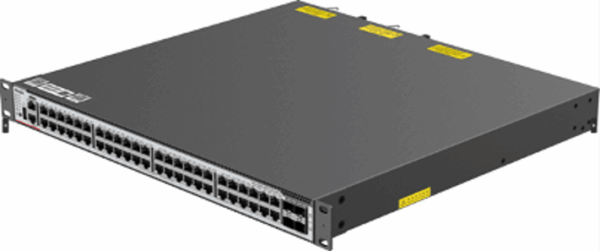

Note: The Ruijie RG-CS85-48GT4XS-HPD is a 48-port Layer 3 managed Gigabit PoE+ core/aggregation switch designed for large-sized campus networks and as a core switch for small and medium-sized enterprise networks. It provides 48 × 10/100/1000BASE-T RJ45 ports with PoE/PoE+ support and 4 × 1GE/10GE SFP+ uplink ports. It offers 656Gbps switching capacity, 488Mpps packet forwarding performance, a 64K MAC address table, Layer 3 routing, VSU virtualization and redundant hot-swappable power modules.
Important: The RG-CS85-48GT4XS-HPD is a Layer 3 Managed PoE+ Switch. All 48 RJ45 ports support 10/100/1000Mbps and IEEE 802.3af/at PoE/PoE+, with up to 30W per port. The 4 SFP+ ports support 1Gbps/10Gbps uplinks. The switch uses 2 modular power-supply slots and supports RG-PA600I-P-F or RG-PA1000I-P-F power modules. The maximum PoE output is 1,440W, depending on the installed power supplies.
