| Features |
Description |
| Device Type |
24-Port Multi-Gigabit Layer 3 Managed Switch with PoE++ |
| Network Ports |
24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Uplink Ports |
4 × 1Gbps/10Gbps SFP+ Ports + 4 × 10Gbps/25Gbps SFP28 Ports |
| PoE |
IEEE 802.3af/at/bt PoE/PoE+/PoE++, Up to 90W per Port |
| Switching Capacity |
760 Gbps |
| Packet Forwarding Rate |
565 Mpps |
| MAC Address Table |
32K |
| VSU |
Supported, Up to 2 Members |
| Management |
Ruijie Cloud, CLI, Web, Telnet, SNMP and NETCONF |
| Power Supply |
2 × Hot-Swappable Modular Power Supply Slots |
| Design |
1U Rack-Mountable, Modular Fan Design |
| INTERFACE |
| Multi-GE Ports |
24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| SFP+ Ports |
4 × 1Gbps/10Gbps SFP+ Ports |
| SFP28 Ports |
4 × 10Gbps/25Gbps SFP28 Ports |
| Management Port |
1 × RJ45 MGMT Port |
| Console Port |
1 × RJ45 Console Port |
| USB |
1 × USB Port |
| SWITCHING PERFORMANCE |
| Switching Capacity |
760 Gbps |
| Packet Forwarding Rate |
565 Mpps |
| MAC Address Table |
32,768 |
| ARP Table |
16,000 |
| IPv4 Unicast Routes |
16,000 |
| IPv4 Multicast Routes |
4,000 |
| IPv6 Unicast Routes |
16,000 |
| IPv6 Multicast Routes |
2,000 |
| ACL Entries |
Ingress: 2,500 / Egress: 1,000 |
| Switch Buffer |
4 MB |
| SMART FEATURES |
| Ruijie Cloud |
Cloud-Based Network Management, Monitoring and Configuration |
| VSU |
Virtual Switching Unit, Supports Up to 2 Members |
| Zero Touch Provisioning |
Supported |
| VLAN Management |
Cloud-Based VLAN Configuration and Visualization |
| Network Monitoring |
Real-Time Device Health, Traffic and Connectivity Monitoring |
| Auto Configuration |
Supported |
| Intelligent Power Saving |
Supported |
| Hardware Protection |
Hardware-Level Boot Redundancy and Optical Port Fault Isolation |
| Hot-Swappable Power |
Supported |
| Hot-Swappable Fan |
Supported |
| POE |
| PoE Standard |
IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports |
Ports 1–24 |
| PoE Type |
PoE / PoE+ / PoE++ / HPoE |
| Maximum PoE Output per Port |
90W |
| PoE Cable Pairs |
Four Pairs |
| Maximum Full PoE Load |
Up to 1,650W, Depending on Installed Power Modules |
| NETWORK MANAGEMENT |
| Management Methods |
Ruijie Cloud, Web, CLI, Telnet, SNMP, NETCONF and CWMP (TR-069) |
| SNMP |
SNMP v1/v2c/v3 |
| RMON |
Supported |
| Syslog |
Supported |
| sFlow |
Supported |
| Configuration Backup |
Supported via USB |
| LAYER 3 FEATURES |
| Static Routing |
Supported |
| RIP |
Supported |
| OSPF |
Supported |
| BGP |
Supported |
| IS-IS |
Supported |
| IPv4 / IPv6 |
Supported |
| PBR |
IPv4 / IPv6 Policy-Based Routing |
| Multicast |
IGMP / PIM |
| ACL |
Supported |
| POWER |
| Power Supply |
2 × Pluggable Modular Power Supply Slots |
| Power Module |
RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy |
1+1 Redundancy |
| Power Module Hot Swap |
Supported |
| RG-PA600I-P-F Output |
600W |
| RG-PA1000I-P-F Output |
Up to 1000W |
| Maximum Power Consumption |
Less than 120W Without PoE / Up to 1,650W at Full PoE Load |
| HARDWARE |
| CPU |
ARM Processor, 1.25GHz |
| Memory |
1GB SDRAM |
| Flash Memory |
1GB |
| BootROM |
16MB |
| Data Packet Buffer |
4MB |
| Fan Modules |
3 × Modular Fan Slots, 3 Fan Modules Equipped by Default |
| Rack Height |
1U |
| ENVIRONMENT & RELIABILITY |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |
| Surge Protection |
6kV |
| Temperature Monitoring |
Temperature Alarm |
| Airflow |
Front/Left-to-Rear Airflow |
| PHYSICAL |
| Dimensions |
442 × 220 × 43.6 mm |
| Weight |
6.11kg, Including Fan Modules and Excluding Power Modules |
| Installation |
19-inch Rack Mount, 1U |

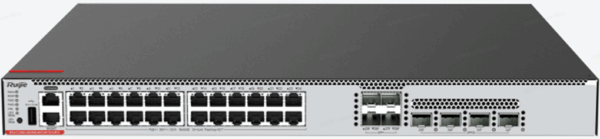

Note: The Ruijie RG-CS86-24XMG4XS4VS-UPD is a 24-port Multi-Gigabit Layer 3 managed switch designed for high-bandwidth enterprise and campus networks. It provides 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 4 × 1Gbps/10Gbps SFP+ ports and 4 × 10Gbps/25Gbps SFP28 ports. All 24 RJ45 ports support PoE/PoE+/PoE++ with up to 90W per port, while the switch supports a maximum full PoE load of up to 1,650W depending on the installed power modules. It features 760Gbps switching capacity, 565Mpps forwarding performance, Layer 3 routing, VSU virtualization, Ruijie Cloud management and redundant hot-swappable power and fan modules.
Important: The RG-CS86-24XMG4XS4VS-UPD is a managed Layer 3 Multi-Gigabit switch, not an unmanaged switch. It provides 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 4 × 10Gbps SFP+ ports and 4 × 25Gbps SFP28 ports. All 24 RJ45 ports support IEEE 802.3af/at/bt PoE/PoE+/PoE++ with up to 90W per port. The switch requires at least one compatible modular power supply and supports 1+1 power redundancy and hot-swappable power modules.
