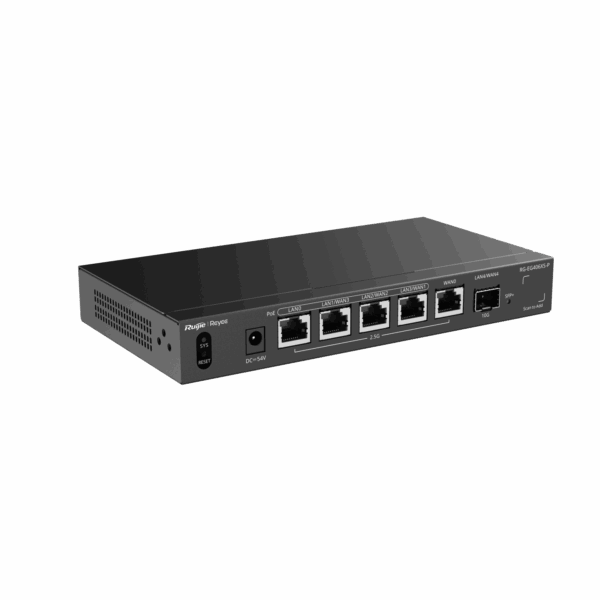

Specifications Ruijie Reyee RG-EG406XS-P
| Features | Description |
|---|---|
| Device Type | 6-Port 2.5G Cloud Managed PoE Router |
| Ports | 5 × 10/100/1000/2500BASE-T RJ45 Ports (4 × PoE+ Out), 1 × 10GE SFP+ Port |
| WAN/LAN | 1 × Fixed WAN, 1 × Fixed LAN, 3 × Configurable WAN/LAN Ports, 4 × PoE+ Out Ports |
| Throughput | 2.5Gbps |
| PoE Budget | 110W Total PoE Budget |
| Recommended Clients | Up to 400 Concurrent Clients |
| CPU | Quad-Core Processor, 2.0GHz |
| Memory | 1GB RAM, 256MB Flash |
| Management | Ruijie Cloud, Reyee App and Web Management |
| Application | SMB, Office, Hotel, Retail Store, School and Multi-Branch Networks |
| Router Type | Cloud Managed Multi-WAN PoE Router |
|---|---|
| Ethernet Ports | 5 × 2.5G RJ45 Ports (4 × PoE+) |
| SFP Port | 1 × 10GE SFP+ Port |
| Routing Performance | 2.5Gbps NAT Throughput |
| Installation | Desktop |
| Cooling | Fanless Design |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Management via Ruijie Cloud and Reyee App |
| Multi-WAN | Supports Intelligent Load Balancing and Automatic WAN Failover |
| PoE Output | 4 × IEEE 802.3af/at PoE+ Ports with Total 110W Power Budget |
| SD-WAN | Supports SD-WAN with up to 100 VPN Tunnels for Branch Connectivity |
| VPN | Supports IPsec, WireGuard, OpenVPN, L2TP and PPTP VPN |
| Bandwidth Management | Application-Based and User-Based Intelligent Traffic Control |
| Security | Supports Stateful Firewall, ACL, IP-MAC Binding, Security Zone and Attack Defense |
| Authentication | Supports Portal, RADIUS, QR Code, Voucher and 802.1X Authentication |
| GENERAL | |
|---|---|
| Power Supply | 54V DC Power Adapter |
| Maximum Power Consumption | Less than 120W (Including PoE Output) |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 202 × 108 × 28mm |
| Warranty | 3 Years |
Note: The RG-EG406XS-P is a high-performance 2.5G cloud managed router with four built-in PoE+ ports and a 10GE SFP+ uplink. It combines Multi-WAN, SD-WAN, advanced VPN, and cloud management in a compact fanless design. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-EG406XS-P is a 6-port 2.5G Cloud Managed PoE Router with a 110W PoE budget, 10G SFP+, 2.5Gbps throughput, Multi-WAN, SD-WAN, VPN, and Ruijie Cloud management—ideal for SMBs, offices, and enterprise networks.
