| Features |
Description |
| Product Type |
Layer 2 Unmanaged PoE+ Switch |
| Series |
RG-ES100 Series |
| Total Ports |
6 × 10/100BASE-T |
| PoE+ Ports |
4 × 10/100BASE-T PoE+ |
| Uplink Ports |
2 × 10/100BASE-T |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
54W |
| Maximum PoE Output per Port |
30W |
| Switching Capacity |
1.6Gbps |
| Forwarding Rate |
1.19Mpps |
| Management |
Unmanaged / Visible on Ruijie Cloud App |
| HARDWARE |
| PoE Downlink Ports |
4 × 10/100BASE-T PoE+ |
| Uplink Ports |
2 × 10/100BASE-T |
| Port Speed |
10/100Mbps Auto-Negotiation |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port |
30W |
| Total PoE Power Budget |
54W |
| MAC Address Table |
2K |
| Switch Buffer |
2Mbit |
| Fan |
Fanless |
| PERFORMANCE |
| Switching Capacity |
1.6Gbps |
| Forwarding Rate |
1.19Mpps |
| MAC Address Capacity |
2K |
| Packet Buffer |
2Mbit |
| PoE Power Budget |
54W |
| NETWORK FEATURES |
| Operating Modes |
Standard / Flow Control Off / VLAN Mode |
| Flow Control |
Supported |
| Port Isolation |
Supported via VLAN Mode |
| Auto MDI/MDIX |
Supported |
| Auto-Negotiation |
Supported |
| Half/Full Duplex |
Supported |
| Store and Forward |
Supported |
| Plug & Play |
Supported |
| POE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Budget |
54W |
| PoE Ports |
4 |
| Maximum Power per Port |
30W |
| PoE Power Pins |
Mode A (1–2, 3–6 pairs) |
| PoE Device Detection |
Automatic |
| Intelligent PoE Management |
Supported |
| Non-PoE Device Protection |
Supported |
| CCTV FEATURES |
| IP Camera Support |
Supported |
| PoE Camera Power |
Supported |
| Port Isolation |
Supported via VLAN Mode |
| Camera Port Isolation |
Ports 1–4 are isolated from each other and can communicate with Ports 5–6 |
| Flow Control |
Supported |
| MANAGEMENT |
| Switch Management |
Unmanaged |
| Cloud Visibility |
Visible on Ruijie Cloud App |
| Cloud Configuration |
Not Supported |
| Web Management |
Not Supported |
| SNMP |
Not Supported |
| Remote Management |
Not Supported |
| PROTECTION |
| Port Surge Protection |
Common Mode 4kV |
| PoE Protection |
Automatic PoE Device Detection |
| Port Isolation |
Supported |
| Flow Control Protection |
Supported |
| POWER & GENERAL |
| Power Supply |
External Power Adapter |
| Input Voltage |
100–240VAC |
| Input Frequency |
50/60Hz |
| DC Output |
54VDC / 1.11A |
| Maximum Power Consumption |
60.6W |
| Power Consumption without PoE Load |
<6.6W |
| Installation |
Desktop / Wall Mounting |
| Dimensions |
140 × 67 × 26mm |
| Net Weight |
Approximately 0.25kg |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
| Fan |
Fanless |
| Warranty |
3 Years |

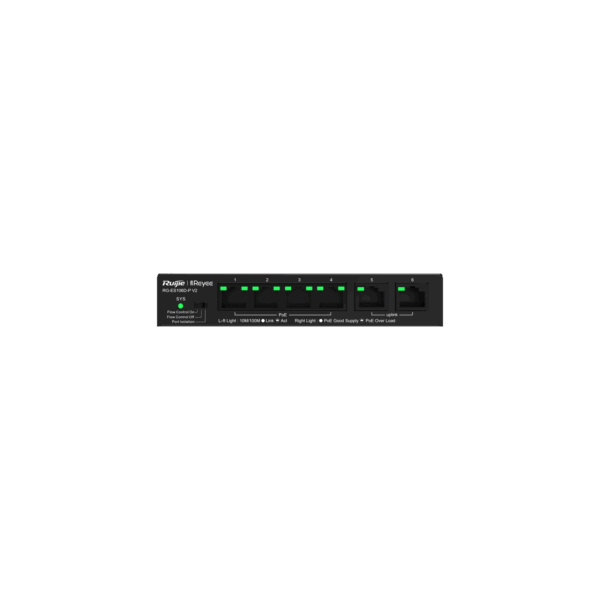

Note: The Ruijie Reyee RG-ES106D-P V2 is a 6-port Layer 2 Unmanaged PoE+ Switch featuring 4 × 10/100BASE-T PoE+ ports and 2 × 10/100BASE-T uplink ports. It provides a 54W PoE power budget with up to 30W per port, 1.6Gbps switching capacity and 1.19Mpps forwarding performance. The switch supports IEEE 802.3af/at, Flow Control, Port Isolation via VLAN Mode, automatic PoE device detection and intelligent PoE management. It features a compact fanless design and is suitable for CCTV, small offices, retail stores and other applications.
Important: The Ruijie Reyee RG-ES106D-P V2 is a 6-Port 10/100Mbps Unmanaged PoE+ Switch featuring 4 × Fast Ethernet PoE+ ports and 2 × Fast Ethernet uplink ports. It provides a total 54W PoE power budget, up to 30W per port, 1.6Gbps switching capacity and 1.19Mpps forwarding performance. The switch supports IEEE 802.3af/at, Flow Control, VLAN Mode and automatic PoE device detection. Its compact fanless design measures only 140 × 67 × 26mm and comes with a 3-year warranty.
