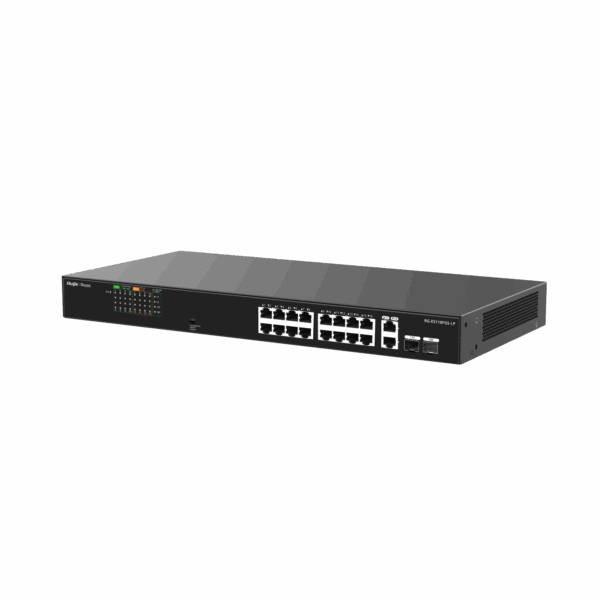

RG-ES118FGS-LP

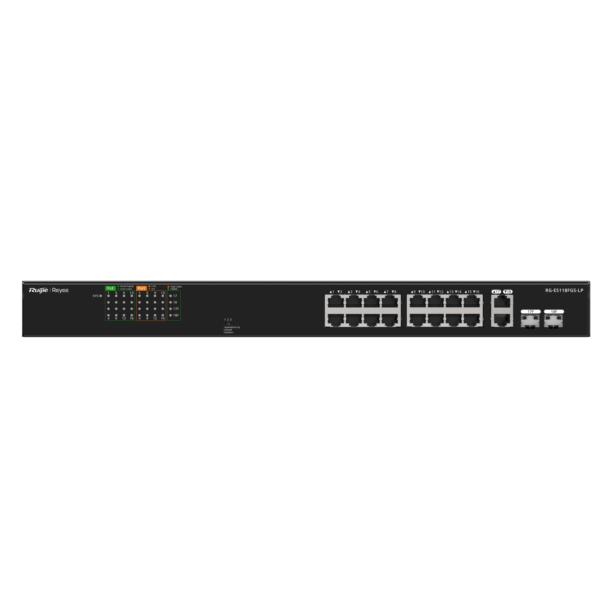

Ruijie Reyee RG-ES118FGS-LP
18-Port Unmanaged PoE Switch
- 16×10/100Mbps PoE+ ports with 2×Gigabit RJ45/SFP combo uplinks
- Supports IEEE 802.3af/at with 120W PoE budget
- Plug & Play with no configuration required
- Supports PoE Watchdog, Port Isolation and Extend Mode
- Visible on Ruijie Cloud for network monitoring
- Fanless metal design ideal for CCTV and business networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES118FGS-LP
| Features | Description |
|---|---|
| Device Type | 20-Port Unmanaged PoE Switch (16 Fast Ethernet PoE+ + 2 Gigabit RJ45 + 2 Gigabit SFP Combo) |
| Ports | 16 × 10/100Mbps PoE+ RJ45 Ports, 2 × 10/100/1000Mbps RJ45/SFP Combo Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 120W Total PoE Budget |
| Switching Capacity | 7.2Gbps |
| Forwarding Rate | 5.35Mpps |
| MAC Address Table | 8K Entries |
| Management | Unmanaged (Plug & Play) |
| Surge Protection | 4kV Port Surge Protection |
| Application | CCTV, Office, Retail Store, Warehouse and Small Business Networks |
| Switch Type | Layer 2 Unmanaged PoE Switch |
|---|---|
| Network Ports | 16 × Fast Ethernet PoE+ Ports, 2 × Gigabit RJ45/SFP Combo Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| DIP Switch Modes | Default, Extend Mode and Port Isolation |
| Housing | Metal Enclosure |
| Cooling | Fanless Design |
| SMART FEATURES | |
|---|---|
| Plug & Play | No Configuration Required for Quick Deployment |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Extend Mode | Supports PoE Transmission Distance up to 250m at 10Mbps |
| Port Isolation | Enhances Security by Isolating Downlink Ports for CCTV Networks |
| Cloud Visibility | Supports Device Visibility via Ruijie Cloud* |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 120W (Full PoE Load) |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 214.9 × 44mm |
| Warranty | 3 Years |
Note: *Ruijie Cloud visibility for unmanaged switches requires at least one compatible Ruijie managed switch on the same network. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES118FGS-LP is a 20-port unmanaged PoE switch featuring 16 Fast Ethernet PoE+ ports, 2 Gigabit RJ45/SFP combo uplink ports, a 120W PoE budget, PoE Watchdog, Extend Mode, Port Isolation, and fanless operation. It is ideal for CCTV, office, retail, and small business network deployments.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
