RG-ES118GS-P-L

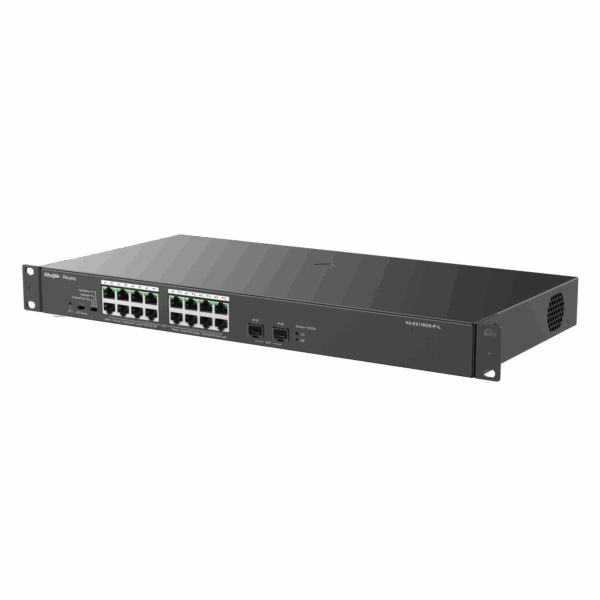

Ruijie Reyee RG-ES118GS-P-L
18-Port Gigabit Unmanaged PoE Switch
- 16×Gigabit PoE+ ports with 2×Gigabit SFP uplink ports
- Supports IEEE 802.3af/at with 247W PoE budget
- Plug & Play with no configuration required
- Supports PoE Watchdog, Port Isolation and 250m Extend Mode
- Visible on Ruijie Cloud for network monitoring
- Metal housing with fan cooling, ideal for CCTV and business networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES118GS-P-L
| Features | Description |
|---|---|
| Device Type | 18-Port Gigabit Unmanaged PoE Switch |
| Ports | 16 × 10/100/1000Mbps PoE+ RJ45 Ports, 2 × 1000Base-X SFP Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 247W Total PoE Budget |
| Switching Capacity | 36Gbps |
| Forwarding Rate | 26.8Mpps |
| MAC Address Table | 8K Entries |
| Management | Unmanaged (Plug & Play) |
| Surge Protection | 4kV Port Surge Protection |
| Application | CCTV, Office, Retail Store, Café and Small Business Networks |
| Switch Type | Layer 2 Unmanaged PoE Switch |
|---|---|
| Network Ports | 16 × Gigabit PoE+ RJ45 Ports, 2 × Gigabit SFP Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Work Modes | Default, Extend Mode and Port Isolation (DIP Switch) |
| Housing | Metal Enclosure |
| Cooling | Fixed Fan with Intelligent Speed Control |
| SMART FEATURES | |
|---|---|
| Plug & Play | No Configuration Required for Quick Deployment |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Extend Mode | Supports PoE Transmission Distance up to 250m at 10Mbps |
| Port Isolation | Enhances Security by Isolating Downlink Ports for CCTV Networks |
| Cloud Visibility | Supports Device Visibility via Ruijie Cloud* |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | <20W (Without PoE), <247W (Full PoE Load) |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 214.9 × 44mm |
| Warranty | 3 Years |
Note: *Cloud visualization for unmanaged switches requires at least one compatible Ruijie managed switch deployed on the same network. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES118GS-P-L is an 18-port Gigabit unmanaged PoE switch featuring 16 PoE+ ports, 2 Gigabit SFP uplinks, a 247W PoE budget, PoE Watchdog, Extend Mode, Port Isolation, and Ruijie Cloud visibility. It is an ideal solution for CCTV, office, retail, and small business network deployments.
