| Features |
Description |
| Product Type |
Layer 2 Smart Cloud Managed PoE+ Switch |
| Series |
RG-ES200 Series |
| Total Ports |
6 × Gigabit Ethernet Ports |
| PoE+ Ports |
4 × 10/100/1000BASE-T PoE+ |
| Uplink Ports |
2 × 10/100/1000BASE-T |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
54W |
| Maximum PoE Output per Port |
30W |
| Switching Capacity |
12Gbps |
| Forwarding Rate |
8.9Mpps |
| Management |
Ruijie Cloud / Ruijie Reyee App / Web |
| HARDWARE |
| PoE Downlink Ports |
4 × 10/100/1000BASE-T PoE+ |
| Uplink Ports |
2 × 10/100/1000BASE-T |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port |
30W |
| Total PoE Power Budget |
54W |
| MAC Address Table |
4K |
| Maximum VLAN |
16 |
| Switch Buffer |
1Mbit |
| Fan |
Fanless |
| PERFORMANCE |
| Switching Capacity |
12Gbps |
| Forwarding Rate |
8.9Mpps |
| MAC Address Capacity |
4K |
| Maximum VLAN |
16 |
| Switch Buffer |
1Mbit |
| PoE Power Budget |
54W |
| NETWORK FEATURES |
| VLAN |
IEEE 802.1Q VLAN |
| VLAN Configuration |
Supported via Ruijie Cloud App |
| Port Isolation |
Supported |
| Port Mirroring |
Supported |
| Loop Prevention |
Automatic Loop Prevention |
| Flow Control |
Supported |
| Broadcast Storm Suppression |
Supported |
| Multicast Storm Suppression |
Supported |
| Unknown Unicast Storm Suppression |
Supported |
| Cable Detection |
Supported |
| Port Speed Limiting |
Supported |
| POE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Budget |
54W |
| PoE Ports |
4 |
| Maximum Power per Port |
30W |
| PoE Watchdog |
Supported |
| PoE Device Detection |
Automatic |
| Intelligent PoE Adaptive |
Supported |
| Remote PoE Port Reboot |
Supported |
| Non-PoE Device Protection |
Supported |
| CCTV FEATURES |
| IP Camera Recognition |
Supported |
| NVR Recognition |
Supported |
| Camera Offline Detection |
Supported |
| Remote Camera Reboot |
Supported |
| PoE Watchdog |
Supported |
| Extended Transmission |
Up to 250m* |
| Flexible Extend Mode |
Supported |
| MANAGEMENT |
| Cloud Management |
Ruijie Cloud |
| Mobile Management |
Ruijie Reyee App |
| Web Management |
eWeb Management |
| Cloud Configuration |
Supported |
| Remote Management |
Supported |
| SON |
Zero-Touch Cloud Provisioning |
| VLAN Configuration via Cloud |
Supported |
| Network Monitoring |
Switch Statistics Monitoring via Cloud |
| SNMP |
Not Supported |
| SECURITY & PROTECTION |
| Port Isolation |
Supported |
| DHCP Snooping |
Supported |
| Broadcast Storm Control |
Supported |
| Multicast Storm Control |
Supported |
| Unknown Unicast Storm Control |
Supported |
| CPU Protection |
Supported |
| Standard ACL |
Not Supported |
| Port Surge Protection |
4kV |
| POWER & GENERAL |
| Power Supply |
External Power Adapter |
| Input Voltage |
100–240VAC, 50/60Hz |
| Maximum Power Consumption |
65W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Installation |
Desktop / Wall Mounting |
| Dimensions |
148 × 78 × 26mm |
| Fan |
Fanless |
| MTBF |
>200,000 Hours |
| Warranty |
3 Years |

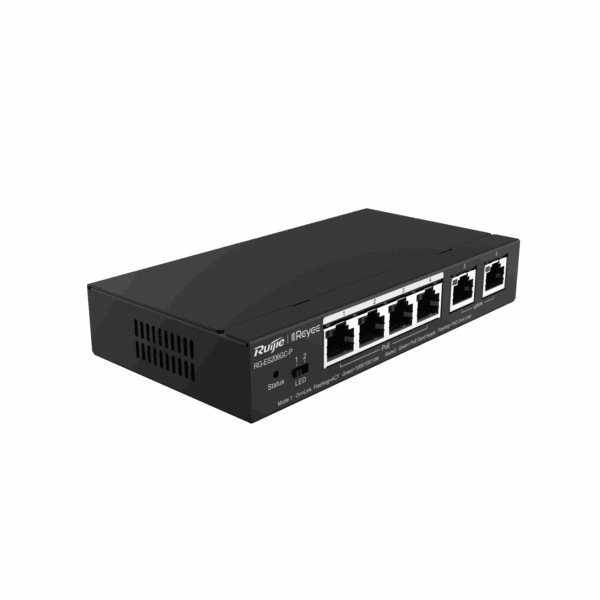

Note: The Ruijie Reyee RG-ES206GC-P is a 6-port Layer 2 Smart Cloud Managed PoE+ Switch featuring 4 × 10/100/1000BASE-T PoE+ ports and 2 × Gigabit uplink ports. It provides a 54W PoE power budget, up to 30W per port, 12Gbps switching capacity and 8.9Mpps forwarding performance. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, port isolation, automatic loop prevention, IP camera/NVR recognition, PoE Watchdog, remote camera reboot and Ruijie Cloud management. It features a fanless and compact design suitable for SMB and CCTV networks.
Important: The Ruijie Reyee RG-ES206GC-P is a 6-Port Gigabit Smart Cloud Managed PoE+ Switch featuring 4 × Gigabit PoE+ ports and 2 × Gigabit uplink ports. It provides a total 54W PoE power budget, up to 30W per port, 12Gbps switching capacity and 8.9Mpps forwarding performance. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, automatic loop prevention, port isolation, IP camera recognition, PoE Watchdog and Ruijie Cloud management. It is fanless, compact at 148 × 78 × 26mm and comes with a 3-year warranty.
