RG-ES206MG-P

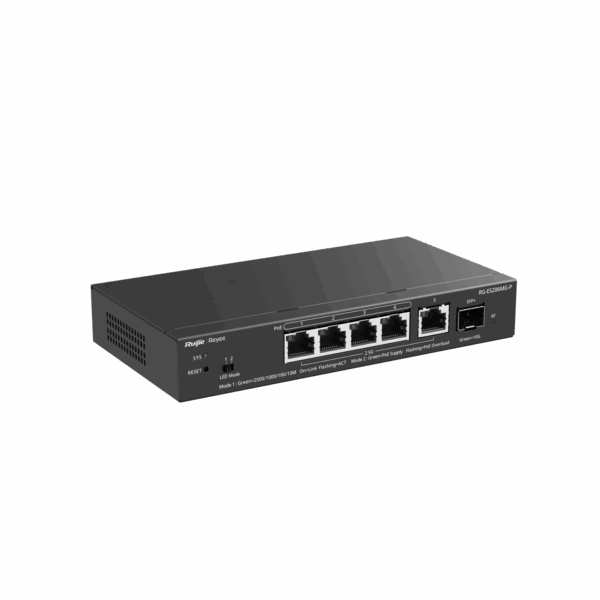

Ruijie Reyee RG-ES206MG-P
5-Port 2.5G Smart Cloud Managed PoE Switch
- 5×2.5Gbps RJ45 ports with 1×10G SFP+ uplink
- 4×PoE+ ports supporting IEEE 802.3af/at with 70W PoE budget
- Layer 2 Smart Managed Switch with Ruijie Cloud Management
- Supports VLAN, PoE Watchdog, Port Isolation and Link Aggregation
- 45Gbps switching capacity with 33.75Mpps forwarding rate
- Fanless metal design ideal for Wi-Fi 7, CCTV and SMB networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES206MG-P
| Features | Description |
|---|---|
| Device Type | 6-Port Multi-Gigabit Smart Cloud Managed PoE Switch |
| Ports | 4 × 2.5G PoE+ RJ45 Ports, 1 × 2.5G RJ45 Uplink Port, 1 × 10G SFP+ Uplink Port |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 70W Total PoE Budget |
| Switching Capacity | 45Gbps |
| Forwarding Rate | 33.48Mpps |
| MAC Address Table | 8K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb |
| Surge Protection | 6kV Port Surge Protection |
| Application | Wi-Fi 7, CCTV, Office, Hotel, Retail Store and SMB Network |
| Switch Type | Layer 2 Smart Cloud Managed Multi-Gigabit PoE Switch |
|---|---|
| Network Ports | 4 × 2.5G PoE+ RJ45 Ports, 1 × 2.5G RJ45 Uplink, 1 × 10G SFP+ Uplink |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | Desktop / Wall Mount |
| Housing | Metal Enclosure, Fanless Design |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| 10G SFP+ Uplink | Provides High-Speed Backbone Connectivity for Enterprise Networks |
| 2.5G Multi-Gigabit Ports | Optimized for Wi-Fi 6, Wi-Fi 7 Access Points and High-Speed Devices |
| Link Aggregation | Supports Static Link Aggregation for Higher Bandwidth and Redundancy |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| IP Camera Recognition | Automatically Identifies IP Cameras for Easy CCTV Deployment |
| Automatic Loop Prevention | Ensures Stable Network Operation by Preventing Network Loops |
| GENERAL | |
|---|---|
| Power Supply | 54V DC External Power Adapter |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 202 × 108 × 28mm |
| Warranty | 3 Years |
Note: The RG-ES206MG-P is designed for high-speed Multi-Gigabit deployments with 2.5G access ports and a 10G SFP+ uplink. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-ES206MG-P is a 6-port Multi-Gigabit Smart PoE Switch with a 70W PoE budget, 10G SFP+ uplink, PoE Watchdog, and Ruijie Cloud management—ideal for Wi-Fi 7 APs, CCTV, and enterprise networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
