RG-ES209MG-P

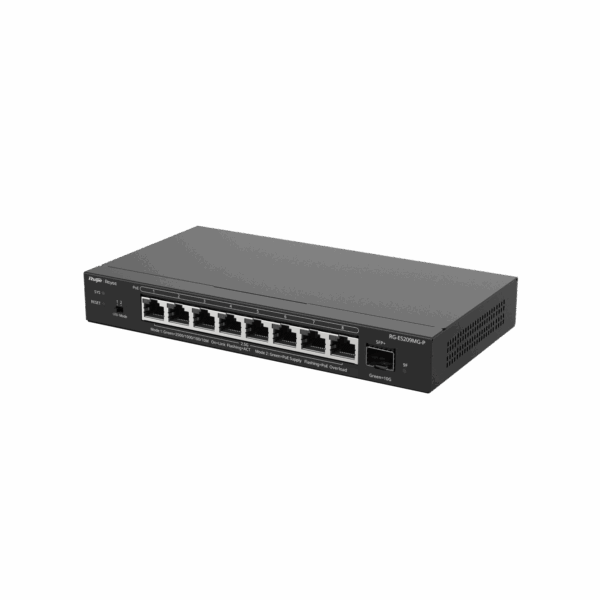

Ruijie Reyee RG-ES209MG-P
9-Port 2.5G Smart Cloud Managed PoE Switch
- 8×2.5Gbps PoE+ RJ45 ports with 1×10G SFP+ uplink
- Supports IEEE 802.3af/at with 130W PoE budget
- Layer 2 Smart Managed Switch with Ruijie Cloud Management
- Supports Link Aggregation, PoE Watchdog and Port Isolation
- 60Gbps switching capacity with 45Mpps forwarding rate
- Fanless metal design ideal for Wi-Fi 7, CCTV and SMB networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES209MG-P
| Features | Description |
|---|---|
| Device Type | 9-Port Multi-Gigabit Smart Cloud Managed PoE Switch |
| Ports | 8 × 2.5G PoE+ RJ45 Ports, 1 × 10G SFP+ Uplink Port |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 130W Total PoE Budget |
| Switching Capacity | 60Gbps |
| Forwarding Rate | 45Mpps |
| MAC Address Table | 8K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb |
| Surge Protection | 6kV Port Surge Protection |
| Application | Wi-Fi 7, Enterprise, CCTV, Office, School, Retail Store and SMB Network |
| Switch Type | Layer 2 Smart Cloud Managed Multi-Gigabit PoE Switch |
|---|---|
| Network Ports | 8 × 2.5G PoE+ RJ45 Ports, 1 × 10G SFP+ Uplink |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | Desktop / Rack Mount |
| Housing | Metal Enclosure |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| 10G SFP+ Uplink | High-Speed Backbone Connectivity for Enterprise Networks |
| 2.5G Multi-Gigabit Ports | Optimized for Wi-Fi 6, Wi-Fi 6E and Wi-Fi 7 Access Points |
| Link Aggregation | Supports Aggregation of up to 4 Ports for Higher Bandwidth and Redundancy |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Port Isolation | Enhances Network Security by Isolating Downlink Ports |
| Lifetime Cloud Management | Remote Monitoring, Configuration and Maintenance Anytime, Anywhere |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3 Years |
Note: The RG-ES209MG-P is designed for high-performance Multi-Gigabit networking with eight 2.5G PoE+ ports and one 10G SFP+ uplink, making it ideal for Wi-Fi 7 and high-bandwidth applications. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-ES209MG-P is a 9-port Smart Cloud Managed Multi-Gigabit PoE Switch featuring 8×2.5G PoE+ RJ45 ports and 1×10G SFP+ uplink for high-speed networking.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
