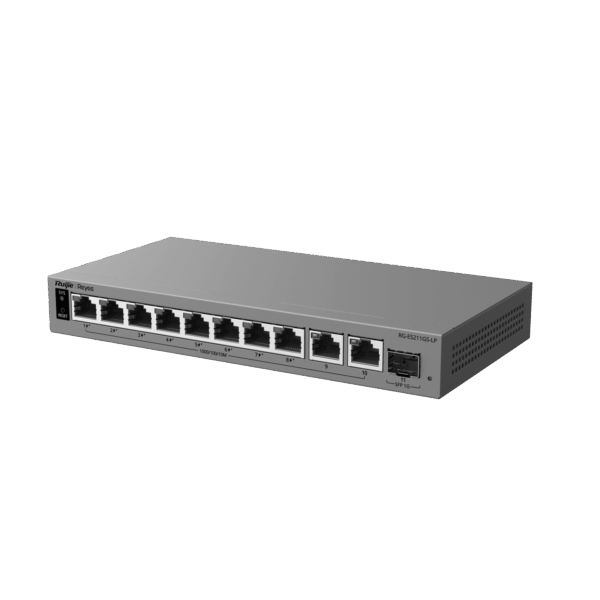

RG-ES211GS-LP
Ruijie Reyee RG-ES211GS-LP
11-Port Gigabit Smart Cloud Managed PoE Switch
- 8×Gigabit PoE+ ports, 2×Gigabit RJ45 uplinks and 1×Gigabit SFP uplink
- Supports IEEE 802.3af/at with 70W PoE budget
- Layer 2 Smart Managed Switch with Ruijie Cloud Management
- Supports PoE Watchdog, Perpetual PoE and Link Aggregation
- 22Gbps switching capacity with 16.36Mpps forwarding rate
- 6kV surge protection with fanless design for CCTV and SMB networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES211GS-LP
| Features | Description |
|---|---|
| Device Type | 11-Port Gigabit Smart Cloud Managed PoE Switch |
| Ports | 8 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 70W Total PoE Budget |
| Switching Capacity | 22Gbps |
| Forwarding Rate | 16.36Mpps |
| MAC Address Table | 16K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb |
| Surge Protection | 6kV Port Surge Protection |
| Application | CCTV, Office, Hotel, Factory, Retail Store and SMB Network |
| Switch Type | Layer 2 Smart Cloud Managed PoE Switch |
|---|---|
| Network Ports | 8 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | Desktop / Wall Mount |
| Housing | Metal Enclosure, Fanless Design |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| Flexible Uplink | 2 × Gigabit RJ45 Uplink Ports and 1 × Gigabit SFP Port for Flexible Network Expansion |
| IPC Recognition | Automatically Detects IP Cameras for Simplified CCTV Deployment |
| Perpetual PoE | Keeps Connected PoE Devices Powered During Switch Restart |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Link Aggregation | Supports Static Link Aggregation for Higher Bandwidth and Redundancy |
| Port Isolation | Enhances Network Security by Isolating Downlink Ports |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 78W |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 205 × 105 × 28mm |
| Warranty | 3 Years |
Note: The RG-ES211GS-LP is designed for reliable Gigabit PoE networking with 8 PoE+ ports, flexible uplink options, and lifetime cloud management. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-ES211GS-LP is an 11-port Gigabit Smart PoE Switch with a 70W PoE budget, PoE Watchdog, Link Aggregation, and Ruijie Cloud management—ideal for CCTV, offices, and SMB networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
