| Features |
Description |
| Product Type |
High-Performance Cloud Managed Security Router |
| Ethernet Ports |
5 × 10/100/1000Mbps |
| WAN Ports |
1 × Gigabit WAN |
| LAN Ports |
1 × Gigabit LAN |
| WAN/LAN Switchable |
3 × Gigabit Ports |
| Throughput |
600Mbps |
| Concurrent Clients |
Up to 200 Clients |
| VPN |
IPSec VPN up to 1,000 Tunnels |
| Management |
Cloud Management |
| HARDWARE |
| WAN Ports |
1 × 10/100/1000 Base-T |
| LAN Ports |
1 × 10/100/1000 Base-T |
| WAN/LAN Switchable Ports |
3 × 10/100/1000 Base-T |
| Console Port |
1 × RS-232 Console Port |
| USB |
1 × USB Port |
| CPU |
Dual-Core, 880MHz |
| RAM |
512MB DDR3 |
| Storage |
4GB eMMC |
| NETWORK & ROUTING |
| WAN |
Multi-WAN |
| WAN Load Balancing |
Supported |
| WAN Failover |
Supported |
| NAT |
Supported |
| DHCP |
DHCP Server / Client / Relay |
| VLAN |
802.1Q VLAN |
| Static Routing |
Supported |
| IPv4 / IPv6 |
Supported |
| SECURITY |
| Firewall |
Stateful Firewall |
| Application Control |
Layer 7 DPI |
| Flow Control |
Intelligent Flow Control |
| Behavior Management |
Application and Network Behavior Management |
| ACL |
Supported |
| DoS Protection |
Supported |
| VPN |
| IPSec VPN |
Up to 1,000 Tunnels |
| VPN Type |
Site-to-Site and Remote Access VPN |
| VPN Management |
Cloud-Based VPN Management |
| MANAGEMENT |
| Cloud Management |
Ruijie/Reyee Cloud |
| Remote Management |
Supported |
| Mobile Management |
Supported |
| Self-Organizing Network |
Supported |
| Scenario-Based Configuration |
Supported |
| Portal Authentication |
Supported |
| PERFORMANCE |
| Throughput |
600Mbps |
| Concurrent Clients |
Up to 200 |
| IPSec Tunnels |
Up to 1,000 |
| GENERAL |
| Dimensions |
440 × 200 × 43.6mm |
| Mounting |
Rack-Mountable |
| Installation |
19-inch Rack |

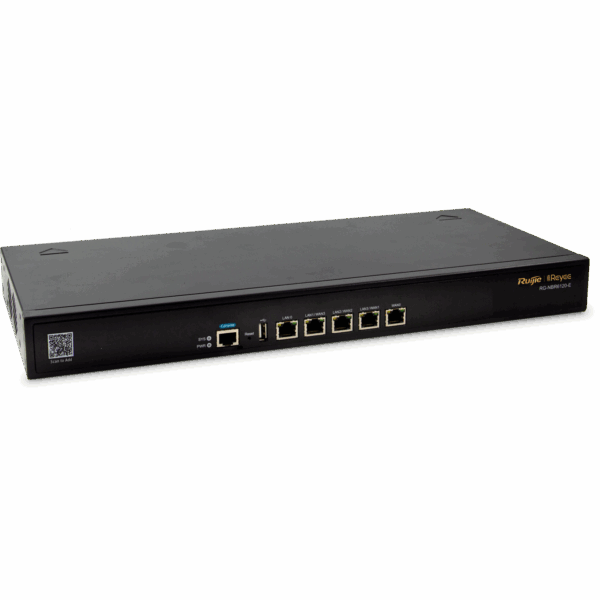

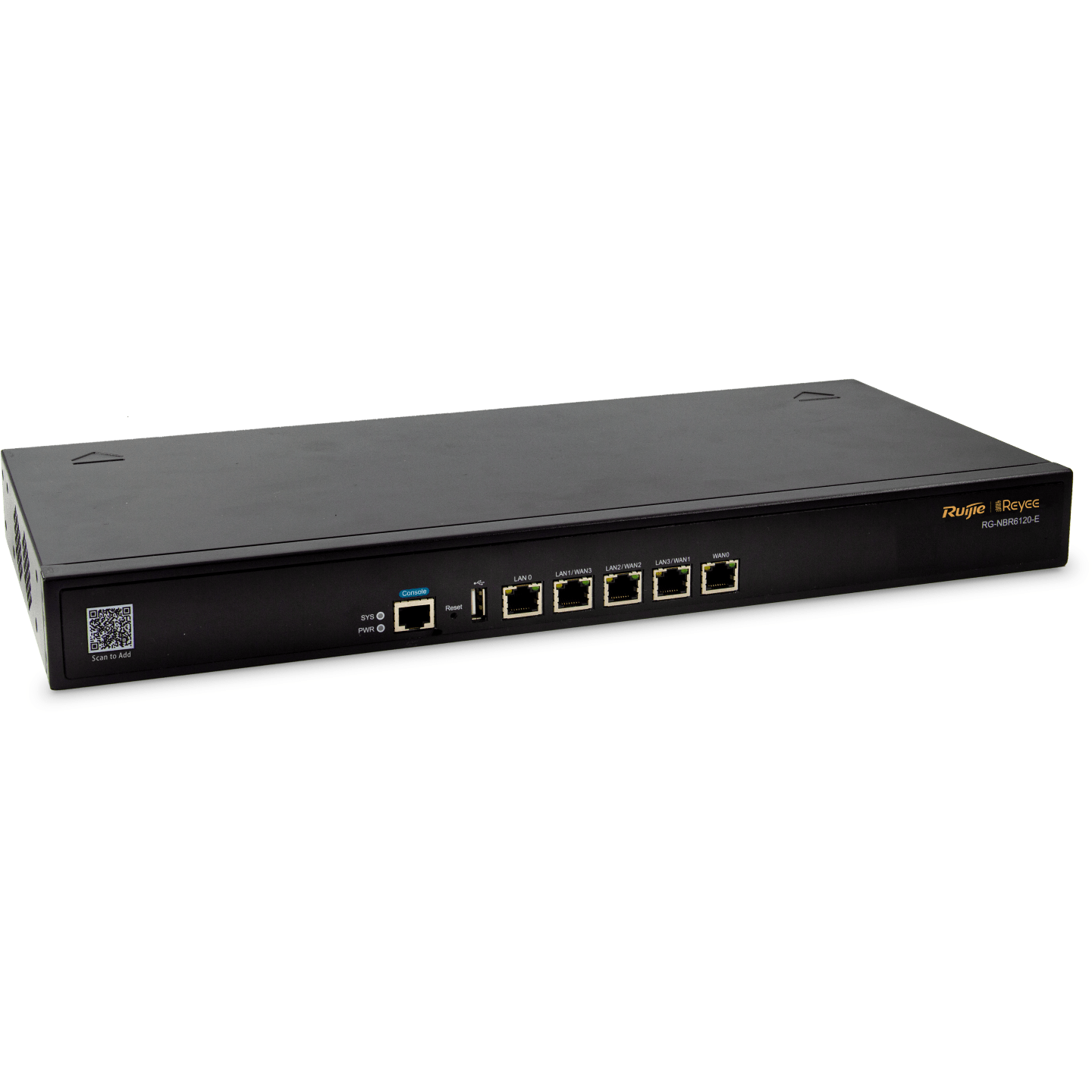

Note: The Reyee RG-NBR6120-E is a high-performance cloud-managed security router featuring 5 Gigabit Ethernet ports, 600Mbps throughput, support for up to 200 concurrent clients, Layer 7 DPI, intelligent flow control, cloud management and up to 1,000 IPSec VPN tunnels.
Important: The RG-NBR6120-E provides 1 fixed WAN + 1 fixed LAN + 3 WAN/LAN switchable Gigabit ports. It is a rack-mountable security gateway rather than a Wi-Fi router, so wireless connectivity requires a separate Access Point.
