| Features |
Description |
| Device Type |
48-Port Gigabit Layer 2+ / Layer 3 Managed Switch (Non-PoE) |
| Brand / Series |
Ruijie Reyee / NBS5200 Managed Switch Series |
| Downlink Ports |
48 x 10/100/1000Base-T Ethernet ports |
| Uplink Ports |
4 x 10G SFP+ Optical slots |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
132 Mpps |
| Application |
Enterprise core networks, campus expansions, and high-density office local area networks (LAN) requiring robust 10G fiber uplinks |
| Routing & Management |
Supports Static Routing, VLANs, IGMP Snooping, Link Aggregation, and lifetime remote management via Ruijie Cloud app |
| Surge Protection |
6 kV professional port surge protection to mitigate lightning and electrical damage |
| Chassis Material |
19-inch rack-mountable industrial steel case |
| Warranty |
5-Year Standard Manufacturer Warranty |
| SMART FEATURES |
| Cloud-Managed Flexibility |
Zero-touch provisioning (SON) allows rapid deployment, remote monitoring, and network troubleshooting via mobile app or web platform anytime, anywhere |
| High-Speed 10G Uplinks |
Equipped with 4 high-performance 10G SFP+ slots to eliminate backbone bottlenecks and connect seamlessly to core switches or servers |
| Enterprise Security Policies |
Includes comprehensive security features such as storm control, port security, and 802.1X authentication to protect sensitive corporate data |
| Energy Efficient & Reliable |
Engineered with enterprise-class hardware components providing stable, quiet performance under heavy multi-user concurrent loads |
| GENERAL |
| Model Code |
RG-NBS5200-48GT4XS (US Version) |
| Power Supply |
Built-in AC Power Supply (100–240V, 50/60Hz) |

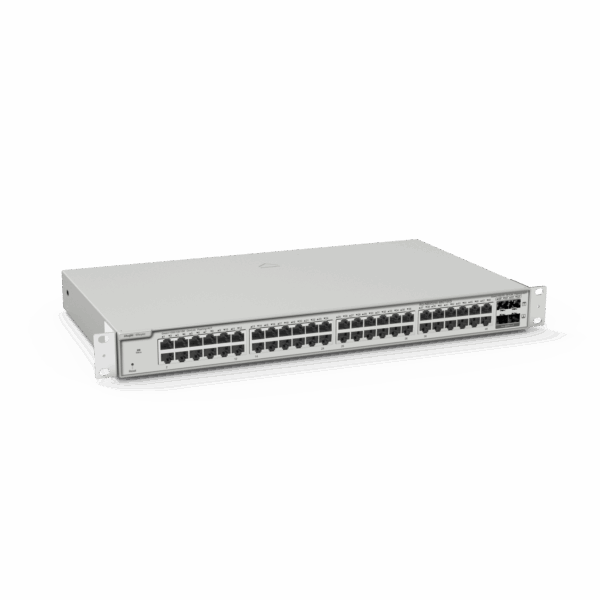

Note: The Ruijie Reyee RG-NBS5200-48GT4XS is a high-performance 48-port gigabit managed switch featuring four 10G SFP+ uplink slots. It delivers enterprise-grade reliability, advanced security, and convenient cloud manageability tailored for medium-to-large business deployments.
Important: Ensure proper rack ventilation and spacing around the side chassis vents to maintain optimal operating temperatures (0°C to 50°C) during heavy continuous operation.
