| Features |
Specifications |
| Product Type |
Layer 3 Multi-Gigabit Cloud Managed PoE++ Switch |
| RJ45 Ports |
8 × 10/100/1000/2500BASE-T |
| Uplink Ports |
2 × 10G SFP+ |
| PoE Ports |
8 × PoE++ |
| PoE Standard |
IEEE 802.3af/at/bt |
| PoE Budget |
370W |
| Maximum PoE Power per Port |
Up to 90W per port |
| Layer |
Layer 3 |
Network Performance
| Features |
Specifications |
| Switching Capacity |
80 Gbps |
| Forwarding Rate |
59.52 Mpps |
| MAC Address Table |
16,000 entries |
| ARP Table |
2,000 entries |
| Switching Cache |
12 Mbit |
| Maximum VLANs |
4,094 |
| Jumbo Frame |
9,216 bytes |
Layer 2 Features
| Features |
Specifications |
| VLAN |
IEEE 802.1Q VLAN, Port-based VLAN and Voice VLAN |
| STP |
IEEE 802.1D STP |
| Link Aggregation |
Up to 16 aggregation groups, up to 8 members per group |
| IGMP Snooping |
IGMP Snooping v1/v2 |
| LLDP |
LLDP / LLDP-MED |
| RLDP |
Supported |
| Port Isolation |
Supported |
| Storm Control |
Unknown Unicast, Multicast and Broadcast Storm Suppression |
| Port Mirroring |
Many-to-One Port Mirroring |
| Cable Testing |
Supported |
| Loop Prevention |
Supported |
Layer 3 & Security
| Features |
Specifications |
| Static Routing |
Supported |
| RIP |
RIP / RIPng |
| OSPF |
OSPFv2 / OSPFv3 |
| SVI |
Up to 32 IPv4 SVI and 32 IPv6 SVI |
| ACL |
IP Standard ACL, MAC-based Extended ACL and IP-based Extended ACL |
| DHCP |
DHCP Server, DHCP Client and DHCP Snooping |
| IP Source Guard |
Supported |
| IP-MAC-Port Binding |
Supported |
| Anti-ARP Spoofing |
Supported |
| 802.1X |
Supported |
| RADIUS |
Supported |
| DoS Protection |
Supported |
PoE Features
| Features |
Specifications |
| PoE Standard |
IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports |
8 |
| Total PoE Budget |
370W |
| Maximum Power per Port |
90W |
| PoE Watchdog |
Supported |
| PoE Application |
Wi-Fi 6 Access Points, IP Cameras, VoIP Phones and High-Power Network Devices |
Management
| Features |
Specifications |
| Cloud Management |
Ruijie Cloud |
| Web Management |
Supported |
| Management Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS |
| SON |
Self-Organizing Network |
| Camera Recognition |
Supported |
| VCS |
Supported |
| Management Features |
QoS, Port Mirroring, Cable Testing, Loop Detection and Network Monitoring |
Memory & Hardware
| Features |
Specifications |
| RAM |
512MB |
| Flash Memory |
256MB |
| Power Supply |
Single Fixed Power Supply |
| Input Voltage |
100–240V AC, 50/60Hz |
| Maximum Power Consumption |
450W |
| Cooling |
2 Fixed Fans |
| Airflow |
Left/Right to Rear |
| Acoustic Noise |
<40dB |
Physical & Environmental
| Features |
Specifications |
| Housing |
Metal |
| Installation |
Rack Mount |
| Dimensions (W × D × H) |
300 × 233 × 43.6 mm |
| Weight |
Approx. 2.5 kg |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-40°C to +70°C |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| Operating Altitude |
-500m to +5,000m |
| MTBF |
400,000 hours |
| Port Surge Protection |
±6kV Common Mode |
| ESD Protection |
6kV Contact / 8kV Air Discharge |
| Certification |
CE, RoHS |
| Warranty |
5 Years |

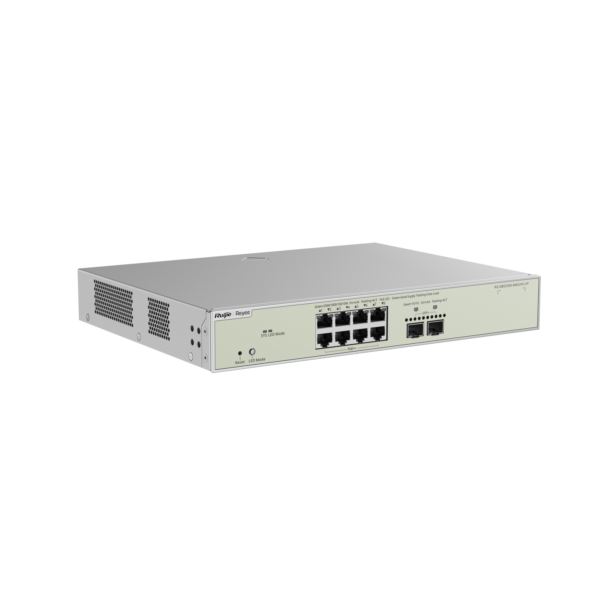

Note: The Ruijie Reyee RG-NBS5300-8MG2XS-UP is a Layer 3 Multi-Gigabit Cloud Managed Switch featuring 8 × 2.5G PoE++ ports, 2 × 10G SFP+ uplink ports, 370W PoE budget and up to 90W PoE output per port.
Important: Specifications are based on the official Ruijie Reyee RG-NBS5300-8MG2XS-UP product information and datasheet. Specifications may vary by firmware version or product revision.
