| Features |
Description |
| Product Type |
Industrial Layer 2 Managed PoE+ Switch |
| Series |
RG-NIS3100 Series Industrial Switch |
| Ethernet Ports |
4 × 10/100/1000BASE-T PoE+ |
| SFP Ports |
2 × 1000Mbps SFP |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
120W |
| Maximum PoE Output per Port |
30W |
| Switching Capacity |
12Gbps |
| Forwarding Rate |
8.93Mpps |
| Management |
Web / Ruijie Cloud / Reyee App |
| HARDWARE |
| Downlink Ports |
4 × 10/100/1000Mbps RJ45 PoE+ |
| Uplink Ports |
2 × 1000Mbps SFP |
| PoE Ports |
Ports 1–4 |
| PoE Standard |
IEEE 802.3af/at |
| Maximum PoE Output per Port |
30W |
| Total PoE Power Budget |
120W |
| MAC Address Table |
8K |
| SDRAM |
256MB |
| Flash Memory |
16MB |
| Packet Buffer |
4.1Mbit |
| PERFORMANCE |
| Switching Capacity |
12Gbps |
| Forwarding Rate |
8.93Mpps |
| Packet Buffer |
4.1Mbit |
| MAC Address Capacity |
8,000 |
| Maximum VLAN |
4,094 |
| Jumbo Frame |
9,216 bytes |
| NETWORK FEATURES |
| VLAN |
IEEE 802.1Q VLAN |
| Port-Based VLAN |
Supported |
| Voice VLAN |
Supported |
| Link Aggregation |
Static LAG |
| STP |
IEEE 802.1D STP |
| RSTP |
IEEE 802.1w RSTP |
| ERPS |
Supported |
| IGMP Snooping |
IGMP v1/v2/v3 |
| LLDP |
Supported |
| LLDP-MED |
Supported |
| Port Mirroring |
Many-to-One Mirroring |
| Flow Control |
Supported |
| Cable Detection |
Supported |
| Loop Prevention |
Supported |
| Broadcast Storm Suppression |
Supported |
| Unknown Unicast Storm Suppression |
Supported |
| POE FEATURES |
| PoE Standard |
IEEE 802.3af / 802.3at |
| PoE Budget |
Up to 120W |
| Maximum Power per Port |
30W |
| PoE Power Pins |
1–2 (+), 3–6 (-) |
| PoE Watchdog |
Supported |
| PoE Device Detection |
Automatic |
| PoE Usage Alarm |
Supported |
| Remote Camera Reboot |
Supported via PoE Watchdog |
| 250m Extend Mode |
Supported |
| SECURITY |
| ACL |
IP Standard ACL / MAC-based Extended ACL / IP-based Extended ACL |
| Port Isolation |
Supported |
| IP Source Guard |
Supported |
| Anti-ARP Spoofing |
Supported |
| DHCP Snooping |
Supported |
| 802.1X |
Supported |
| AAA |
Supported |
| Broadcast Storm Control |
Supported |
| MANAGEMENT |
| Cloud Management |
Ruijie Cloud |
| Mobile Management |
Reyee App / SON |
| Web Management |
Supported |
| SNMP |
SNMP v1/v2c/v3 |
| HTTP / HTTPS |
Supported |
| Network Diagnosis |
Ping / Traceroute |
| DDM |
Digital Diagnostics Monitoring |
| Camera Recognition |
Supported |
| SON |
Self-Organizing Network |
| INDUSTRIAL & ENVIRONMENTAL |
| Industrial Grade |
True Industrial-Grade Design |
| ESD Protection |
8kV |
| Service Port Surge Protection |
±6kV Common Mode |
| Power Connector Surge Protection |
±4kV Common Mode / ±2kV Differential Mode |
| Protection Rating |
IP40 |
| Salt Spray Resistance |
Supported |
| Cooling |
Fanless Design |
| Operating Temperature |
-40°C to +65°C in enclosed cabinet; up to +80°C with appropriate forced-air ventilation |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5%–95% RH, Non-Condensing |
| Operating Altitude |
-500m to 5,000m |
| MTBF |
400,000 Hours |
| POWER & GENERAL |
| Power Supply |
Dual 12–56V DC Power Inputs |
| Input Voltage |
12–56V DC |
| Rated Current |
7A |
| Power Consumption Without PoE Load |
12W |
| Maximum Power Consumption |
132W with PoE load at 21–56V DC |
| Dimensions |
165 × 132 × 85mm |
| Installation |
DIN-Rail / Wall Mounting |
| Design |
Fanless Industrial Design |
| Shipping Weight |
1.86kg |
| Warranty |
5 Years |

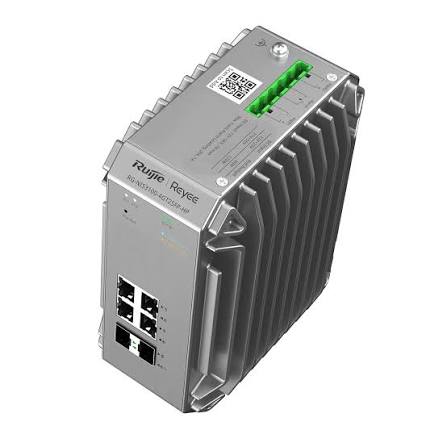

Note: The Reyee RG-NIS3100-4GT2SFP-HP is an industrial-grade Layer 2 managed PoE+ switch designed for harsh environments such as factories, CCTV installations, outdoor cabinets and coastal areas. It features 4 × 10/100/1000BASE-T PoE+ ports and 2 × Gigabit SFP uplink ports, with a total PoE budget of up to 120W. It provides 12Gbps switching capacity and 8.93Mpps forwarding performance, and supports VLAN, STP/RSTP, ERPS, IGMP Snooping, Link Aggregation, ACL, DHCP Snooping, PoE Watchdog and 250m Extend Mode.
Important: The Reyee RG-NIS3100-4GT2SFP-HP is a True Industrial-Grade Layer 2 Managed PoE+ Switch featuring 4 × Gigabit PoE+ ports and 2 × Gigabit SFP uplink ports. It provides a 120W PoE power budget with up to 30W per port, supports IEEE 802.3af/at, VLAN, STP/RSTP, ERPS, IGMP Snooping, Link Aggregation, ACL, DHCP Snooping, PoE Watchdog and 250m Extend Mode. The switch uses dual 12–56V DC power inputs, has 8kV ESD protection, ±6kV common-mode service-port surge protection and a fanless industrial design. It can operate from -40°C to +65°C in an enclosed cabinet, with operation up to +80°C under specified forced-air conditions. The device has a 5-year warranty.
