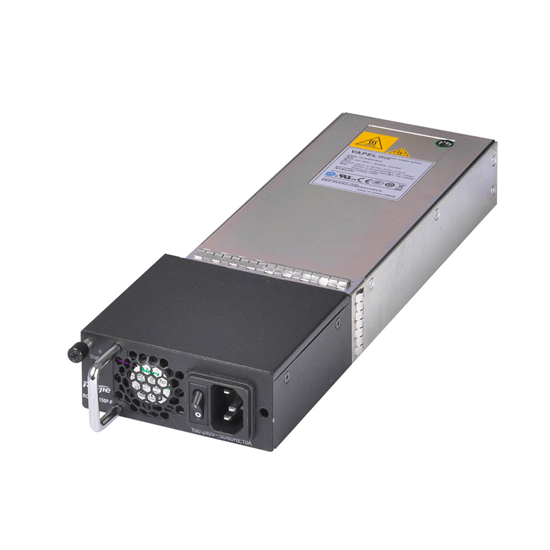

Specifications Ruijie RG-PA1000I-P-F
| Features | Description |
|---|---|
| Product Type | AC PoE Power Supply Module |
| Model | RG-PA1000I-P-F |
| Input Type | AC / HVDC |
| Output Voltage | 56V DC |
| Maximum Output Power | Up to 1000W |
| PoE Power | Up to 740W |
| Hot-Swappable | Supported |
| Power Redundancy | Supported |
| POWER INPUT | |
|---|---|
| Rated AC Input | 100–240V AC, 50–60Hz |
| Rated HVDC Input | 240V DC |
| Maximum AC Input Range | 90–264V AC, 47–63Hz |
| Maximum HVDC Input Range | 192–290V DC |
| Maximum Input Current | 12A at 90V AC / 8A at 176V AC |
| Input Leakage Current | ≤ 1.75mA |
| POWER OUTPUT | |
|---|---|
| Output Voltage | 56V DC |
| Maximum Output Current | 16.61A at 90–176V AC / 17.86A at 176–290V AC |
| Maximum Output Power | 930W at 90–176V AC / 1000W at 176–290V AC |
| PoE Output Power | Up to 740W |
| POWER MANAGEMENT | |
|---|---|
| Power Redundancy | Supported |
| Load Sharing | Supported with Dual Power Modules |
| Hot Swap | Supported |
| I²C Communication | Supported |
| Power Supply Alarm | Supported |
| PROTECTION | |
|---|---|
| Undervoltage Protection | Supported |
| Output Overcurrent Protection | Supported |
| Output Overvoltage Protection | Supported |
| Short-Circuit Protection | Supported |
| Overheat Protection | Supported |
| Conformal Coating | Supported |
| LED INDICATOR | |
|---|---|
| Power Module LED | 1 × Output Status LED |
| Green | Power Output Normal |
| Red | Power Output Error or Protection Fault |
| Off | Power Module Not Connected to Power Cord |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions (W × D × H) | 196 × 90 × 40 mm |
| Weight | 1 kg |
| Airflow | Rear-to-Front |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 5% ~ 95% RH, Non-condensing |
| Storage Humidity | 5% ~ 95% RH, Non-condensing |
| Operating Altitude | -500m ~ 5,000m |
| COMPATIBILITY | |
|---|---|
| RG-S5310-E Series | RG-S5310-24GT4XS-P-E, RG-S5310-48GT4XS-P-E |
| RG-S5760C-X Series | RG-S5760C-48GT4XS-HP-X |
| RG-S6100 Series | RG-S6110-48MG4VS2QXS-UP, RG-S6120-24XMG4XS4VS-UP-H, RG-S6120-48XMG4VS2QXS-UP-H |
| RG-CS85 Series | RG-CS85-48GT4XS-HPD |
| RG-CS83-PD Series | RG-CS83-24GT4XS-PD, RG-CS83-48GT4XS-PD |
| RG-CS86 Series | RG-CS86-48MG4VS2QXS-UPD, RG-CS86-24XMG4XS4VS-UPD |
Note: RG-PA1000I-P-F is a 1000W AC PoE power supply module with AC/HVDC input and 56V DC output. It supports hot swapping, power redundancy, load sharing and I²C communication.
Important: The maximum output is 930W at 90–176V AC input and 1000W at 176–290V AC input. Power redundancy is supported when the PoE power consumption is below 740W.
