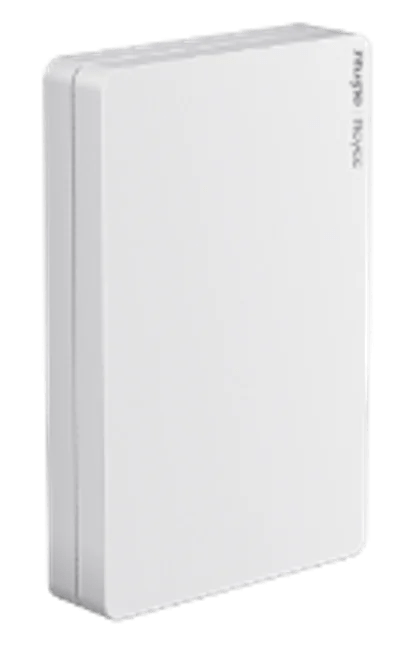

Specifications Ruijie Reyee RG-RAP1260
| Features | Specifications |
|---|---|
Wireless |
|
| Product Type | Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Design | Dual-Radio, 4 Spatial Streams |
| 2.4GHz | 2×2 MU-MIMO, up to 573Mbps |
| 5GHz | 2×2 MU-MIMO, up to 2401Mbps |
| Maximum Wireless Data Rate | Up to 2974Mbps |
| 6GHz | Not Supported |
| Antennas | Built-in Omnidirectional Antennas |
| Wireless Features | MU-MIMO, OFDMA, Reyee Mesh, 802.11k/v/r Roaming |
Network & Ports |
|
| Ethernet Ports | 5×10/100/1000BASE-T |
| Port Configuration | 1×Gigabit PoE Input + 4×Gigabit Ethernet Ports |
| Management | Reyee App / Ruijie Cloud |
| Maximum Managed Devices | Up to 300 Devices |
| Maximum Associated Clients | 64 at 2.4GHz, 256 at 5GHz, 256 with Both Bands Enabled |
| IPv6 | Supported |
Power |
|
| Power Supply | PoE / PoE+ |
| Local Power Supply | Not Supported |
| Maximum Power Consumption | 12W |
Physical & Environmental |
|
| Mounting | Wall / Junction Box |
| Operating Temperature | 0°C to 40°C |
| IP Rating | IP41 |
| Dimensions | 86 × 24 × 124mm, Excluding Mounting Bracket |
| Weight | ≤0.26kg |
| Color | White |
Note: The Ruijie Reyee RG-RAP1260 is a Wi-Fi 6 AX3000 dual-band wall-mounted access point designed for hotels, homes, offices and similar environments. It provides up to 2974Mbps combined wireless data rate, with 573Mbps on 2.4GHz and 2401Mbps on 5GHz. The AP features 2×2 MU-MIMO on both bands, five Gigabit Ethernet ports, PoE/PoE+ power input, Reyee Mesh support and cloud-based management through Ruijie Cloud and the Reyee App.
