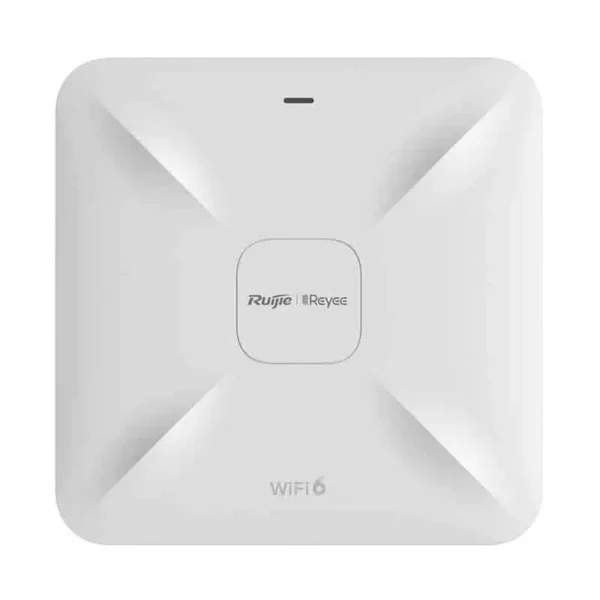

RG-RAP2260

Ruijie Reyee RG-RAP2260

Wi-Fi 6 AX3000 Ceiling-Mount Access Point

Dual-band Wi-Fi 6 AX3000 with speeds up to 2.97Gbps
1×2.5GbE Ethernet port with 802.3at PoE+ and DC power support
Supports Reyee Mesh, AI Roaming and standalone captive portal
Supports up to 512 wireless clients (130 recommended)
Cloud management via Ruijie Cloud and Reyee App
Ceiling-mount design ideal for offices, hotels and schools

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), Access Point, Ruijie ป้ายกำกับ: Reyee

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications Ruijie Reyee RG-RAP2260

Features	Description
Device Type	Wi-Fi 6 AX3000 Dual-Band Indoor Ceiling-Mount Access Point
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Wireless Speed	Up to 2976Mbps (574Mbps @ 2.4GHz + 2402Mbps @ 5GHz)
Radio Design	Dual-Radio 2×2 MU-MIMO (2.4GHz & 5GHz)
Ethernet Ports	2 × 10/100/1000/2500BASE-T 2.5GbE RJ45 Ports
Power Supply	IEEE 802.3at PoE+ or 12V DC Adapter
Maximum Clients	Up to 512 Concurrent Wireless Clients (130 Recommended)
Management	Ruijie Cloud, Reyee App, Web Management and SNMP
Mounting	Ceiling or Wall Mount
Application	Enterprise, Office, Hotel, School, Retail Store and High-Density Wireless Networks

Access Point Type	Indoor Wi-Fi 6 Ceiling Access Point
Ethernet Interface	2 × 2.5 Gigabit RJ45 Ports
Antenna	Built-in Omnidirectional Antennas
Maximum Power Consumption	≤20W
Installation	Ceiling / Wall Mount
Protection Rating	IP41

SMART FEATURES
Wi-Fi 6 Technology	Supports OFDMA, MU-MIMO, Beamforming and 160MHz Channel Bandwidth
Cloud Management	Lifetime Free Remote Management via Ruijie Cloud and Reyee App
Mesh Networking	Supports Reyee Mesh for Seamless Wireless Expansion
Roaming	Supports AI Roaming, Layer 2/Layer 3 Roaming and 802.11k/v/r
Portal Authentication	Supports Standalone Cloud Portal Authentication
Security	Supports WPA3, OWE, 802.1X Authentication, VLAN and Layer 2 Isolation
AI Optimization	Supports AI Wireless Optimization and Automatic Channel/Power Adjustment
Management Features	Supports Remote Monitoring, Firmware Upgrade, Self-Organizing Network (SON) and Cloud Configuration

GENERAL
Power Supply	IEEE 802.3at PoE+ or 12V DC Adapter
Operating Temperature	0°C to 40°C
Dimensions	230 × 230 × 49.5mm
Weight	≤1.8kg
Warranty	3 Years

Note: The RG-RAP2260 is a Wi-Fi 6 AX3000 high-performance ceiling-mount access point featuring dual 2.5GbE ports, dual-band 2×2 MU-MIMO, Reyee Mesh, AI roaming, and lifetime Ruijie Cloud management. It is designed for enterprise and high-density wireless deployments. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-RAP2260 is a Wi-Fi 6 AX3000 Ceiling Access Point with dual 2.5GbE ports, up to 2976Mbps, Reyee Mesh, AI roaming, WPA3, and Ruijie Cloud management—ideal for enterprise and high-density wireless networks.
