| Features |
Description |
| Device Type |
Wi-Fi 6 AX3000 Dual-Band Indoor Ceiling-Mount Access Point |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wireless Speed |
Up to 2976Mbps (574Mbps @ 2.4GHz + 2402Mbps @ 5GHz) |
| Radio Design |
Dual-Radio 2×2 MU-MIMO (2.4GHz & 5GHz) |
| Ethernet Port |
1 × 10/100/1000BASE-T Gigabit RJ45 Port |
| Power Supply |
IEEE 802.3at PoE or 12V DC Adapter (Optional) |
| Maximum Clients |
Up to 512 Concurrent Wireless Clients (110 Recommended) |
| Management |
Ruijie Cloud, Reyee App and Web Management |
| Mounting |
Ceiling Mount |
| Application |
Hotel, Office, School, Restaurant, Retail Store and SMB Networks |
| Access Point Type |
Indoor Ceiling-Mount Wi-Fi 6 Access Point |
| Ethernet Interface |
1 × Gigabit RJ45 Port |
| Antenna |
Built-in Omnidirectional Antennas |
| Maximum Power Consumption |
≤18W |
| Installation |
Ceiling Mount |
| Housing |
Round Compact Design |
| SMART FEATURES |
| Wi-Fi 6 Technology |
Supports OFDMA, MU-MIMO, Beamforming and 160MHz Channel Bandwidth |
| Cloud Management |
Lifetime Free Remote Management via Ruijie Cloud and Reyee App |
| Mesh Networking |
Supports Reyee Mesh for Flexible Wireless Expansion |
| Roaming |
Supports Layer 2/Layer 3 Roaming and 802.11k/v |
| Portal Authentication |
Supports Standalone Cloud Portal Authentication |
| Security |
Supports WPA3, WPA2, VLAN and Access Control |
| AI Optimization |
Supports Automatic Channel and Power Optimization via Cloud |
| Management Features |
Supports Remote Monitoring, Firmware Upgrade and Self-Organizing Network (SON) |
| GENERAL |
| Power Supply |
IEEE 802.3at PoE or 12V DC Adapter (Optional) |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
220 × 220 × 52.6mm |
| Weight |
≤0.55kg |
| Warranty |
3 Years |

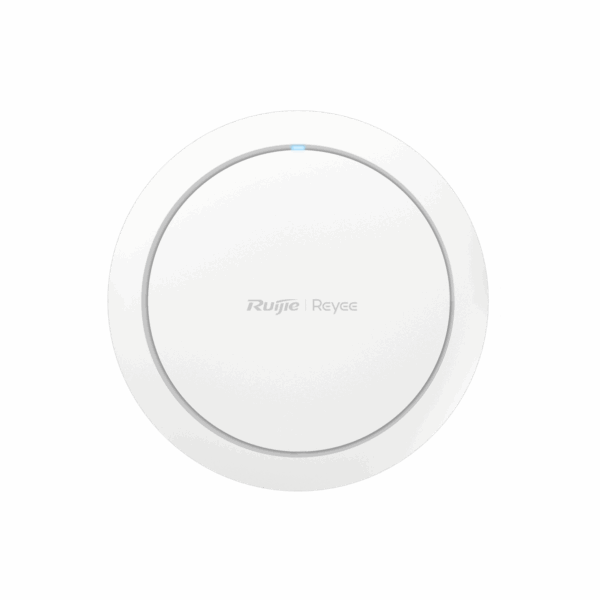

Note: The RG-RAP2266 is a Wi-Fi 6 AX3000 ceiling-mount access point featuring dual-band 2×2 MU-MIMO, Gigabit Ethernet, Reyee Mesh, cloud management, and standalone cloud portal authentication. It is designed for high-performance wireless deployments in hotels, offices, schools, and commercial environments. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-RAP2266 is a Wi-Fi 6 AX3000 Ceiling Access Point with up to 2976Mbps, Reyee Mesh, Layer 2/3 roaming, WPA3, and Ruijie Cloud management—ideal for hotels, offices, schools, and SMB wireless networks.
