| Features |
Description |
| Product Type |
Outdoor Wi-Fi 6 Access Point |
| Wireless Standard |
IEEE 802.11ax/ac/n/a/g/b |
| Wi-Fi Class |
AX6000 |
| Radio Design |
Dual-Radio, 8 Spatial Streams |
| 2.4 GHz |
4 × 4 MU-MIMO, Up to 1147 Mbps |
| 5 GHz |
4 × 4 MU-MIMO, Up to 4803 Mbps |
| Maximum Wireless Data Rate |
Up to 5950 Mbps |
| Channel Width |
Up to 160 MHz |
| Antenna |
8 × Built-in Omnidirectional Antennas |
| Antenna Gain |
2.4 GHz: 3 dBi / 5 GHz: 4 dBi |
| Network & Interface |
Description |
| Ethernet Port |
1 × 10/100/1000/2500BASE-T |
| SFP Port |
1 × 1GE SFP |
| Mesh |
Reyee Mesh |
| Cloud Management |
Reyee Cloud |
| IPv6 |
Supported |
| Power & Environment |
Description |
| Power Supply |
DC Adapter / PoE+ / PoE++ |
| DC Input |
48 V, 1 A |
| Maximum Power Consumption |
40 W |
| Operating Temperature |
-40°C to +65°C |
| IP Rating |
IP68 |
| Surge Protection |
±4 kV |
| Mounting |
Wall / Pole |
| Physical |
Description |
| Dimension |
300 × 300 × 75.5 mm (Without Mounting Bracket) |
| Color |
White |
| Weight |
≤3.5 kg |
| Maximum Associated Clients |
64 (2.4 GHz), 512 (5 GHz), 512 Total When Both Bands Enabled |

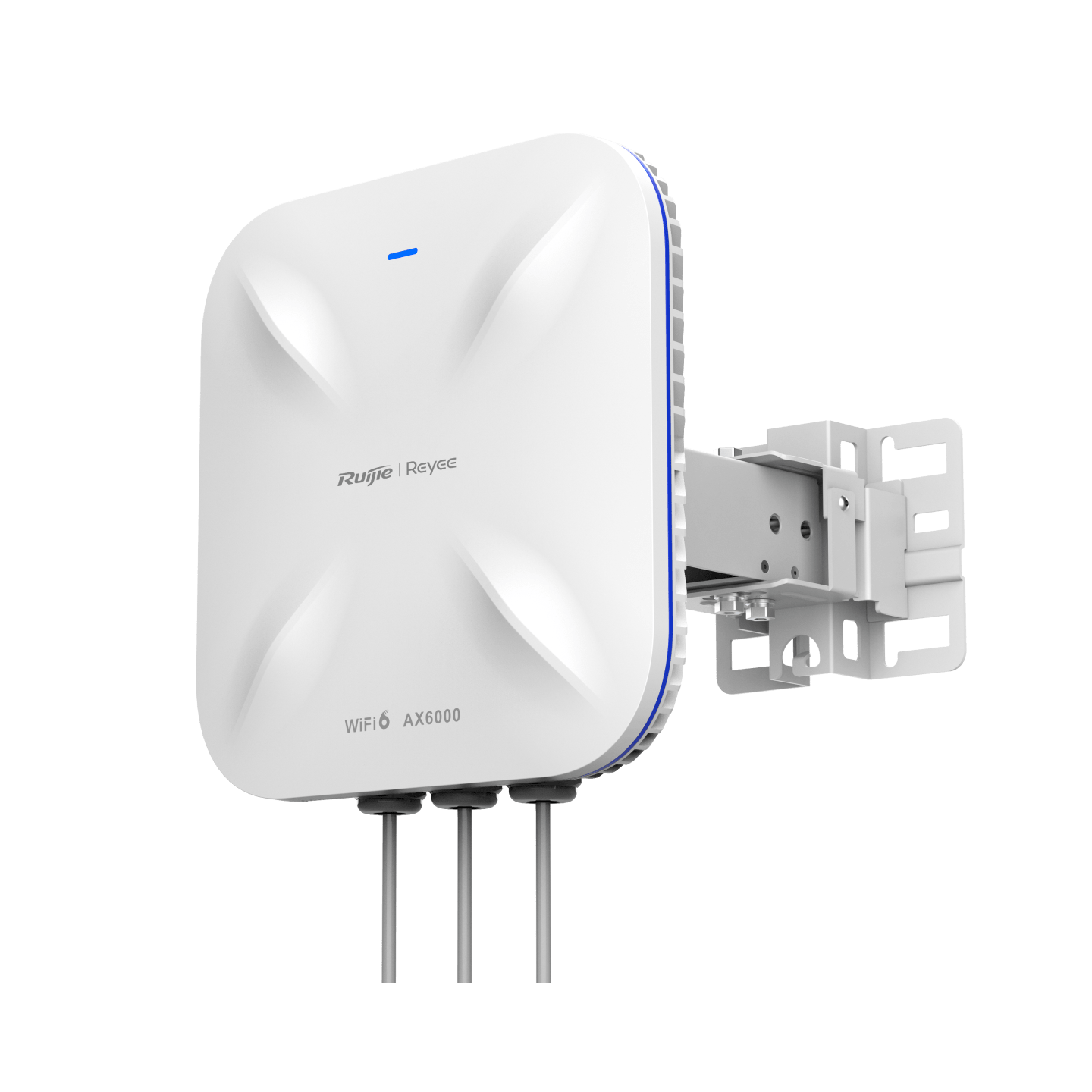

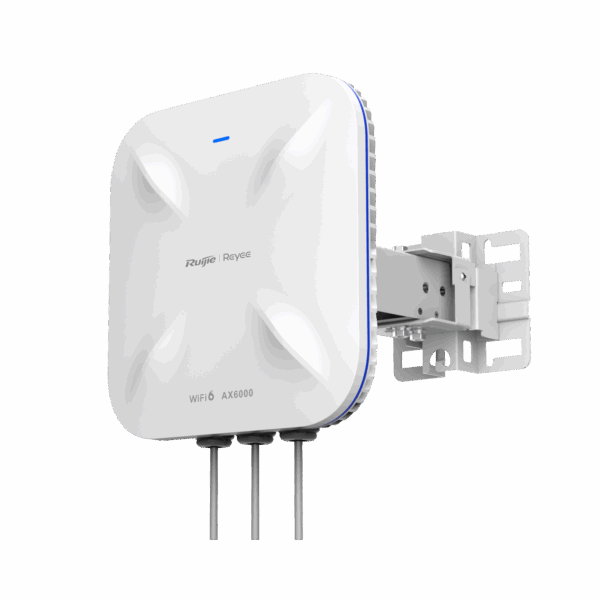

Note: The Ruijie Reyee RG-RAP6260(H) is an AX6000 outdoor Wi-Fi 6 access point featuring dual-band 4 × 4 MU-MIMO, up to 5950 Mbps wireless throughput, a 2.5GbE Ethernet port, 1GE SFP port, Reyee Mesh, cloud management, IP68 protection, and ±4 kV surge protection. It is designed for high-density outdoor wireless deployments.
