| Features |
Description |
| Product Type |
10GE Data Center Access Switch |
| Series |
RG-S6200 Series Data Center Switch |
| Service Ports |
48 × 1G/10G SFP+ + 8 × 40G/100G QSFP28 |
| Switching Capacity |
2.56Tbps |
| Forwarding Rate |
1,920Mpps |
| VLAN |
Up to 4,094 VLANs |
| Redundancy |
1+1 Power Redundancy / 3+1 Fan Redundancy |
| Management |
SNMP / Web / CLI / SSH / Telnet / Telemetry / NETCONF |
| HARDWARE |
| 10GE Ports |
48 × 1G/10G SFP+ |
| 100GE Ports |
8 × 40G/100G QSFP28 |
| Management Port |
1 × RJ45 Management Port |
| Console Port |
1 × RJ45 Console Port |
| USB Port |
1 × USB 2.0 Type-A |
| Power Module Slots |
2 × Power Module Slots |
| Fan Module Slots |
4 × Fan Module Slots |
| Rack Height |
1U |
| PERFORMANCE |
| Switching Capacity |
2.56Tbps |
| Forwarding Rate |
1,920Mpps |
| Packet Buffer |
Large Buffer with Advanced Buffer Scheduling |
| Jumbo Frame |
Up to 9KB |
| MAC Address Table |
128K |
| ARP Table |
80K |
| IPv4 Route Table |
Up to 740K |
| IPv6 Route Table |
Up to 140K |
| LAYER 2 FEATURES |
| VLAN |
IEEE 802.1Q, up to 4,094 VLANs |
| Link Aggregation |
Static LAG / LACP / M-LAG |
| STP |
STP / RSTP / MSTP |
| STP Protection |
Root Guard / BPDU Guard |
| IGMP Snooping |
IGMP Snooping v1/v2 |
| MLD Snooping |
Supported |
| QinQ |
IEEE 802.1ad QinQ / Selective QinQ |
| GVRP |
Supported |
| LLDP |
Supported |
| Jumbo Frame |
Up to 9KB |
| Port Modes |
Access / Trunk / Hybrid |
| LAYER 3 FEATURES |
| Static Routing |
Supported |
| BGP4 |
Supported |
| OSPFv2 |
Supported |
| IS-IS |
Supported |
| RIP |
RIPv1 / RIPv2 |
| Policy-Based Routing |
Supported |
| ECMP |
Supported |
| WCMP |
Supported |
| VRRP |
Supported |
| IPv4 Multicast |
IGMP v1/v2/v3 / PIM-SSM / PIM-SM / PIM-DM |
| BFD |
BFD for BGP / IS-IS / OSPF / Static Routing |
| GRE Tunnel |
Supported |
| IPV6 FEATURES |
| IPv6 Static Routing |
Supported |
| OSPFv3 |
Supported |
| RIPng |
Supported |
| BGP4+ |
Supported |
| IS-ISv6 |
Supported |
| IPv6 VRRP |
Supported |
| MLDv1/v2 |
Supported |
| PIM-SMv6 |
Supported |
| IPv4 over IPv6 Tunnel |
Supported |
| ISATAP Tunnel |
Supported |
| DATA CENTER FEATURES |
| VXLAN |
VXLAN Routing / VXLAN Bridging |
| EVPN VXLAN |
Supported |
| VXLAN Mapping |
Supported |
| M-LAG |
Supported |
| VSU |
Supported |
| De-stacking |
Supported |
| RDMA |
Supported |
| RoCEv2 |
Supported |
| PFC |
Priority Flow Control |
| ECN |
Explicit Congestion Notification |
| Lossless Ethernet |
Supported |
| QOS & TRAFFIC MANAGEMENT |
| QoS Classification |
IEEE 802.1p / ToS / DSCP |
| ACL Traffic Classification |
Supported |
| Priority Tagging |
Mark / Remark |
| Queue Scheduling |
SP / WRR / DRR / SP+WRR / SP+DRR |
| Congestion Avoidance |
WRED / Tail Drop |
| Rate Limiting |
Ingress / Egress Port-based Rate Limiting and CAR |
| Microburst Detection |
Supported |
| SECURITY |
| Network Foundation Protection |
NFPP |
| CPU Protection |
CPP |
| DoS / DDoS Protection |
Supported |
| ACL |
Basic / Extended / Port-based / VLAN-based ACL |
| IPv6 ACL |
Supported |
| DHCP Snooping |
Supported |
| ARP Protection |
ARP Anti-Spoofing / ARP Check |
| IP Spoofing Defense |
Supported |
| uRPF |
Supported |
| RADIUS |
Supported |
| TACACS+ |
Supported |
| Broadcast Suppression |
Supported |
| MANAGEMENT & MONITORING |
| SNMP |
SNMP v1/v2c/v3 |
| CLI |
Console / Telnet / SSH |
| Web Management |
Supported |
| RMON |
Supported |
| Telemetry |
Supported |
| gRPC |
Supported |
| sFlow |
Supported |
| IPFIX |
Supported |
| SPAN |
SPAN / RSPAN / ERSPAN |
| NETCONF |
Supported |
| Zero Touch Provisioning |
ZTP Supported |
| Syslog |
Supported |
| Configuration Rollback |
Supported |
| HIGH AVAILABILITY |
| Power Redundancy |
1+1 Redundant Power Supply |
| Fan Redundancy |
3+1 Redundant Fan Modules |
| M-LAG |
Supported |
| VSU |
Supported |
| VRRP |
Supported |
| BFD |
Supported |
| Hot-Swappable Power Modules |
Supported |
| Hot-Swappable Fan Modules |
Supported |
| POWER & GENERAL |
| Power Supply |
2 × Power Modules, 1+1 Redundancy |
| Power Module |
RG-PA550I-F 550W AC/HVDC Power Module |
| Maximum Power Consumption |
300W |
| Typical Power Consumption |
165W |
| Static Power Consumption |
98W |
| Cooling |
Air Cooling, Front-to-Rear Airflow |
| Dimensions |
442 × 387 × 44mm |
| Installation |
1U Rack Mounting |
| Net Weight |
5.6kg Empty Chassis / 8.2kg with 2 Power Modules and 4 Fan Modules |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
| Operating Altitude |
Up to 5,000m |

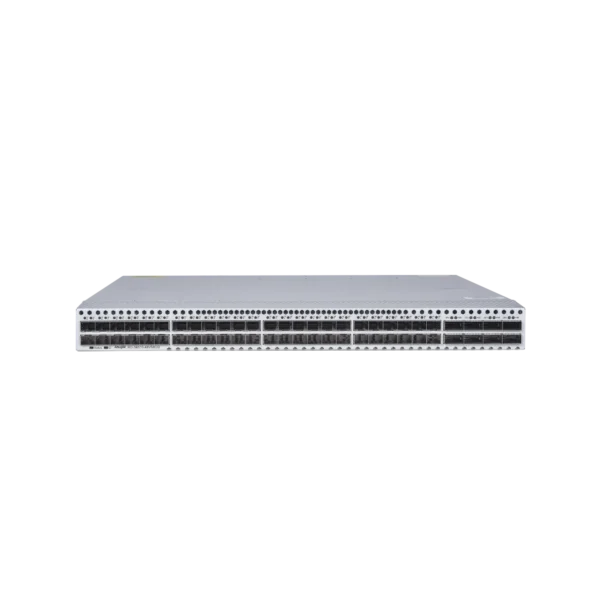

Note: The Ruijie RG-S6250-48XS8CQ is a high-performance, high-density 10GE Data Center Access Switch designed for cloud data centers and high-end campus networks. It provides 48 × 1G/10G SFP+ ports and 8 × 40G/100G QSFP28 ports, delivering 2.56Tbps switching capacity and 1,920Mpps forwarding performance. It supports M-LAG, VSU, De-stacking, VXLAN/EVPN, RDMA, RoCEv2, PFC and ECN for high-performance and lossless data center networking.
Important: The Ruijie RG-S6250-48XS8CQ is a 10GE Data Center Access Switch featuring 48 × 1G/10G SFP+ ports and 8 × 40G/100G QSFP28 ports. It provides 2.56Tbps switching capacity and 1,920Mpps forwarding rate. The switch supports IEEE 802.1Q VLAN, LACP, M-LAG, VSU, VXLAN, EVPN VXLAN, BGP, OSPF, IS-IS, ECMP, VRRP, RDMA, RoCEv2, PFC and ECN. It also features 1+1 power redundancy and 3+1 fan redundancy, with hot-swappable power and fan modules. The 1U chassis measures 442 × 387 × 44mm and has maximum power consumption of 300W.
