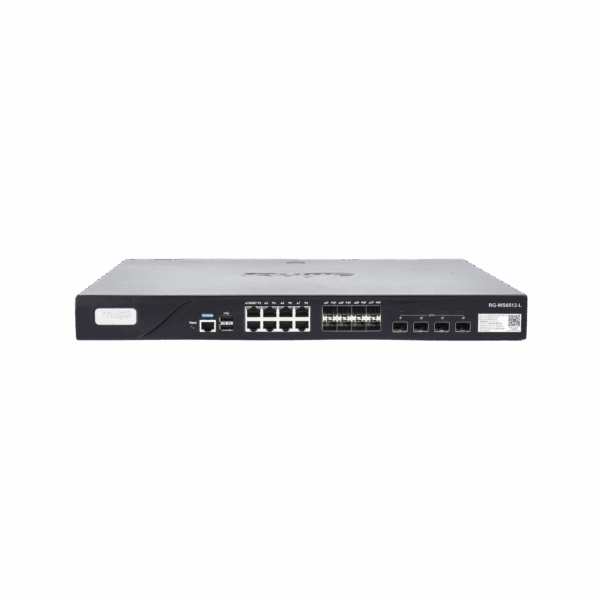

Specifications Ruijie RG-WS6512-L

Features	Description
Product Type	High-Performance Wireless Access Controller
Series	RG-WS Series Wireless Access Controller
Manageable APs	128 APs by default, up to 1,152 Generic APs or 2,304 Wall-mounted APs with License
Maximum Configurable APs	4,096
Maximum Managed Users	32,768
Forwarding Capacity	40Gbps
Management	Web / Ruijie Management Platforms / Console / SSH / Telnet

HARDWARE
Combo Ports	8 × GE Combo Ports (10/100/1000BASE-T or SFP)
10GE Uplink Ports	4 × 10GE SFP+ Ports
Management Port	1 × 10/100/1000BASE-T RJ45
Console Port	1 × RJ45 Console
USB Ports	2 × USB
Reset Button	1 × Reset Button
CPU	16-Core Processor
Status LEDs	1 × System Status LED + 20 × Service Port LEDs

PERFORMANCE
Default Managed APs	128
Maximum Managed APs	1,152 Generic APs / 2,304 Wall-mounted APs
Maximum Configurable APs	4,096
Maximum Managed Users	32,768
Wireless Forwarding Capacity	40Gbps
VLAN	Up to 4,096
ACL	128K
MAC Address Table	128K
ARP Table	80K
Built-in Portal Users	Up to 7,500
Intra-AC Roaming	<50ms

WIRELESS FEATURES
Supported WLAN Standards	802.11a/b/g/n/ac/ax/be
Centralized Forwarding	Supported
Local Forwarding	Supported
Business-Based Forwarding	Supported
2.4GHz / 5GHz Band Steering	Supported
AP Load Balancing	Supported
STA Load Balancing	Supported
RF Management	Automatic Channel / Power Adjustment and RF Interference Detection
Fast Roaming	Supported
Layer 2 / Layer 3 Roaming	Supported
CAPWAP	Supported, including NAT Traversal

NETWORK FEATURES
VLAN	Up to 4,096 VLANs
DHCP Server	Supported
DHCP Client	Supported
DHCP Relay	Supported
DHCP Snooping	Supported
Static Routing	Supported
RIP	Supported
OSPF	Supported
IPv6	Full IPv6 Support
RIPng	Supported
OSPFv3	Supported

SECURITY & AUTHENTICATION
Web Authentication	Supported
802.1X Authentication	Supported
SMS Authentication	Supported
QR Code Authentication	Supported
WPA3	Supported
WPA2 / PSK	Supported
WEP / TKIP	Supported
DPI	Supported, identifying 2,500+ applications
User Isolation	Supported
Dynamic Network Isolation	Supported
Portal Authentication	Built-in Portal Server

QOS & USER MANAGEMENT
AP Bandwidth Limiting	Supported
WLAN Bandwidth Limiting	Supported
User Bandwidth Limiting	Static and Intelligent Rate Limiting
Fair Scheduling	Supported
AP Load Balancing	Supported
5GHz Priority	Supported
RSSI Threshold	0–100
STA Idle Timeout	60–86,400 seconds

RELIABILITY
AC Virtualization	Supported
Dual-AC Fast Failover	Supported
Multi-AC Hot Backup	1:1 A/A, 1:1 A/S and N:1
Multi-AC Cluster	N:N
Business Continuity Upgrade	Supported
Intelligent Edge Awareness	Supported

MANAGEMENT
Web Management	eWeb
Centralized Management	Ruijie Network Management Platforms
Console Management	Supported
Telnet	Supported
SSH	Supported
SNMP	V1 / V2c / V3
RMON	Supported
Syslog	Supported
Remote Probe	Supported

POWER & GENERAL
Power Supply	100–240V AC, 50/60Hz
Power Redundancy	Supports 2 Power Modules, 1 Included
Maximum Power Consumption	70W
Dimensions	440 × 340 × 43.6mm
Rack Height	1U
Net Weight	5.9kg (Main Unit) + 0.4kg (Power Module)
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10%–90% RH, Non-Condensing

Note: The Ruijie RG-WS6512-L is a high-performance wireless access controller designed for medium-to-large enterprise and campus wireless networks. It provides 8 × Gigabit combo ports and 4 × 10GE SFP+ ports, with 40Gbps forwarding capacity. The controller supports 128 APs by default and can be expanded through licenses to support up to 1,152 generic APs or 2,304 wall-mounted APs. It supports centralized and local forwarding, intelligent RF management, AP load balancing, fast Layer 2/Layer 3 roaming, IPv6, WPA3, 802.1X, Portal authentication and AC virtualization.

Important: The Ruijie RG-WS6512-L is a High-Performance Wireless Access Controller featuring 8 × Gigabit Combo ports and 4 × 10GE SFP+ ports. It provides 40Gbps wireless forwarding capacity and supports 128 APs by default, expandable up to 1,152 Generic APs or 2,304 Wall-mounted APs with the appropriate License. The controller supports centralized/local forwarding, Layer 2/Layer 3 roaming, AP load balancing, RF management, WPA3, 802.1X, Portal authentication, IPv6 and AC virtualization. It is housed in a 1U rack-mount chassis measuring 440 × 340 × 43.6mm with maximum power consumption of 70W.
