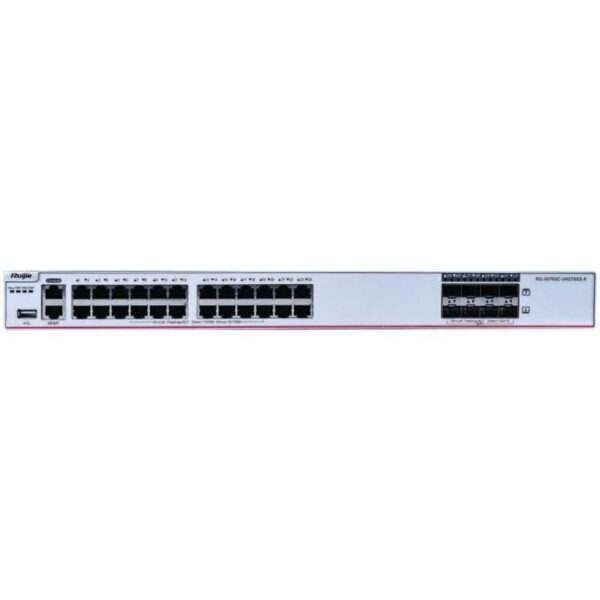

Ruijie RG-S5760C-24GT8XS-X

RG-S5760C-24G/T8XS-X RG-S5760C-24GT/8XS-X

Ruijie RG-S5760C-24GT8XS-X

Ruijie รุ่น RG-S5760C-24GT8XS-X

Full L3-Managed Gigabit Switch 24 Port, 8 Port SFP+

คุณสมบัติ

  • Ruijie RG-S5760C-24GT8XS-X Full L3-Managed Gigabit Switch 24 Port, 8 Port SFP+ 10Gbps
  • 24K Routing Table, รองรับ Dynamic Routing OSPF BGP, L3 Multicast
  • ICT Spec อุปกรณ์กระจายสัญญาณ (L3 Switch) ขนาด 24 ช่อง
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Product Specification

Overview

Ruijie RG-S5760C-24GT8XS-X Full L3-Managed Gigabit Switch 24 Port, 8 Port SFP+ 10Gbps

24K Routing Table, รองรับ Dynamic Routing OSPF BGP, L3 Multicast
ICT Spec อุปกรณ์กระจายสัญญาณ (L3 Switch) ขนาด 24 ช่อง
Fixed Ports 24x 10/100/1000BASE-T,

8 x 1G/10G SFP+ ports,

2 power module slots
Management Port 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard
Expansion Slot Single expansion slot is reserved to for service modules
Switching Capacity 880 Gbps/7.92 Tbps
Packet Forwarding Rate 426 Mpps/600 Mpps
MAC Address 64K
ARP Table 24K
Routing Table Size (IPv4/IPv6) 24K (IPv4/IPv6)
Product Features
VLAN The following are supported:
4K 802.1Q VLAN
Port based VLAN
Private VLAN
Voice VLAN
GVRP
QinQ Basic QinQ
Flexible QinQ
Link Aggregation LACP(802.3ad)
Spanning Tree The following are supported:
STP, RSTP, and MSTP
DHCP The following are supported:
DHCP Server
DHCP Client
DHCP Snooping
DHCP Relay
IPv6 DHCP Server
IPv6 DHCP Snooping
IPv6 DHCP Client
IPv6 DHCP Relay
Multiple Spanning Tree Protocol (MSTP) Instances 64
Maximum Aggregation Port (AP) 128
IPv6 Basic Protocol IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless auto-configuration, and Path MTU Discovery
IP Routing The following are supported:
Static routing
RIP and RIPng
OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6
BGP4, and BGP4+
Equivalent routing
Packet-based load balancing, and flow-based load balancing
MCE
Multicast The following are supported:
IGMP v1, v2, v3, and IGMP proxy
IGMP v1, v2 and v3 Snooping
IGMP filtering, and IGMP fast-leave
PIM-DM, PIM-SM, and PIM-SSM
MLD Snooping, and MLD
PIM for IPv6
MPLS MPLS L3VPN
ACL The following flexible and diversified hardware ACLs are supported:
Standard IP ACLs (IP-based hardware ACL)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)

Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL80
IPv6 ACLs
QoS The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, DRR, SP+DRR, RED/WRED queue scheduling mechanisms
Security Features The following are supported:
3-tuple binding (IP address, MAC address, and port)3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting
Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
Security Features AAA for device login management
SSH
BPDU Guard
IP Source Guard
CPP, and NFPP
Port protection
Management Features SNMP, CLI (Telnet/Console), RMON, SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, and Traceroute v6
This switch supports sFlow, and samples its traffic information by using the random sampling technology of data flows.
High Reliability The following are supported:
VSU (virtualization technology, which virtualizes multiple devices into one), GR for RIP/OSPF/BGP and other
routing protocols, BFD detection, ERPS (G.8032), REUP, RLDP, power supply 1+1 backup, and the hotswappable function supported on the power supply
Zero Configuration CPE WAN Management Protocol (CWMP(TR069))
PoE Unsupported
Dimensions (W × D × H) 442 mm × 340 mm × 44 mm
Rack Height 1RU
MTBF (hours) >200K
Power Supply AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz
HVDC input:
Rated voltage range: 240 V
Maximum voltage range: 192 V to 288 V
Power Consumption (full load) 60 W
Fan 2 built-in fans
Fan speed regulating and alarm function
Temperature Alarm Supported
Temperature Operating temperature: 0oC to 45oC(without an expansion card), 0oC to 40oC (with an expansion card)
Storage temperature: -40oC to 70oC
Relative Humidity Operating humidity: 5% to 95%(no condensation)
Storage humidity: 5% to 95%
Operating Altitude 500m to 5,000m
Lightening Protection on Communication Port 6kV (Common Mode)
Lightning Protection on Power Port Common Mode 6KV/Differential Mode 6KV
