| Features |
Description |
| Device Type |
48-Port Gigabit Stackable L3 Managed PoE+ Switch |
| Network Ports |
48 × 10/100/1000 Mbps PoE+ RJ45 Ports |
| Uplink Ports |
6 × 10 Gbps SFP+ Slots |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
48 Ports, Up to 30 W per Port |
| PoE Budget |
Up to 1,440 W with 2 × PSM900-AC Power Supply Modules |
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
160.7 Mpps |
| Layer 3 Routing |
Static Routing, RIP, OSPF, ECMP and VRRP |
| Stacking |
Physical Stacking up to 8 Units in Standalone Mode |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| Power Supply |
Up to 2 Hot-Swappable Power Supply Modules with N+1 Redundancy |
| Application |
Enterprise Networks, Campus Networks, SMB Networks, ISP Networks, Surveillance and High-Density PoE Deployments |
| Ethernet Ports |
48 × 10/100/1000 Mbps RJ45 PoE+ |
| Uplink Ports |
6 × 10 Gbps SFP+ |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
48 |
| PoE Power |
Up to 30 W per Port |
| PoE Budget |
384 W with 1 × PSM500-AC; 764 W with 1 × PSM900-AC; 812 W with 2 × PSM500-AC; 1,176 W with 1 × PSM500-AC + 1 × PSM900-AC; Up to 1,440 W with 2 × PSM900-AC |
| Fast PoE |
Supported |
| Perpetual PoE |
Supported |
| Switching Capacity |
216 Gbps |
| Forwarding Bandwidth |
108 Gbps |
| Packet Forwarding Rate |
160.7 Mpps |
| MAC Address Table |
32K |
| Packet Buffer |
3 MB |
| Jumbo Frame |
9 KB |
| Stacking Port |
10G SFP+ Slots; All Uplink Ports Can Be Used as Stacking Ports |
| Maximum Stacking |
8 Units in Standalone Mode / 4 Units in Controller Mode |
| Stacking Bandwidth |
Up to 120 Gbps with 6 Stacking Ports |
| Layer 3 Routing |
Static Routing, RIP v1/v2, OSPF v2/v3, ECMP and VRRP |
| Multicast Routing |
PIM-DM and PIM-SM |
| DHCP |
DHCP Server and DHCP Relay |
| VLAN |
802.1Q VLAN, Voice VLAN, Private VLAN and QinQ |
| Link Aggregation |
Static Link Aggregation and LACP |
| Spanning Tree |
STP, RSTP and MSTP |
| Ring Protection |
ERPS |
| Multicast |
IGMP Snooping, MLD Snooping and Multicast VLAN Registration |
| Security |
ACL, 802.1X, MAB, Port Security, DHCP Snooping, Dynamic ARP Inspection, IP-MAC-Port Binding and DoS Defense |
| Console |
1 × RJ45 + 1 × USB Type-C |
| Management Port |
1 × RJ45 |
| USB Ports |
2 × USB 2.0 |
| Processor |
Dual-Core ARM @ 1.5 GHz |
| Memory |
4 GB DDR4 |
| SMART FEATURES |
| 48-Port Gigabit PoE+ |
Provides 48 Gigabit PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| 1,440W PoE Budget |
Supports Up to 1,440 W Total PoE Power with Two PSM900-AC Power Supply Modules for High-Density PoE Deployments |
| 6× 10G SFP+ |
Six 10G SFP+ Slots Provide High-Speed Fiber Uplinks and Can Also Be Used for Physical Stacking |
| L3 Routing |
Supports Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM and PIM-SM for Scalable Enterprise and Campus Networks |
| High-Speed Stacking |
Supports Physical Stacking of Up to 8 Units in Standalone Mode with Up to 120 Gbps Stacking Bandwidth |
| Redundant Power |
Supports Two Hot-Swappable Power Supply Modules with N+1 Redundancy for Improved Network Availability |
| Perpetual PoE |
Maintains PoE Power Delivery During Switch Reboots to Help Keep Connected PoE Devices Online |
| Fast PoE |
Retains PoE Power Settings Across Reboots to Reduce Downtime for Connected Powered Devices |
| Omada SDN Management |
Provides Centralized Cloud Management Through Omada SDN Controller Together with Web GUI, CLI, SNMP and RMON |
| GENERAL |
| Switch Type |
L3 Managed Stackable PoE+ Switch |
| PoE Ports |
48 × Gigabit PoE+ |
| Uplink Ports |
6 × 10G SFP+ |
| PoE Budget |
Up to 1,440 W |
| Installation Method |
Rackmount |
| Maximum Stacking |
8 Units in Standalone Mode / 4 Units in Controller Mode |
| Stacking Bandwidth |
Up to 120 Gbps |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Power Supply Module |
PSM900-AC / PSM500-AC |
| Redundant Power |
Up to 2 Hot-Swappable Power Supply Modules, N+1 Redundant |
| Cooling |
4 × Hot-Swappable Fan Trays, N+1 Redundant |
| Airflow |
Front-to-Back |
| Operating Temperature |
-5°C to 45°C at up to 2,000 m; -5°C to 40°C at up to 3,000 m |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Dimensions |
440 × 420 × 44 mm |
| Net Weight |
8.2 kg |
| MTBF |
648,538 Hours at 25°C |
| Certification |
CE, FCC and RoHS |

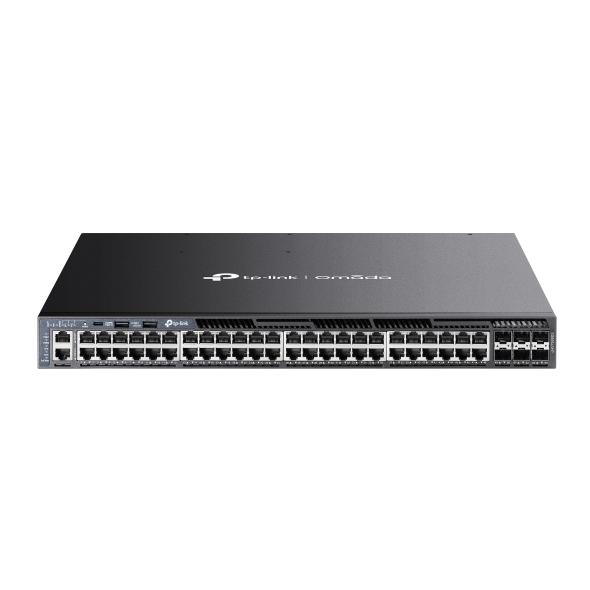

Note: The TP-Link SG6654XHP is a 48-port Gigabit Stackable L3 Managed PoE+ Switch featuring 48 × Gigabit PoE+ RJ45 ports and 6 × 10G SFP+ slots. It provides 216 Gbps switching capacity, 160.7 Mpps packet forwarding performance and up to 1,440 W total PoE budget when equipped with two PSM900-AC power supply modules.
Important: The TP-Link SG6654XHP supports Fast PoE, Perpetual PoE, physical stacking, redundant hot-swappable power supplies, Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, ERPS, ACL, 802.1X and centralized Omada SDN management. The six 10G SFP+ slots can be used for high-speed uplinks or stacking, providing up to 120 Gbps stacking bandwidth.
