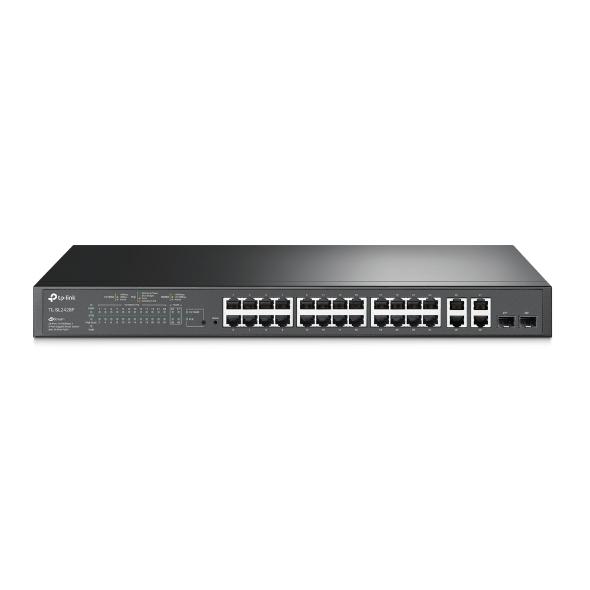

SL2428P | JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

TP-Link Omada SL2428P

24-Port Smart PoE+ Switch

24×10/100Mbps PoE+ ports with 2×Gigabit RJ45 ports
2×Gigabit Combo RJ45/SFP uplink ports
Supports IEEE 802.3af/at PoE with 250W PoE budget
Supports VLAN, ACL, QoS, IGMP Snooping and Static Routing
Cloud management via Omada SDN Controller and Omada App
Rackmount metal design for surveillance and business networks

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), Switchs, TP-LINK ป้ายกำกับ: TP-Link

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คุณสมบัติ Omada SL2428P

Features	Description
Device Type	28-Port Smart PoE+ Switch
Network Ports	24 × 10/100Mbps PoE+ RJ45 Ports + 2 × Gigabit RJ45 Ports + 2 × Gigabit Combo RJ45/SFP Ports
PoE Standard	IEEE 802.3af/at PoE+
PoE Budget	Up to 250W Total PoE Power Budget
PoE Output	Up to 30W Per PoE Port
Switching Capacity	12.8 Gbps
Packet Forwarding Rate	9.52 Mpps
Management	Omada Cloud Controller, Web GUI, CLI, SNMP, RMON
Smart Features	VLAN, ACL, QoS, Static Routing, IGMP Snooping
Design	Metal Rackmount Case
Application	IP Camera, Wireless AP, IP Phone, Enterprise Network

Device Type	Omada Smart Gigabit PoE+ Switch
PoE Ports	24 × 10/100Mbps PoE+ RJ45 Ports
Uplink Ports	2 × Gigabit RJ45 + 2 × Gigabit Combo RJ45/SFP Ports
Switching Capacity	12.8 Gbps
Packet Forwarding Rate	9.52 Mpps
MAC Address Table	8K
Jumbo Frame	9 KB

PoE FEATURES
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Ports	24 × PoE+ Ports
Total PoE Budget	250W
PoE Output	Up to 30W Per Port

SMART FEATURES
Management	Omada Cloud Controller, Omada App, Web GUI, CLI
VLAN	802.1Q VLAN, MAC VLAN, Voice VLAN
QoS	802.1p CoS / DSCP Priority, Bandwidth Control
Security	ACL, 802.1X, IP-MAC-Port Binding, Port Security
Multicast	IGMP Snooping v1/v2/v3

NETWORK
Network Standard	IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at / 802.3x
Transmission Method	Store-and-Forward
Flow Control	IEEE 802.3x Flow Control
Routing	IPv4/IPv6 Static Routing

GENERAL
Housing	Metal Rackmount Case
Cooling	2 × Smart Fans
Power Supply	100–240V AC, 50/60Hz
Operating Temperature	0°C to 50°C
Dimensions	440 × 180 × 44 mm

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The Omada SL2428P is a 28-port Smart PoE+ switch with 24 PoE+ ports, 250W PoE budget, Gigabit uplinks, and Omada cloud management. Suitable for IP cameras, wireless access points, and enterprise networks.
