TC-C34QN Spec:I3/E/Y/C/2.8mm(4mm)/V5.0

Tiandy รุ่น TC-C34QN Spec:I3/E/Y/C/2.8mm(4mm)/V5.0

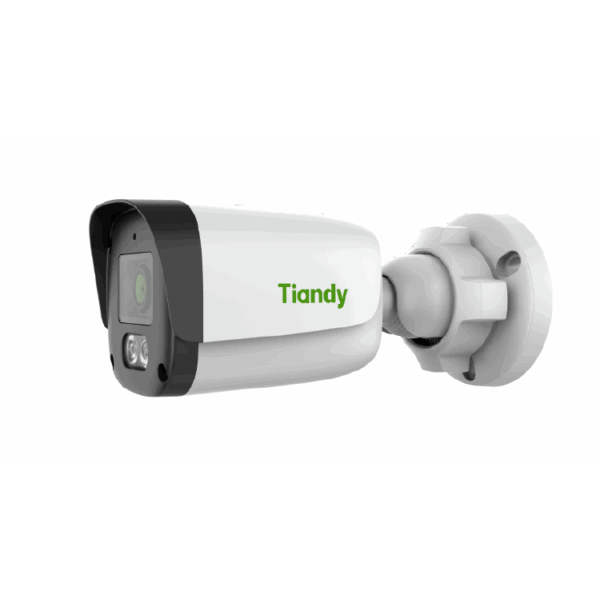

4MP Fixed Bullet Camera

  • วัสดุ โลหะ+พลาสติก
  • ความละเอียด 4 MP 2560×1440@20fps
  • เลนส์ 2.8 mm
  • เข้ารหัส S+265/H.265/H.264
  • มองกลางคืน 30 เมตร Smart IR
  • มีไมค์ในตัว
  • รองรับ POE
  • กันน้ำIP67
หมวดหมู่: , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Tiandy TC-C34QN Spec:I3/E/Y/C/2.8mm(4mm)/V5.0

4MP Outdoor Bullet IP Camera Viewing angle 102.8° 1/2.7″ CMOS, F2.0, Fix.lens., Digital WDR, 30m IR, 0.02Lux, 2560×1440@20fps2560x1440@20fps, IP67 protection, PoE,. BLC/3D DNR/HLC. S+265/H.265/H.264 Video Bit Rate 32Kbps~4Mbp. 1 RJ45 10M/ 100M self adaptive Ethernet port Built-in microphone -40~60°C

Manufacturer: Tiandy
Manufacturer Code: TC-C34QN I3/E/Y/2.8mm-V5.0

Corps

Application  Indoor, outdoor
Chassis type Cylindrical
Primary color White
Body Material  Metal+Plastic
Protection class  IP67

Matrix

Resolution (Megapixel)  4Mp (2560×1440)
Matrix type/size  1/2.7″ CMOS
Sensitivity  0.02 lux

Video

Frame rate 4Mp=20 fps
Codec (video compression)  H.265+/H.265/H.264+/H.264
Dynamic range  D-WDR
Illumination compensation  3D DNR/BLC/HLC
White balance  auto (AWB)

Audio

Audio (microphone)  Built-in microphone

Optics and illumination

Lens type  Fixed lens
Focal length  2.8 mm
Viewing angle (horizontal)  92.8°
IR backlight  IR = 30 m

Interfaces

Lan port  100 Mb

Nutrition

PoE support  PoE 48V (802.3af)

Additional Information

Mobile App  Easy7, EasyLive Plus
WEB-interface  IE,Chrome,Firefox,Safari,Opera
Operating temperature  -30…+60 С
Equipment  Quick Start Guide, Installation Kit
Dimensions LxWxH  164×66 mm
