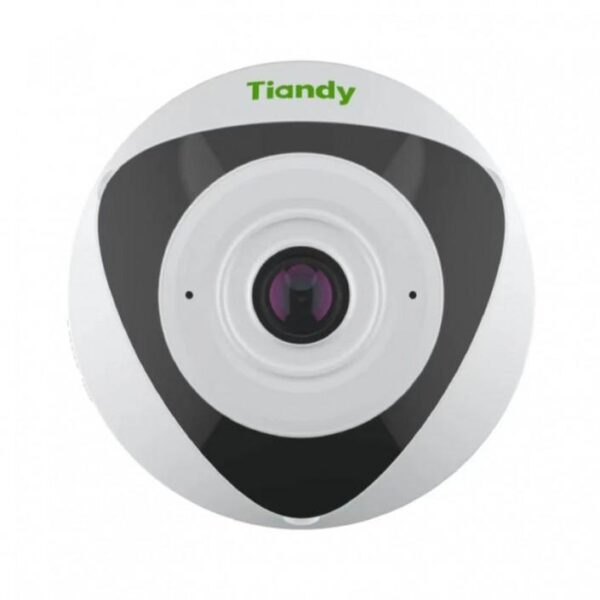

TC-C35VN Spec:I3/E/Y/1.4mm/V4.2

Tiandy รุ่น TC-C35VN Spec:I3/E/Y/1.4mm/V4.2

5MP Fisheye Camera

  • ตัวเรือนพลาสติก
  • สูงสุด 2592×1944@25fps
  • S+265/H.265/H.264
  • Min. ไฟส่องสว่างสี: 0.02Lux@F2.0
  • สมาร์ท IR, ระยะ IR: 30 ม
  • เสียง I/O 1/1, Alarm I/O 1/1
  • รองรับ Tripwire, Perimeter, Double Tripwire
  • แผนที่ Heatmap
  • ไมค์ในตัว, การ์ด SD Solt
  • สภาวะการทำงาน -10°~50°, 0~95% RH
  • POE
หมวดหมู่: , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Tiandy TC-C35VN Spec:I3/E/Y/1.4mm/V4.2

TC-C35VN – Plastic Housing – Up to 2592×1944@25fps – Min. illumination Color: 0.02Lux@F2.0 – Heatmap – POE
  • Plastic Housing
  • Up to 2592×1944@25fps
  • S+265/H.265/H.264
  • Min. illumination Color: 0.02Lux@F2.0
  • Smart IR, IR Range: 30m
  • Audio I/O 1/1,Alarm I/O 1/1
  • Support Tripwire,Perimeter,Double Tripwire
  • Heatmap
  • Built-in Mic, SD Card Solt
  • Operating Conditions -10°~50°, 0~95% RH
  • POE
Camera Model: TC-C35VN
Image Sensor 1/2.7″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Lens
Lens Type Fixed
Focus 1.4mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 180°
Vertical field of view: 180°
Diagonal field of view: 180°
Illuminator
IR LEDs 3
IR Range Up to 30 m
Wavelength 850nm
White LEDs/Warmlights N/A
Range N/A
Compression Standard
Video Compression S+265/H.265/H.264/Motion JPEG
Video Bit Rate 32Kbps~8Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps
Max. Resolution 2592×1944
Main Stream Max 30fps(2592×1944,2560×1440,1920×1080,1280×720)
Sub Stream Max 30fps(704×576,640×360,704×288,352×288)
Third Stream Max 30fps(1920×1080,1280*720)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI 8
OSD 16×16, 32×32, 48×48, 64×64, 96×96,adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Picture Overlay Yes
Privace Mask Yes, 4 regions
Smart Defog N/A
Image segmentation Fisheye, 180° panorama, 360° panorama +1PTZ, fisheye +3PTZ, Fisheye +4PTZ, 360° panorama +6PTZ, Fisheye +8PTZ, Panorama, panorama +3PTZ, Panorama +4PTZ, panorama +8PTZ
Feature TC-C35VN
Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire,Perimeter,Double Tripwire, Classification,Heatmap
Early Warning(EW) Yes
Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Protocols HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,DHCP,DNS,DDNS,Easy DDNS,NTP,SMTP,802.1X,QoS,IPv4,IPv6,PPPOE,SSH,Unicast,Multicast,RTCP,ARP
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI,Milestone,SRTP,RTMP,RTSP
Remote Connection ≤2
Client Easy7, EasyLive Plus
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 1/1
Speaker N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
General TC-C35VN
Web Client Language 17 languages
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian
Operating Conditions -10℃~50℃, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 11W(12V) MAX: 11.6W(POE)
Protection N/A
Heater N/A
Dimensions 122mm(D)×37.5mm(H)
Net Weight 0.26kg
Dimensions of single packing case 138×138x110mm
Gross Weight 0.42kg
Volume of packing box 24
