| Features |
Specifications |
| Model |
TC-C32GS Spec:I5/E/Y/C/SD/2.8mm(4mm)/V4.2 |
| Camera Type |

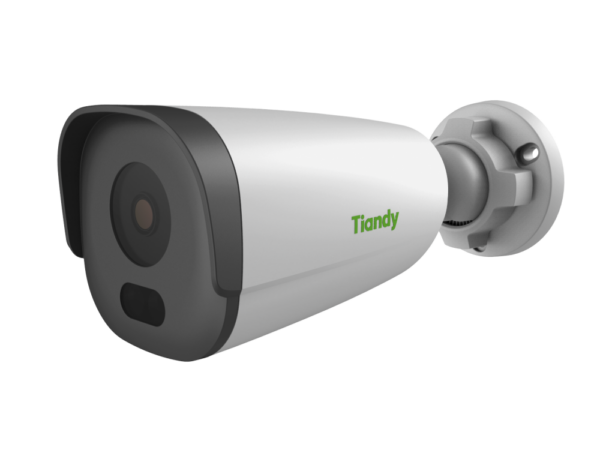

2MP Starlight IR Bullet Network Camera |
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
1920 × 1080 @ 30fps |
| Min. Illumination |
Color: 0.002Lux @ F1.6, B/W: 0Lux with IR |
| Day & Night |
ICR with Auto Switch |
| WDR |
120dB |
| S/N Ratio |
>42dB |
Lens & Illuminator
| Item |
Specifications |
| Lens Type |
Fixed |
| Focal Length |
2.8mm / 4mm |
| Lens Mount |
M12 |
| Aperture |
F1.6, Fixed |
| Field of View |
H: 99.7° (2.8mm) / 83.3° (4mm); V: 55.1° (2.8mm) / 46.8° (4mm) |
| IR LEDs |
2 |
| IR Range |
Up to 50m |
| IR Wavelength |
850nm |
Video & Image
| Item |
Specifications |
| Video Compression |
S+265 / H.265 / H.264 |
| Video Bit Rate |
32Kbps ~ 6Mbps |
| Main Stream |
PAL: 25fps; NTSC: 30fps at 1920 × 1080, 1280 × 720 and other supported resolutions |
| Sub Stream |
PAL: 25fps; NTSC: 30fps |
| Image Enhancement |
BLC, HLC, 3D DNR, AGC |
| White Balance |
Auto, Semi-Auto, Manual and multiple preset modes |
| ROI |
8 fixed regions |
| OSD |
Up to 3 regions |
| Privacy Mask |
4 regions |
| Smart Defog |
Supported |
Intelligent Functions
| Function |
Specifications |
| Video Analytics |
Tripwire, Perimeter |
| Alarm Trigger |
Motion Detection, Mask Alarm, IP Address Conflict |
| ANR |
Supported with compatible Tiandy ANR NVR |
Network & Interface
| Item |
Specifications |
| Network Interface |
1× RJ45 10/100Mbps Self-Adaptive Ethernet |
| Network Protocols |
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
| System Compatibility |
ONVIF Profile S/T/G, SDK, CGI, Milestone, P2P |
| Remote Connection |
Up to 2 users |
| Client |
Easy7, EasyLive Plus |
| Web Version |
Web6 |
Audio & Storage
| Item |
Specifications |
| Audio Input |
Built-in Microphone |
| Audio Compression |
G.711A, G.711U, ADPCM |
| Audio Bit Rate |
8K ~ 48Kbps |
| MicroSD |
Built-in MicroSD card slot, up to 512GB |
General
| Item |
Specifications |
| Power Supply |
PoE IEEE 802.3af |
| Power Consumption |
Max. 7W |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
0 ~ 95% RH |
| Protection |
IP67, 4000V Surge Protection, 6000V ESD |
| Housing |
Metal + Plastic |
| Dimensions |
207 × 82 × 81mm |
| Net Weight |
Approx. 0.32kg |
| Gross Weight |
Approx. 0.47kg |
Note: The TC-C32GS is available with either a 2.8mm or 4mm fixed lens. Field of view varies according to the selected lens.
Important: Specifications are based on Tiandy TC-C32GS Spec:I5/E/Y/C/SD/V4.2. Actual specifications may vary depending on the exact lens and hardware version.
