| Features |
Description |
| Camera Type |

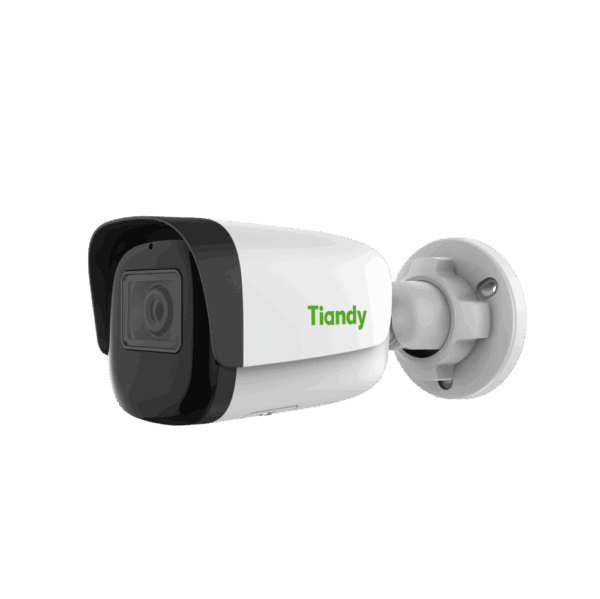

2MP Color Maker Super Starlight WDR IP Bullet Camera |
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
1920 × 1080 @ 30fps |
| Lens |
2.8mm Fixed Lens |
| Minimum Illumination |
0.0008 Lux @ F2.0, AGC ON |
| White Light |
2 LEDs, up to 15–20 m |
| WDR |
120 dB |
| Video Compression |
S+265 / H.265 / H.264 |
| Smart Analytics |
Tripwire and Perimeter Detection |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 512GB |
| Network |
10/100 Mbps Ethernet, PoE |
| Protection |
IP67 |
| Camera |
| Image Sensor |
1/2.8″ CMOS |
| Signal System |
PAL / NTSC |
| Shutter Time |
1 s to 1/100,000 s |
| Day & Night |
Dual IR Cut Filter with Auto Switch |
| Minimum Illumination |
Color: 0.0008 Lux @ F2.0, AGC ON; B/W: 0 Lux with White Light |
| Wide Dynamic Range |
120 dB |
| S/N Ratio |
>42 dB |
| Angle Adjustment |
Pan 0–360°, Tilt 0–80°, Rotation 0–360° |
| Lens |
| Lens Type |
Fixed |
| Focal Length |
2.8mm |
| Lens Mount |
M12 |
| Aperture |
F2.0, Fixed |
| Horizontal Field of View |
108.8° |
| Vertical Field of View |
56.4° |
| Diagonal Field of View |
130.6° |
| DORI – Detect |
38.6 m |
| DORI – Observe |
15.3 m |
| DORI – Recognize |
7.7 m |
| DORI – Identify |
3.9 m |
| Illuminator |
| White LEDs |
2 |
| White Light Distance |
Up to 15–20 m |
| Light Type |
Visible Light |
| Smart Light |
Yes |
| IR LEDs |
N/A |
| Video & Image |
| Video Compression |
S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate |
32 Kbps – 6 Mbps |
| Maximum Resolution |
2MP, 1920 × 1080 @ 30fps |
| Main Stream |
PAL: Up to 25fps; NTSC: Up to 30fps |
| Sub Stream |
PAL: Up to 25fps; NTSC: Up to 30fps |
| BLC |
Yes |
| HLC |
Yes |
| AGC |
Yes |
| 3D DNR |
Yes |
| White Balance |
Auto / Semi-Auto / Manual / Daylight / Natural Light / Warm Light / Fluorescent / Incandescent / Lock |
| ROI |
8 Static Rectangular Regions |
| OSD |
1 Region, up to 48 characters |
| Privacy Mask |
4 Static Black Regions |
| Smart Defog |
Yes |
| AI & Intelligent Functions |
| Video Analytics |
Tripwire, Perimeter |
| Behavior Rules |
2 Rules in 1 Scene |
| Motion Detection |
Yes |
| Mask Alarm |
Yes |
| Exception Detection |
Disk Full, Disk Read/Write Error, IP Address Conflict |
| ANR |
Yes |
| Audio |
| Built-in Microphone |
Yes |
| Audio Input |
Built-in Microphone |
| Audio Output |
N/A |
| Audio Compression |
G.711A / G.711U / ADPCM_D |
| Audio Sampling |
8 kHz / 32 kHz / 48 kHz |
| Network & Storage |
| Network Interface |
1 × RJ45 10/100 Base-T Ethernet Port |
| Network Protocols |
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, QoS, IPv4, SSH, Unicast, RTSP, FTP |
| System Compatibility |
ONVIF Profile S/T/G, SDK, CGI, Milestone |
| P2P |
Yes, mutually exclusive with ONVIF Profile G |
| Remote Connection |
Up to 2 Clients |
| PC Client |
Easy7 Smart Client |
| Mobile Client |
EasyLive Plus |
| Web Browser |
IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
| Storage |
Built-in MicroSD / MicroSDHC / MicroSDXC up to 512GB |
| Interface |
| Communication Interface |
1 × RJ45 10/100 Base-T |
| Built-in Microphone |
Yes |
| Reset Button |
Yes |
| Alarm I/O |
N/A |
| Audio I/O |
N/A |
| Power & General |
| Power Supply |
PoE IEEE 802.3af |
| Power Consumption |
Max. 7W |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH |
| Storage Temperature |
-30°C to 60°C |
| Protection |
IP67, Surge Protection 4000V, ESD 6000V |
| Housing |
Metal + Plastic |
| Dimensions |
160.8 × 68 × 74.5 mm |
| Gross Weight |
0.47 kg |
Note: Specifications are based on the Tiandy TC-C32WP Spec:I5W/E/Y/2.8mm/V4.2 documentation. The model is also available with a 4mm lens variant.
Important: TC-C32WP has multiple hardware and lens versions. Specifications such as lens, white-light range, power consumption and housing may vary by exact suffix/version. Verify the exact ordering code before publication.
