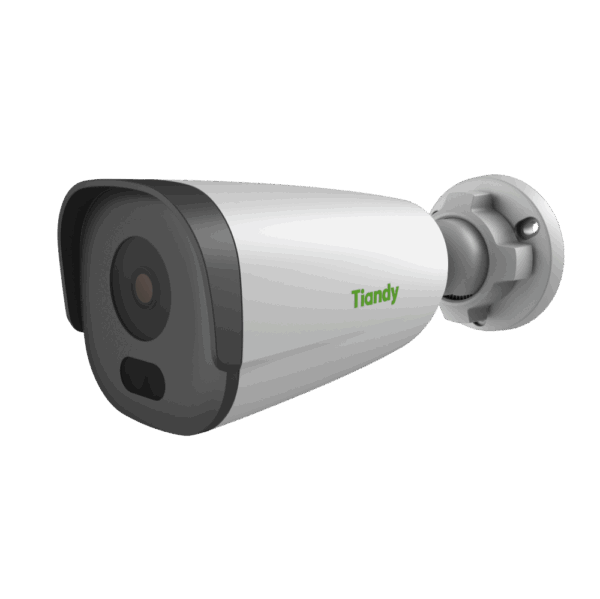

Tiandy TC-C34GS

Tiandy TC-C34GS

TIANDY TC-C34GS

4MP Starlight WDR IR Bullet Network Camera

  • 4MP 1/2.7″ CMOS sensor with up to 2560×1440 resolution
  • 2.8mm or 4mm fixed lens with up to 103.8° horizontal FOV
  • Starlight imaging with 0.002Lux color illumination and Digital WDR
  • Smart IR illumination up to 50m for clear night-time monitoring
  • Supports S+265/H.265/H.264, tripwire and perimeter detection
  • Built-in microphone, Micro SD up to 512GB, PoE and IP67 protection
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Tiandy TC-C34GS

Features Description
Camera Type 4MP Fixed Starlight IR Bullet Camera
Image Sensor 1/2.7″ CMOS
Max. Resolution 2560 × 1440 @ 25fps
Lens 2.8mm / 4mm Fixed Lens
Minimum Illumination 0.002 Lux @ F1.6, AGC ON; 0 Lux with IR
IR Range Up to 50 m
WDR Digital WDR
Video Compression S+265 / H.265 / H.264
Video Analytics Tripwire and Perimeter Detection
Audio Built-in Microphone
Storage MicroSD up to 512GB
Network 10/100 Mbps Ethernet, PoE
Protection IP67
Camera
Image Sensor 1/2.7″ CMOS
Signal System PAL / NTSC
Shutter Time 1 s – 1/100,000 s
Day & Night Dual IR Cut Filter with Auto Switch (ICR)
Minimum Illumination Color: 0.002 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Wide Dynamic Range Digital WDR
S/N Ratio >39 dB
Angle Adjustment Pan 0–360°, Tilt 0–75°, Rotation 0–360°
Lens
Lens Type Fixed
Focal Length 2.8mm / 4mm
Lens Mount M12
Aperture F1.6, Fixed
Horizontal Field of View 103.8° (2.8mm) / 88.2° (4mm)
Vertical Field of View 56.1° (2.8mm) / 46.4° (4mm)
Diagonal Field of View 118° (2.8mm) / 101.8° (4mm)
DORI – Detect 56 m (2.8mm) / 80 m (4mm)
DORI – Observe 22.2 m (2.8mm) / 32 m (4mm)
DORI – Recognize 11.2 m (2.8mm) / 16 m (4mm)
DORI – Identify 5.6 m (2.8mm) / 8 m (4mm)
Illuminator
IR LEDs 2
IR Distance Up to 50 m
IR Wavelength 850 nm
Smart IR Yes
White LEDs / Warm Lights N/A
Video & Image
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32 Kbps – 6 Mbps
Maximum Resolution 2560 × 1440
Main Stream PAL: 25fps at 2560 × 1440, 2304 × 1296, 1920 × 1080 and 1280 × 720; NTSC: 24fps at 2560 × 1440, 30fps at lower resolutions
Sub Stream PAL: 25fps; NTSC: 30fps
Third Stream N/A
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto / Semi-Auto / Manual / Sunny / Natural Light / Warm Light / Sodium Lamp / Incandescent / Locked
ROI 8 Regions
Corridor Mode N/A
EIS N/A
OSD 1 Region
Picture Overlay N/A
Privacy Mask 4 Regions
Smart Defog Yes
AI & Intelligent Functions
Video Analytics Tripwire, Perimeter
Behavior Rules 2 Rules in 1 Scene
Motion Detection Yes
Mask Alarm Yes
Early Warning N/A
Auto Tracking N/A
Face Detection N/A
Alarm Trigger Motion Detection, Mask Alarm, Disk Full, Disk Read/Write Error, IP Address Conflict
Linkage Method Trigger Recording, Trigger Capture, Notify Surveillance Center
Audio
Built-in Microphone Yes
Audio Input Built-in Microphone
Audio Output N/A
Audio Compression G.711A / G.711U / ADPCM_D
Audio Sampling Rate 8 kHz / 32 kHz / 48 kHz
Network & Storage
Network Interface 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port
ANR Yes, Tiandy ANR NVR Only
Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, QoS, IPv4, SSH, Unicast, RTSP, FTP
System Compatibility ONVIF Profile S/T/G, SDK, CGI, Milestone, P2P
Remote Connection Up to 2 Clients
PC Client Easy7 Smart Client
Mobile Client EasyLive Plus
Web Browser IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+
Storage Built-in MicroSD / MicroSDHC / MicroSDXC, up to 512GB
Interface
Communication Interface 1 × RJ45 10/100 Mbps
Audio I/O N/A
Alarm I/O N/A
Built-in Microphone Yes
Built-in Speaker N/A
Reset Button Yes
On-board Storage MicroSD up to 512GB
Power & General
Power Supply PoE IEEE 802.3af
Power Consumption Max. 7W
Operating Temperature -30°C to 60°C
Operating Humidity 0–95% RH
Storage Temperature -30°C to 60°C
Protection IP67
Surge Protection 2000V
Lightning Protection 6000V
Housing Metal + Plastic
Dimensions 165 × 73 × 73 mm
Net Weight 0.32 kg
Gross Weight 0.47 kg

Tiandy TC-C34GS

Note: Specifications are based on Tiandy TC-C34GS Spec:I5/E/Y/C/SD/2.8mm(4mm)/V4.2. The model is available with 2.8mm and 4mm fixed-lens options.

Important: TC-C34GS has several hardware and specification revisions. Older V4.0 documentation lists 2560 × 1440 @ 25fps and similar core specifications, while the V4.2 documentation is the recommended reference for the current version.
