| Features |
Description |
| Product Type |
8MP Starlight Motorized IR Dome Network Camera |
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
3840 × 2160 |
| Lens |
Motorized 2.7–13.5 mm |
| WDR |
120 dB |
| IR Distance |
Up to 50 m |
| Video Compression |
S+265 / H.265 / H.264 / M-JPEG |
| Video Analytics |
Human/Vehicle Classification, Face Capture and Smart Video Analytics |
| Audio |
Built-in Microphone, Audio I/O |
| Storage |
MicroSD up to 512 GB |
| Protection |
IP67 / IK10 |
| Camera |
| Image Sensor |
1/2.8″ CMOS |
| Signal System |
PAL / NTSC |
| Minimum Illumination |
Color: 0.003 Lux @ F1.6, AGC ON
B/W: 0 Lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Day/Night |
Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range |
120 dB |
| Angle Adjustment |
Pan 0–330° / Tilt 0–75° / Rotate 0–350° |
| Lens |
| Lens Type |
Motorized |
| Focal Length |
2.7–13.5 mm |
| Lens Mount |
Φ14 |
| Aperture |
F1.6–F3.3 |
| Field of View |
Horizontal: 102.7°–29° |
| Illuminator |
| IR LEDs |
18 |
| IR Distance |
Up to 50 m |
| IR Wavelength |
850 nm |
| Smart IR |
Supported |
| White / Warm Light |
N/A |
| Video |
| Video Compression |
S+265 / H.265 / H.264 / M-JPEG |
| Video Bit Rate |
32 Kbps–16 Mbps |
| Max. Resolution |
3840 × 2160 |
| Main Stream |
PAL: 20 fps at 3840 × 2160 and 3072 × 2048; 25 fps at 2560 × 1440, 2304 × 1296, 1920 × 1080 and 1280 × 720
NTSC: 20 fps at 3840 × 2160 and 3072 × 2048; 30 fps at 2560 × 1440, 2304 × 1296, 1920 × 1080 and 1280 × 720 |
| Sub Stream |
PAL: Up to 25 fps; NTSC: Up to 30 fps |
| Third Stream |
PAL: Up to 25 fps; NTSC: Up to 30 fps |
| Image Enhancement |
BLC / 3D DNR / HLC / Corridor Format |
| ROI |
8 Fixed Regions |
| Privacy Mask |
8 Regions |
| Smart Defog |
Supported |
| Video Analytics |
| Smart Detection |
Tripwire, Double Tripwire, Perimeter Detection |
| Object Detection |
Object Abandon, Object Lost, Loitering, Running, Parking |
| People Analytics |
Crowd Detection, People Counting, On-Duty Detection |
| AI Classification |
Human / Vehicle Classification |
| Face Capture |
Supported |
| Safety Helmet Detection |
Supported |
| Other Analytics |
Heatmap, Video Abnormal, Audio Abnormal |
| Audio & Alarm |
| Built-in Microphone |
Supported |
| Audio I/O |
1 Input / 1 Output |
| Audio Compression |
G.711A / G.711U / ADPCM / AAC |
| Audio Bit Rate |
8–48 Kbps |
| Alarm I/O |
2 Inputs / 1 Output |
| Network & Storage |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| RS-485 |
Supported |
| Network Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, Multicast, UPnP, FTP, IPv4/IPv6, NTP, SMTP, IGMP, 802.1X, QoS, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP and NFS |
| Interoperability |
ONVIF Profile S / T / G, SDK, Milestone, CGI, P2P |
| Remote Connection |
Up to 7 Users |
| Client Software |
Easy7 / EasyLive |
| Web Client |
Web6 |
| Edge Storage |
MicroSD up to 512 GB |
| Power & General |
| Power Supply |
DC 12V ±25% / PoE |
| Power Consumption |
Max. 7.5 W (12V) / 9 W (PoE) |
| Operating Temperature |
-35°C to +65°C |
| Operating Humidity |
0–95% RH |
| Protection |
IP67 / IK10 / Lightning & Surge Protection |
| Housing |
Full Metal Housing |
| Dimensions |
Φ143 × 124 mm |
| Weight |
0.95 kg |
| Heater |
N/A |

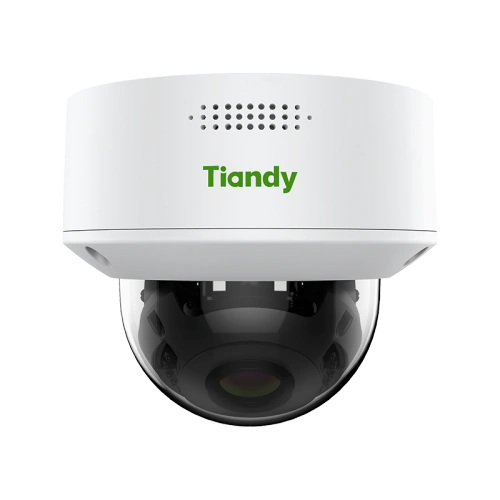

Note: Tiandy TC-C38MS is an 8MP Starlight Motorized IR Dome Network Camera featuring 4K resolution, 2.7–13.5 mm motorized lens, 120 dB WDR, 50 m Smart IR, S+265 compression, AI video analytics, Human/Vehicle Classification, Face Capture, built-in microphone, audio/alarm I/O and MicroSD storage up to 512 GB.
Important: Specifications are based on TC-C38MS Spec:I5/A/E/Y/M/H/2.7-13.5mm V4.0. Actual performance may vary depending on firmware, network conditions, storage and installation environment.
