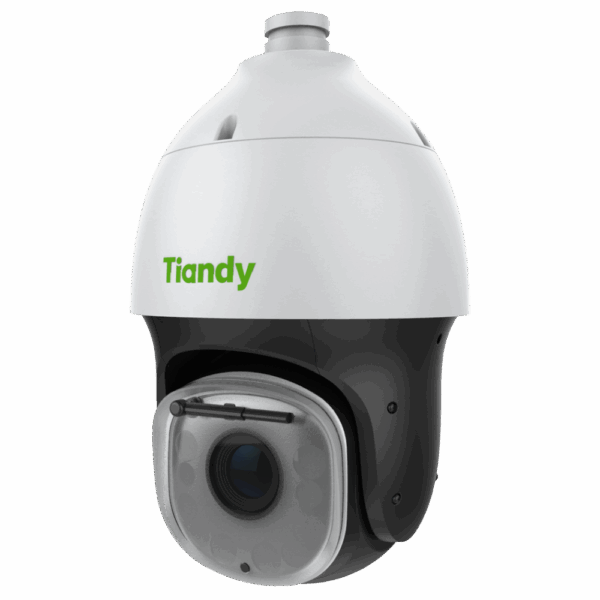

Specifications Tiandy TC-H326M
| Features | Description |
|---|---|
| Camera Type | 2MP 44X Super Starlight IR AEW AI PTZ Camera |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 1920 × 1080 |
| Optical Zoom | 44× |
| Digital Zoom | 16× |
| Minimum Illumination | 0.0008 Lux @ F1.6, AGC ON; 0 Lux with IR |
| IR Range | Up to 180 m |
| White Light | 2 White LEDs, up to 30 m |
| Auto Tracking | Yes |
| Early Warning | Yes |
| WDR | 120 dB |
| Protection | IP66 |
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ CMOS |
| Signal System | PAL / NTSC |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR Cut Filter with Auto Switch |
| Minimum Illumination | Color: 0.0008 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Wide Dynamic Range | 120 dB |
| Lens | |
|---|---|
| Focal Length | 6 mm – 264 mm |
| Optical Zoom | 44× |
| Digital Zoom | 16× |
| Zoom Speed | < 5 s |
| Horizontal Field of View | 61.8° (Wide) – 2.3° (Tele) |
| Vertical Field of View | 36.3° (Wide) – 1.3° (Tele) |
| Aperture | F1.6 – F5.3 |
| Focus Control | Auto / Manual |
| Close Focus Distance | 1 m – 3 m |
| Pan & Tilt | |
|---|---|
| Pan Range | 360° |
| Pan Manual Speed | 0.1° – 180°/s |
| Pan Preset Speed | 240°/s |
| Tilt Range | -16° – 90° with Auto Flip |
| Tilt Manual Speed | 0.1° – 120°/s |
| Tilt Preset Speed | 180°/s |
| 3D Positioning | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.3° |
| Cruise | 16, up to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8 patterns, each with 600 s memory or 1,000 commands |
| Scheduled Tasks | Preset, Cruise, Scan, Pattern, Alarm Output |
| Power-off Memory | Yes |
| Illuminator | |
|---|---|
| IR LEDs | 8 |
| IR Distance | Up to 180 m |
| IR Wavelength | 850 nm |
| IR Irradiation | Adjustable by Zoom |
| White LEDs | 2 |
| White Light Distance | Up to 30 m |
| Laser | N/A |
| Video & Image | |
|---|---|
| Video Compression | S+265 / H.265 / H.264 / Motion JPEG |
| Video Bit Rate | 32 Kbps – 16 Mbps |
| Maximum Resolution | 2MP, 1920 × 1080 |
| Main Stream | PAL: Up to 50 fps; NTSC: Up to 60 fps at 1920 × 1080 |
| Sub Stream | PAL: Up to 25 fps; NTSC: Up to 30 fps |
| Third Stream | PAL: Up to 25 fps; NTSC: Up to 30 fps |
| Video Enhancement | BLC / 3D DNR / HLC |
| WDR | True WDR |
| AI & Intelligent Functions | |
|---|---|
| Auto Tracking | Yes |
| Face Capture | Yes |
| Face Detection | Up to 16 faces in the same scene |
| Human / Vehicle Classification | Yes |
| Early Warning | Three-level precautionary alert |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal |
| Audio & Alarm | |
|---|---|
| Audio I/O | 1 Input / 1 Output |
| Audio Compression | G.711A / G.711U / ADPCM_D / AAC_LC |
| Audio Sampling | 8 kHz / 32 kHz / 48 kHz |
| Alarm I/O | 8 Input / 2 Output |
| Speaker | Yes |
| Network & Storage | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPv4, IPv6, Multicast, RTMP |
| System Compatibility | ONVIF Profile S/T/G, SDK, CGI, P2P |
| ANR | Yes, with Tiandy ANR NVR |
| Remote Connection | Up to 7 connections |
| Client | Easy7 / EasyLive |
| Memory | Built-in MicroSD card slot, up to 256 GB |
| RS-485 | Yes |
| BNC | Yes |
| Wiper | Yes |
| Power & General | |
|---|---|
| Power Supply | AC24V ±15% |
| Power Consumption | 22W (IR Off), 43W (IR On) |
| Operating Temperature | -30°C to 70°C (IR Off); -30°C to 40°C (IR On) |
| Operating Humidity | 0–95% RH |
| Protection | IP66 |
| Lightning Protection | TVS 6000V, surge and voltage transient protection |
| Dimensions | Φ222 × 372 mm |
| Weight | 5.45 kg |
| Mounting | PTZ Mounting |
Note: Specifications are based on Tiandy TC-H326M Spec:44X/IW/A documentation. Some catalogs list 120 dB WDR, while earlier datasheet versions specify 140 dB WDR; the exact firmware or hardware revision should be checked before publishing the final product specification.
Important: TC-H326M is an AEW PTZ model with 44× optical zoom, IR illumination and white-light warning functions. The exact specification may vary by hardware or document revision.
