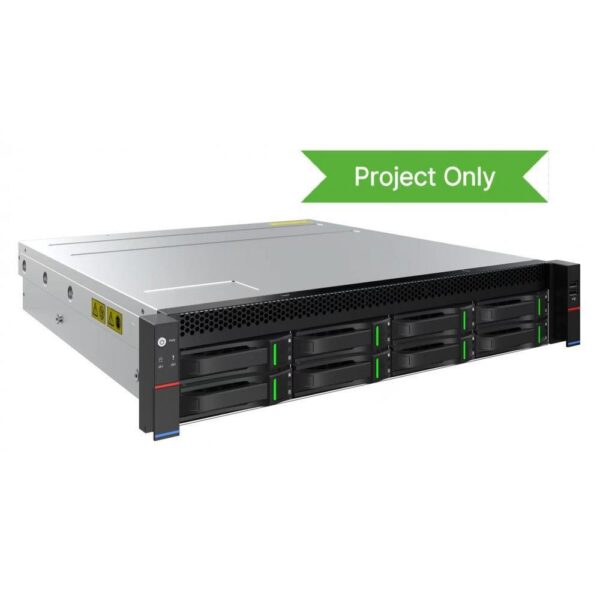

Specifications Tiandy TC-R3840
| Features | Specifications |
|---|---|
| Model | TC-R3840 Spec:I/B/N/V4.0 |
| Type | 40-Channel 8-HDD RAID NVR |
| IP Camera Input | Up to 40 channels |
| Maximum Resolution | Up to 16MP |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 320Mbps |
| Video Compression | S+265, H.265, S+264, H.264 |
| Storage | 8× SATA interfaces, up to 18TB per HDD |
| RAID | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| eSATA | 1× eSATA interface |
Video & Audio
| Item | Specifications |
|---|---|
| Access Channel | 40 channels |
| Recording Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding | 16MP×3, 12MP×4, 8MP×6, 6MP×8, 5MP×9, 4MP×12, 3MP×16, 1080P×24, 720P×40, 4CIF×40 |
| Playback Decoding | 16MP×3, 12MP×4, 8MP×6, 6MP×8, 5MP×9, 4MP×12, 3MP×16, 1080P×16 |
| Synchronous Playback | Up to 16 channels |
| HDMI Output | 2× HDMI, up to 3840×2160 |
| VGA Output | 2× VGA, up to 1920×1080 |
| Audio Input | 1× 3.5mm |
| Audio Output | 1× RCA |
| Two-Way Audio | 1× 3.5mm using audio input |
| Audio Compression | G.711A, G.711U, AAC, ADPCM |
Network & Interface
| Item | Specifications |
|---|---|
| Network Interface | 2× RJ45 10/100/1000Mbps self-adaptive Ethernet |
| Network Protocol | TCP/IP, IPv4, IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, RTCP, SMTP, SNMP, SSH, SSL, TLS, UPnP, QoS, IGMP, Multicast |
| USB Interface | 2× USB 2.0, 1× USB 3.0 |
| Serial Interface | 2× RS485, 1× RS232 |
| Alarm Input / Output | 16 / 4 |
| ONVIF | Supported |
| Third-Party Camera | ONVIF and RTSP |
| Remote Access | Supported via P2P, Android and iOS |
| ANR | Supported |
| Hot Standby | N+M hot standby |
Intelligent Functions
| Function | Specifications |
|---|---|
| VCA | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Parking and Crowd Density |
| Video Analysis | Video abnormality, audio abnormality and early warning |
| Camera Compatibility | Face Recognition Camera, People Counting Camera and Face Capture Camera |
| Smart Search | Supports VCA and intelligent event search |
Storage & Reliability
| Item | Specifications |
|---|---|
| HDD Interface | 8× SATA |
| HDD Capacity | Up to 18TB per HDD |
| Maximum Storage | Up to 144TB with 8×18TB HDDs |
| RAID Mode | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| eSATA | 1× eSATA |
| Recording Encryption | Supported |
| Backup | USB and network backup |
General
| Item | Specifications |
|---|---|
| Power Supply | 100~240V AC, 50/60Hz |
| Power Consumption | <18W, HDD not included, idling |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%~90% RH |
| Chassis | 2U |
| Dimensions | 440 × 460 × 94mm |
| Net Weight | 7.65kg |
| Web Version | Web6 |
| Language | English, Thai, Chinese, Spanish, Korean, Italian, Turkish, Russian, French, Polish, Dutch and other languages |
Note: Specifications are based on Tiandy TC-R3840 Spec:I/B/N/V4.0. Actual performance may vary depending on firmware, HDD configuration and connected cameras.
Important: The TC-R3840 V4.0 is an 8-HDD RAID NVR supporting up to 40 IP camera channels, 16MP recording, 640Mbps incoming bandwidth and 320Mbps outgoing bandwidth.
