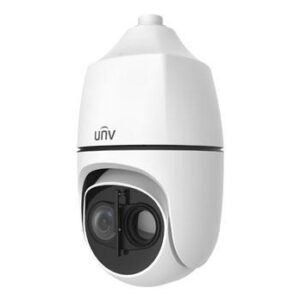

TIC6831ER-F50-4X38P

Uniview รุ่น TIC6831ER-F50-4X38P

4MP Thermal & Optical Dual-spectrum Starlight Intelligent PTZ Dome Camera

  • •1/1.8″ CMOS โปรเกรสซีฟสแกน 4MP
  • ความละเอียดสูงสุด 2688×1520, 60fps;
  • 384*288 vanadium oxide uncooled focal plane arrays
  • อัลตร้า 265,H.265
  • IR อัจฉริยะ ระยะ IR สูงสุด 150 ม
  • รองรับที่ปัดน้ำฝน
  • 120dB ทรู WDR
  • 2D/3D DNR, ROI,ONVIF
  • AC/DC24V, ช่วงแรงดันไฟฟ้ากว้าง ±25%
  • IP66
  • PoE (IEEE 802.3bt)
หมวดหมู่: , , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

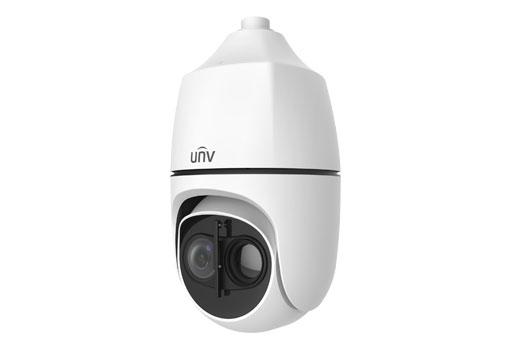

Uniview TIC6831ER-F50-4X38P

TIC6831ER-F50-4X38P 4MP Thermal & Optical Dual-spectrum Starlight Intelligent PTZ Dome Camera

• 1/1.8″ 4MP progressive scan CMOS
• Up to 2688×1520 resolution,60fps;
• 384*288 vanadium oxide uncooled focal plane arrays
• Ultra 265,H.265
• Smart IR, up to 150m IR distance
• Support Wiper
• 120dB True WDR
• 2D/3D DNR, ROI,ONVIF
• AC/DC24V, Wide voltage range of ±25%
• IP66
• PoE(IEEE 802.3bt)

Features

Optics

Thermal & Optical dual-spectrum image, dual channels with one IP, adaptable to more various scenes

Passive infrared thermal imaging, meet the requirement of concealed monitoring and not affected by bad weather condition such as fog, smoke, rain, snow and night etc.

Starlight illumination

Smart IR, up to 150m (492ft) IR distance

Gyroscope stabilization for stable picture

2D/3D DNR (Digital Noise Reduction)

Smart

Smart linkage: thermal channel support fire detection, optical channel can link to the fire position and zoom in, more accurate to judge fire situation

Perimeter protection based on deep learning algorithm: cross line, enter area, leave area, intrusion, support smart tracking

Compression

4 Megapixel optical image

Ultra265, H.264, MJPEG

Triple streams

Customize OSD

Network

ONVIF Conformance

Structure

AC/DC24V or PoE++(IEEE 802.3bt) power supply

Wide voltage range of ±25%

Support Wiper

Alarm 2 in and 1 out, Audio 1 in and 1 out

IP66

Specification

TIC6831ER-F50-4X38P
Optical Module
Image sensor 1/1.8″, progressive scan, 4.0 megapixel, CMOS
Lens 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 38
DORI Distance Lens(mm) Detect (m) Observe (m) Recognize (m) Identify (m)
5.7 97.5(319.9ft) 39(128.0ft) 19.5(64.0ft) 9.8(32.0ft)
216.6 3030(9940.9ft) 1212(3976.4ft) 606(1988.2ft) 303(994.1ft)
Field of View(H) 58.5°~ 2.1°
Field of View(V) 35.0°~ 1.2°
Field of View(D) 72.0°~ 2.5°
Shutter Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination Colour: 0.0005 Lux (F1.3, AGC ON)
0 Lux with IR
Iris Auto/Manual; F1.3 ~ F4.6
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 150m (492ft)
Defog Optical Defog & Digital Defog
WDR 120dB
Thermal Module
Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384*288
Video format 720P(1280*720), Max 25fps
Pixel size 17μm
Response waveband 8~14μm
NETD ≤50mk
Lens(focal length) 50mm
Field of View (H) 7.5°
Field of View (V) 5.8°
Field of View (D) 9.1°
Focus Auto/Semiautomatic/Manual
Palette Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Detection Distance Vehicle: 3480m (target size 4mx1.4m); human: 1395m (target size 1.8mx0.5m);
Recognition Distance Vehicle: 870m (target size: 4mx1.4m); human: 349m (target size: 1.8mx0.5m);
Identification Distance Vehicle: 497m (target size: 4mx1.4m); human: 199m (target size: 1.8mx0.5m);
Video
Compression Ultra265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2688×1520): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps;
HLC Supported
BLC Supported
OSD Up to 8 OSDs
ROI Up to 8 areas
Privacy Mask Up to 24 areas
Motion Detection Up to 4 areas
Smart
Fire Detection
(thermal module)
Support the detection of fire point in the environment and link the optical camera zoom tracking and alarm
Behavior Detection
(thermal module)
Support false alarm filtering
Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Exception Detection And Statistics
(optical module)
Object Removed, Object Left Behind, Auto-tracking
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio TIC6831ER-F50-4X38P
Audio Compression G.711U, G.711A
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR,NAS(NFS)
Network TIC6831ER-F50-4X38P
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 180°/s
Preset speed: 300°/s
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed 0.1° ~ 180°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface TIC6831ER-F50-4X38P
Audio I/O Audio cable
Input: impedance 1kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Serial Port 1 RS485
Video Output N/A
Network 1 RJ45 10M / 100M Base-TX Ethernet
General TIC6831ER-F50-4X38P
Power AC 24V, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required)
Power consumption: Max 57W
Dimensions (Φ × H) Φ270mm × 496.7mm (Φ10.6″ × 19.6″)
Weight 10.22kg (22.53lb)
Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Vandal Resistant N/A
Ingress Protection IP66
