| Features |
Description |
| Product Type |
Gigabit WDM Media Converter |
| Media Conversion |
10/100/1000Mbps Ethernet to 1000Mbps Fiber |
| Ethernet Port |
1 × 10/100/1000Mbps RJ45 |
| Fiber Port |
1 × Gigabit SC/UPC Fiber Port |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| Wavelength |
1550nm TX / 1310nm RX |
| Maximum Transmission Distance |
Up to 2km |
| WDM |
Bi-Directional Single-Fiber Transmission |
| NETWORK |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet Interface |
1 × 10/100/1000Mbps RJ45 |
| Ethernet Speed |
10/100/1000Mbps |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Duplex Mode |
Half-Duplex / Full-Duplex |
| FIBER |
| Fiber Interface |
1 × Gigabit SC/UPC |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| Transmission Distance |
Up to 2km |
| TX Wavelength |
1550nm |
| RX Wavelength |
1310nm |
| WDM Technology |
Bi-Directional, Single-Fiber Transmission |
| HARDWARE |
| Fiber Connector |
SC/UPC |
| Ethernet Connector |
RJ45 |
| Network Media |
Single-Mode Fiber / UTP Cat.5 or above |
| Maximum UTP Distance |
100m |
| LED Indicators |
PWR, Link/Act |
| POWER |
| Power Supply |
External Power Adapter |
| Power Input |
5V / 0.6A |
| FEATURES |
| WDM Technology |
Supported |
| Single-Fiber Transmission |
Supported |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Duplex Auto-Negotiation |
Supported |
| Rack Mountable |
Compatible with TP-Link TL-FC1420 Rack |
| PHYSICAL |
| Dimensions |
94.5 × 73 × 27mm |
| Installation |
Desktop / Rack Mountable with TL-FC1420 |
| ENVIRONMENT |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| PACKAGE CONTENTS |
| Contents |
Media Converter, Power Adapter, Installation Guide |

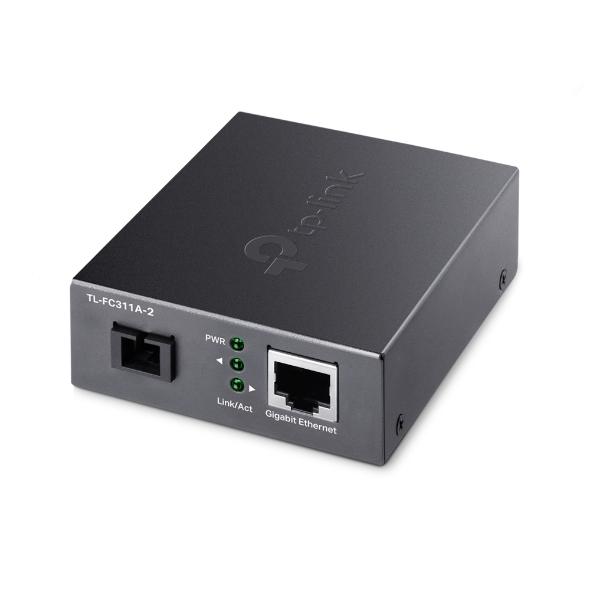

Note: The TP-Link TL-FC311A-2 is a Gigabit WDM Media Converter featuring 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × Gigabit SC/UPC fiber port. It supports Single-Mode 9/125μm fiber with a transmission distance of up to 2km. Using WDM technology, it transmits and receives data over a single fiber strand at different wavelengths. The TL-FC311A-2 transmits at 1550nm and receives at 1310nm.
Important: The TL-FC311A-2 is a Gigabit WDM Media Converter with 1 × 10/100/1000Mbps RJ45 port and 1 × SC/UPC Single-Mode fiber port. It supports 9/125μm Single-Mode fiber with a maximum transmission distance of 2km. The device uses 1550nm TX / 1310nm RX and must be paired with the corresponding TL-FC311B-2, which uses 1310nm TX / 1550nm RX.
