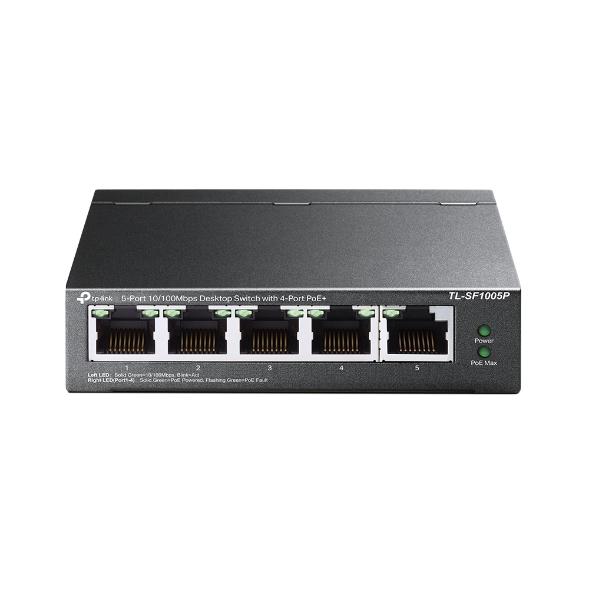

TP-Link TL-SF1005P

5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

  • 5×10/100Mbps RJ45 ports with 4×PoE+ ports
  • Supports IEEE 802.3af/at with 67W PoE budget
  • Extend Mode supports PoE transmission up to 250m
  • Priority Mode and PoE Auto Recovery for stable operation
  • Plug & Play with no configuration required
  • Ideal for IP cameras, APs and IP phones
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คุณสมบัติ TP-LINK TL-SF1005P

HARDWARE FEATURES
Interface 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in
(100 x 98 x 25 mm)
Max. Power Consumption 1.9 W (no PD connected)
74 W (with 67 W PD connected)
Max. Heat Dissipation 6.5 BTU/h(no PD connected)
252.3 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transmission Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Content TL-SF1005P, Power Adapter, Installation Guide
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
