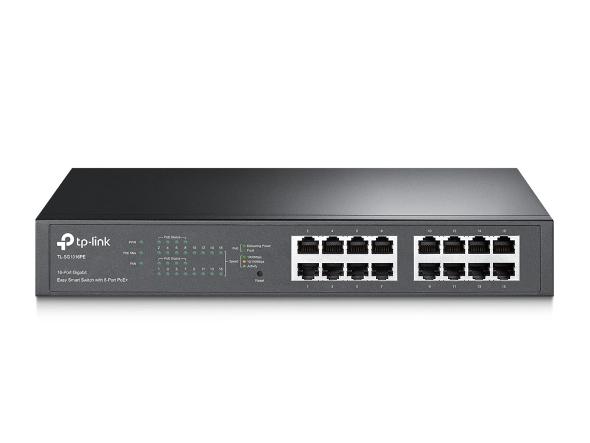

TL-SG1016PE | 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
TP-Link TL-SG1016PE
16-Port Gigabit Easy Smart Switch with 8-Port PoE+
- 16×Gigabit RJ45 ports with 8×PoE+ ports
- Supports IEEE 802.3af/at with 150W PoE budget
- Supports VLAN, QoS, IGMP Snooping and PoE Auto Recovery
- Web-based management and Easy Smart Configuration Utility
- Fanless metal design with Plug & Play installation
- Ideal for IP cameras, access points and small business networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-Link TL-SG1016PE
| Features | Description |
|---|---|
| Device Type | 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ |
| Network Ports | 16 × 10/100/1000Mbps RJ45 Ports |
| PoE Ports | 8 × IEEE 802.3af/at PoE+ Ports (Ports 1–8) |
| PoE Budget | Up to 150W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| Smart Features | VLAN, QoS, IGMP Snooping, PoE Auto Recovery |
| Application | IP Camera, Wireless AP, IP Phone, Small Business |
| Power Supply | 100–240V AC, 50/60Hz |
| Device Type | Easy Smart Gigabit PoE+ Switch |
|---|---|
| Network Ports | 16 × Gigabit RJ45 Ports |
| PoE Ports | 8 × IEEE 802.3af/at PoE+ Ports |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | Ports 1–8 |
| Total PoE Budget | 150W |
| PoE Functions | PoE Auto Recovery, Extend Mode |
| SMART FEATURES | |
|---|---|
| VLAN | Port-Based, 802.1Q, MTU VLAN |
| QoS | Port-Based / 802.1p / DSCP QoS |
| Monitoring | Port Mirroring, Cable Diagnostics, Loop Prevention |
| Multicast | IGMP Snooping V1/V2/V3 |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.3af / 802.3at |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Management | Web GUI & Easy Smart Configuration Utility |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount/Desktop Case |
| Cooling | Fanless Design |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 294 × 180 × 44 mm |
| Installation | Desktop / Rackmount |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link TL-SG1016PE is a 16-port Gigabit Easy Smart switch with 8 PoE+ ports and a 150W PoE budget. It supports VLAN, QoS, IGMP Snooping, PoE Auto Recovery, and web-based management for business and surveillance networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
