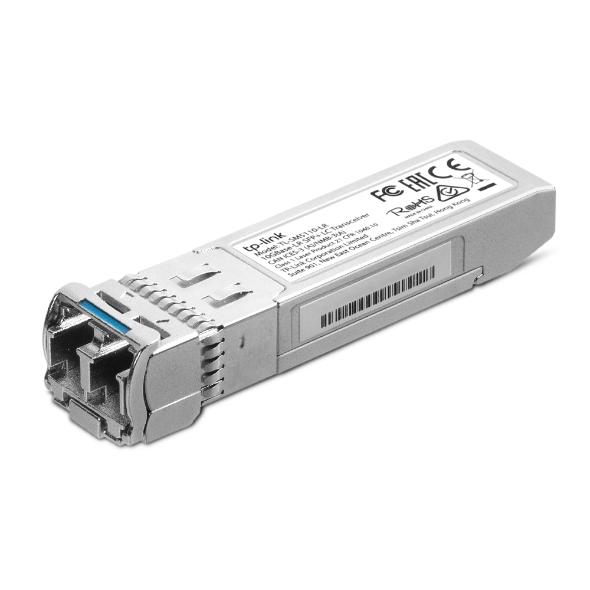

Specifications TP-Link TL-SM5110-LR
| Features | Specifications |
|---|---|
| Product Type | 10GBASE-LR SFP+ LC Transceiver |
| Model | TL-SM5110-LR |
| Data Rate | 10 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | 9/125 µm Single-Mode Fiber |
| Maximum Cable Distance | Up to 10 km |
| Connector Type | Duplex LC |
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Power Supply | 3.3V |
| Transmitter Type | DFB |
| Receiver Type | PIN-TIA |
| Digital Diagnostic Monitoring (DDM) | Supported |
| SFP+ MSA | Supported |
| Hot Swappable | Supported |
| Power Consumption | 0.858W at 10 Gbps |
| Dimensions (W × D × H) | 56.7 × 13.9 × 10.35 mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Storage Humidity | 5–90% RH, Non-condensing |
| Safety and Emission | FCC, CE |
Important: The TP-Link TL-SM5110-LR is a 10GBASE-LR SFP+ transceiver using 1310 nm single-mode fiber technology. It supports full-duplex 10Gbps Ethernet connections up to 10 km, along with DDM, SFP+ MSA compatibility and hot-swapping.
