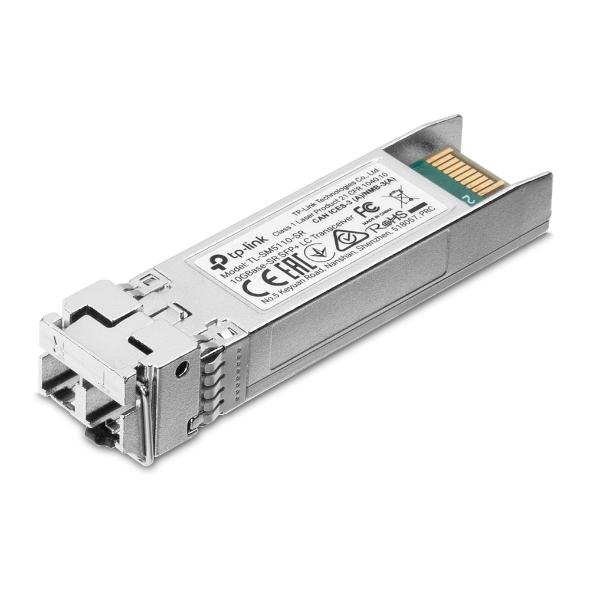

Specifications TP-Link TL-SM5110-SR
| Features | Specifications |
|---|---|
| Product Type | 10GBase-SR SFP+ LC Transceiver |
| Model | TL-SM5110-SR |
| Data Rate | 10 Gbps |
| Wavelength | 850 nm |
| Fiber Type | 50/125 µm or 62.5/125 µm Multi-mode Fiber |
| Maximum Cable Distance | Up to 300 m (50/125 µm Fiber) or 33 m (62.5/125 µm Fiber) |
| Connector Type | Duplex LC/UPC |
| Standards and Protocols | IEEE 802.3ae, TCP/IP and SFF-8472 |
| Power Supply | 3.3V |
| Digital Diagnostic Monitoring (DDM) | Supported |
| SFP+ MSA | Supported |
| Hot Swappable | Supported |
| Dimensions (W × D × H) | 61.3 × 14.5 × 12.2 mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Storage Humidity | 5–90% RH, Non-condensing |
| Safety and Emission | FCC, CE |
Important: The TP-Link TL-SM5110-SR is a 10GBASE-SR SFP+ transceiver using an 850 nm wavelength for multi-mode fiber connections. It supports DDM, SFP+ MSA and hot-swapping, with transmission distances of up to 300 meters using compatible OM3 fiber.
