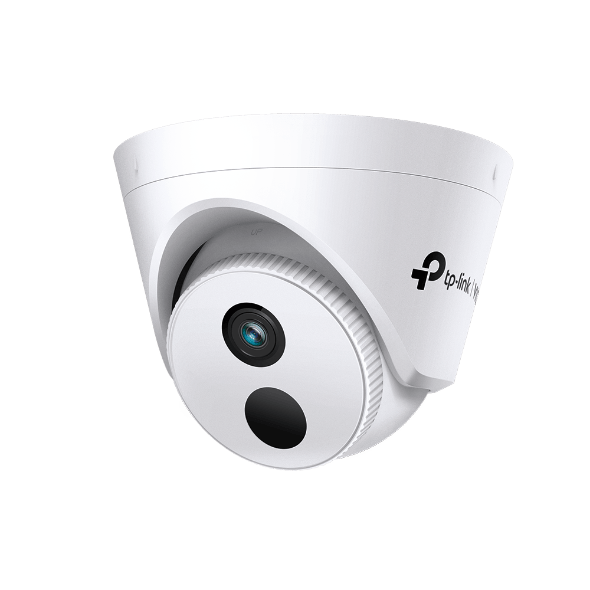

Specifications TP-Link VIGI C420I

Features	Description
Device Type	2MP Outdoor/Indoor Infrared Fixed Turret Network Camera
Brand / Series	TP-Link / VIGI Professional Surveillance Series
Image Sensor	1/3″ Progressive Scan CMOS
Maximum Resolution	2 Megapixel (1920 × 1080) @ 30 fps
Lens Options	2.8 mm or 4 mm fixed focal lens
Minimum Illumination	Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
IR Range	Up to 30m (98ft) Night Vision
Video Compression	H.265+ / H.265 / H.264+ / H.264
Protection	IP67 Weatherproof

CAMERA
Sensor	1/3″ Progressive Scan CMOS
Minimum Illumination	Color: 0.005 Lux, 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch
Shutter	Auto / Manual, 1/3 to 1/10000s
WDR	Digital WDR (DWDR)
S/N Ratio	>52 dB

LENS
Lens Type	Fixed Focal Lens
Focal Length	2.8 mm or 4 mm
Aperture	F1.6
Horizontal FOV	2.8mm: 107°, 4mm: 88°
Vertical FOV	2.8mm: 57°, 4mm: 46°
Diagonal FOV	2.8mm: 128°, 4mm: 105°

VIDEO
Video Compression	H.265+ / H.265 / H.264+ / H.264
Main Stream	1920 × 1080, 1280 × 720, 704 × 576, 640 × 480 @ 30fps
Sub Stream	704 × 576, 704 × 480, 352 × 288, 352 × 240 @ 30fps
Bit Rate Control	CBR / VBR
ROI	1 Fixed Region
Video Stream	Dual Streams

Digital Noise Reduction	3D DNR
BLC / HLC	Supported
Image Settings	Mirror, Saturation, Brightness, Contrast, Sharpness, White Balance, AGC adjustable by client software

SMART FEATURES
Smart Detection	Human & Vehicle Classification, Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Tampering Detection
Alarm Trigger	Video Tampering, Network Disconnection, IP Address Conflict
Method of Linkage	Trigger Notification, Snapshot, Video Recording

ILLUMINATOR
IR Range	Up to 30m
Wavelength	850nm
Light Control	Auto / Manual
Smart IR	Supported

STORAGE
Edge Storage	Not Supported (Model-dependent NVR recording)
Network Storage	NAS (NFS, SMB/CIFS)

NETWORK
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
ONVIF	Profile S
Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, RTCP, PPPoE, SMTP, UPnP
Simultaneous Live View	Up to 6 Channels
Security	Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

AUDIO & ALARM
Audio Input	Built-in Microphone (for audio monitoring)
Audio Output	None
Alarm Input	None
Alarm Output	None

POWER & PROTECTION
Power Supply	12V DC ± 10%, 5.5mm Coaxial Power Plug / PoE (802.3af/at, class 0)
Maximum Power Consumption	12V DC: Max 3W; PoE: Max 4W

PHYSICAL & ENVIRONMENT
Dimensions	Ø123 × 83 mm
Weight	0.195 kg
Operating Temperature	-30°C to 60°C
Operating Humidity	95% or less (non-condensing)

Note: The TP-Link VIGI C420I is a 2MP outdoor/indoor infrared fixed turret network camera engineered for dependable professional surveillance. It delivers crisp 2MP Full HD resolution at 30 fps, smart human and vehicle classification, a built-in microphone for real-time audio monitoring, and H.265+ smart compression to maximize storage efficiency.

Important: The VIGI C420I features 2MP resolution with a fixed focal lens option of 2.8mm or 4mm in a compact turret housing. It supports Smart Detection including human and vehicle classification, motion detection, and line-crossing to significantly minimize false alerts. Connectivity relies on a 10/100M Ethernet port supporting both 12V DC and PoE (802.3af/at). The unit is rated IP67 weatherproof and operates reliably in environments ranging from -30°C to 60°C.
