| Features |
Description |
| Product Type |
BE9300 Tri-Band Wi-Fi 7 Router |
| Wi-Fi Standard |
Wi-Fi 7 (IEEE 802.11be) |
| Total Wi-Fi Speed |
Up to 9328 Mbps |
| Wireless Bands |
Tri-Band: 2.4 GHz, 5 GHz, 6 GHz |
| Ethernet Ports |
1 × 2.5 Gbps WAN + 4 × 2.5 Gbps LAN |
| USB Port |
1 × USB 3.0 |
| Wireless |
| 2.4 GHz |
Up to 688 Mbps, IEEE 802.11be/ax/n/g/b |
| 5 GHz |
Up to 2880 Mbps, IEEE 802.11be/ax/ac/n/a |
| 6 GHz |
Up to 5760 Mbps, IEEE 802.11be/ax |
| Antennas |
6 × High-Performance Internal Antennas |
| MU-MIMO |
2 × 2 MU-MIMO |
| OFDMA |
Supported |
| Beamforming |
Supported |
| Channel Bandwidth |
Up to 320 MHz |
| Wi-Fi 7 Features |
| Multi-Link Operation |
MLO |
| 4K-QAM |
Supported |
| Multi-RUs |
Supported |
| 320 MHz Channel |
Supported |
| EasyMesh |
Supported |
| Network & Hardware |
| WAN Port |
1 × 2.5 Gbps |
| LAN Ports |
4 × 2.5 Gbps |
| USB |
1 × USB 3.0 |
| Protocols |
IPv4 / IPv6 |
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Working Modes |
Router Mode / Access Point Mode |
| Quality of Service |
QoS by Device |
| NAT Forwarding |
Port Forwarding, Port Triggering, DMZ, UPnP |
| Security & Management |
| Wi-Fi Security |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1X) |
| Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Security Service |
TP-Link HomeShield |
| Guest Network |
2.4 GHz, 5 GHz and 6 GHz Guest Networks |
| Parental Controls |
HomeShield Parental Controls |
| Management |
TP-Link Tether App / Web Interface |
| Cloud Service |
TP-Link ID, DDNS, Auto Firmware Upgrade |
| VPN |
| VPN Server |
OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client |
OpenVPN, PPTP, L2TP, WireGuard |

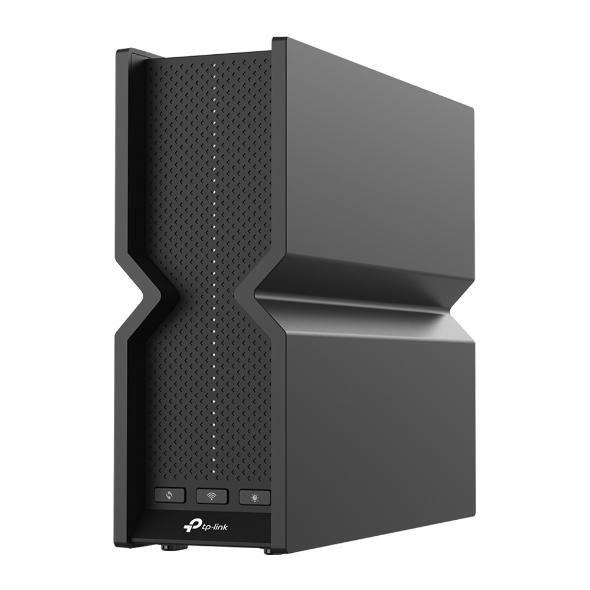

Note: Archer BE550 is a BE9300 Tri-Band Wi-Fi 7 router designed for multi-gigabit home networks, featuring 2.5 Gbps WAN/LAN connectivity, 320 MHz channels, MLO, 4K-QAM and EasyMesh support.
Important: Specifications may vary by hardware version and region. Archer BE550 V1 uses 574 Mbps on 2.4 GHz, while the current V2 specification supports up to 688 Mbps on 2.4 GHz.
