| Features |
Description |
| Product Type |
BE22000 Tri-Band Wi-Fi 7 Whole Home Mesh System |
| Wi-Fi Standard |
Wi-Fi 7 (IEEE 802.11be) |
| Total Wi-Fi Speed |
Up to 22 Gbps |
| Wireless Bands |
Tri-Band: 2.4 GHz, 5 GHz and 6 GHz |
| Ethernet Ports |
1 × 10 Gbps WAN/LAN, 1 × 10 Gbps SFP+/RJ45 Combo WAN/LAN, 2 × 2.5 Gbps WAN/LAN |
| USB Port |
1 × USB 3.0 per Unit |
| Mesh Technology |
TP-Link Mesh with Wireless and Ethernet Backhaul |
| Wireless |
| 2.4 GHz |
Up to 1376 Mbps |
| 5 GHz |
Up to 8647 Mbps |
| 6 GHz |
Up to 11530 Mbps |
| Antennas |
8 × High-Gain Internal Antennas |
| Streams |
12 Streams |
| MU-MIMO |
4 × 4 MU-MIMO |
| OFDMA |
Supported |
| Beamforming |
Supported |
| Wi-Fi Capacity |
Connects Over 200 Devices |
| Wi-Fi 7 Features |
| Multi-Link Operation |
MLO |
| Channel Bandwidth |
Up to 320 MHz |
| 4K-QAM |
Supported |
| Multi-RU |
Supported |
| BSS Coloring |
Supported |
| AI-Driven Mesh |
Supported |
| Seamless Roaming |
Supported |
| Network & Hardware |
| 10G Ethernet |
1 × 10 Gbps WAN/LAN |
| 10G Combo Port |
1 × 10 Gbps SFP+/RJ45 Combo WAN/LAN |
| 2.5G Ethernet |
2 × 2.5 Gbps WAN/LAN |
| Port Type |
WAN/LAN Auto-Sensing |
| SFP+ |
10 Gbps Fiber Connectivity |
| USB |
1 × USB 3.0 |
| USB Functions |
FTP Server, Media Server, Samba Server |
| Working Modes |
Router Mode / Access Point Mode |
| Backhaul |
Wireless / Ethernet Backhaul |
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Protocols |
IPv4 / IPv6 |
| Security & Management |
| Wireless Security |
WPA-Personal, WPA2-Personal, WPA3-Personal |
| Network Security |
SPI Firewall, Access Control |
| Security Service |
TP-Link HomeShield |
| IoT Protection |
Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention, DDoS Attack Prevention |
| Guest Network |
2.4 GHz, 5 GHz and 6 GHz Guest Networks |
| Parental Controls |
HomeShield Parental Controls |
| Management |
Deco App / Web Management |
| Cloud Service |
TP-Link ID, OTA Firmware Upgrade, DDNS |
| Voice Control |
Amazon Alexa / Google Assistant |
| VPN & Network |
| VPN Server |
OpenVPN, PPTP, L2TP/IPSec, WireGuard |
| VPN Client |
OpenVPN, PPTP, L2TP/IPSec, WireGuard |
| NAT Forwarding |
Port Forwarding, UPnP |
| IPTV |
IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP |
Address Reservation, DHCP Client List, DHCP Server |
| QoS |
HomeShield QoS / QoS by Device |
| General |
| Buttons |
1 × Reset Button, 1 × WPS Button |
| Power Consumption |
Max. 51 W |
| Power Adapter |
Input: 100-240V AC, 50/60Hz 2A; Output: 12V DC / 4.5A |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Dimensions |
118 × 118 × 198 mm |

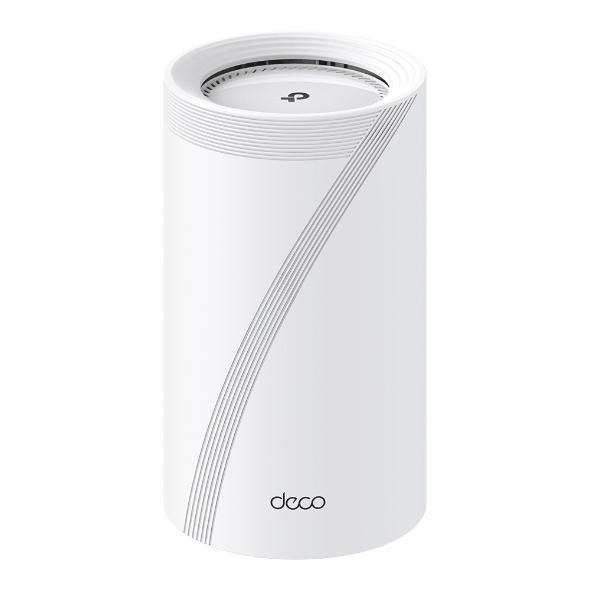

Note: Deco BE85 is a BE22000 Tri-Band Wi-Fi 7 Mesh System designed for high-performance whole-home networking, featuring dual 10 Gbps connectivity, 2.5 Gbps ports, 10 Gbps SFP+ fiber support, MLO, 320 MHz channels and combined wireless/wired backhaul.
Important: Actual wireless performance and maximum connection speeds depend on client-device compatibility, network conditions, environmental factors and regional regulations. The 320 MHz bandwidth is available on the 6 GHz band and may be restricted in some regions.
